Hotsy 1700 Series Operating Instructions And Parts Manual

1700 SERIES PRESSURE WASHER OPERATOR’S MANUAL
19
Hotsy 1700 • 97-6419 • Rev. 7/06
ITEM PART NO. DESCRIPTION QTY
6 860447 Spray Gun, Shut-off,
Series 2000 1
7 3-12021 Detergent Injector, Non-Adjust
3-5 GPM 1
8 875582 Strainer, 1/4" Hose Barb 1
9 826176 Coupler, 3/8" Female 1
728734  Quick Coupler O-Ring, Large 1
10 823988 Clamp, Hose, UNI .46 - .54 2
11 961506 Tube, 1/4"x1/2" Clear Vinyl 6 ft.
 Not Shown
ITEM PART NO. DESCRIPTION QTY
1 826170 Coupler, 1/4" Male 1
728733  Quick Coupler O-Ring, Small 1
2 4-06540 Nozzle Only, 1/8", Soap 1
3 878920 Wand, SS, VP, AL344
w/Coupler & Soap Nozzle 1
4 See Nozzles pages 12-13
5 707438 Hose, 3/8" x 50', 1 Wire, Blue w/
Coupler 1

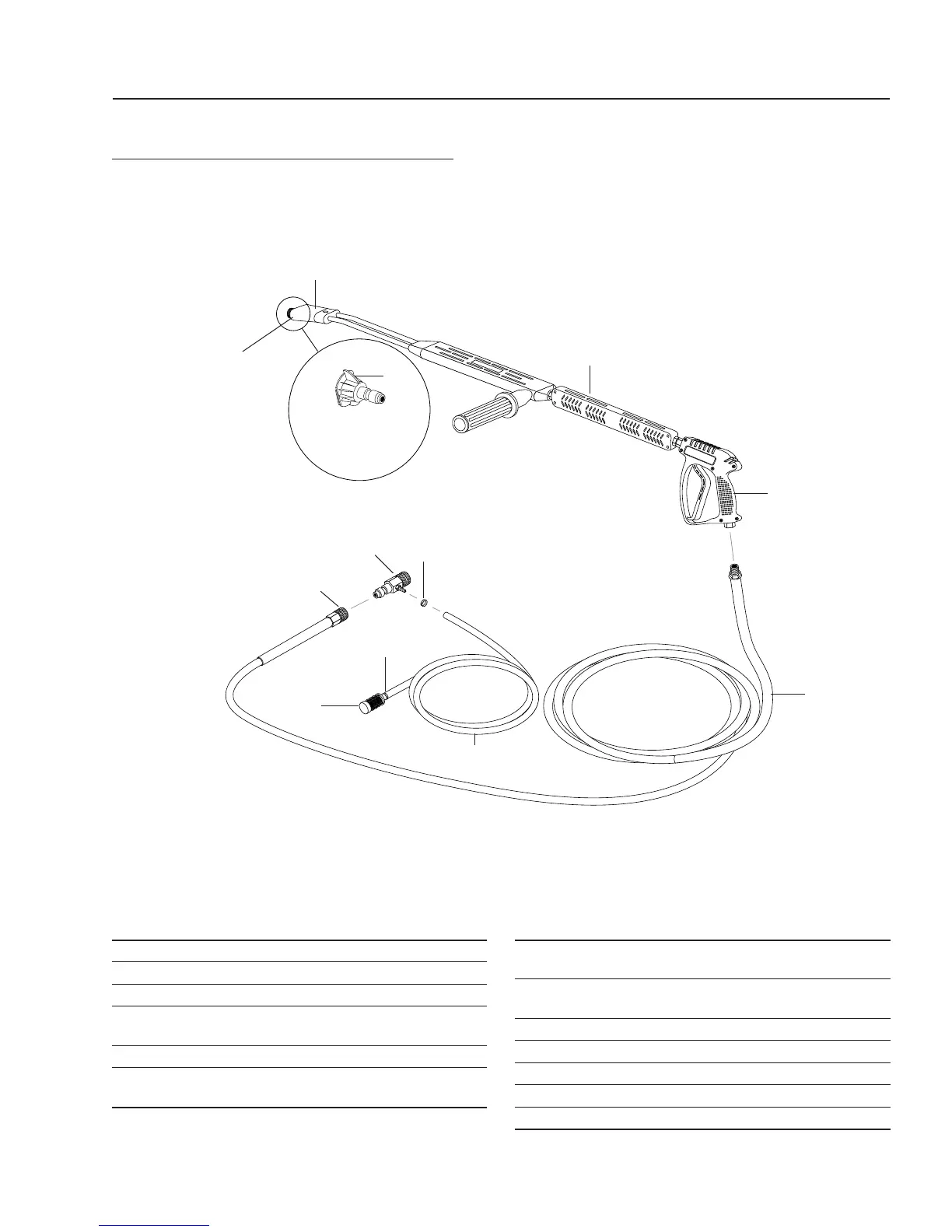

HOSE & SPRAY GUN ASSEMBLY
6
5
3
2
1
4
8
High Pressure
Nozzle
7
10
11
9
10

Hotsy 1700 Series Specifications

General

Brand	Hotsy
Model	1700 Series
Category	Pressure Washer
Language	English
