Hotsy 1710 User Manual

32

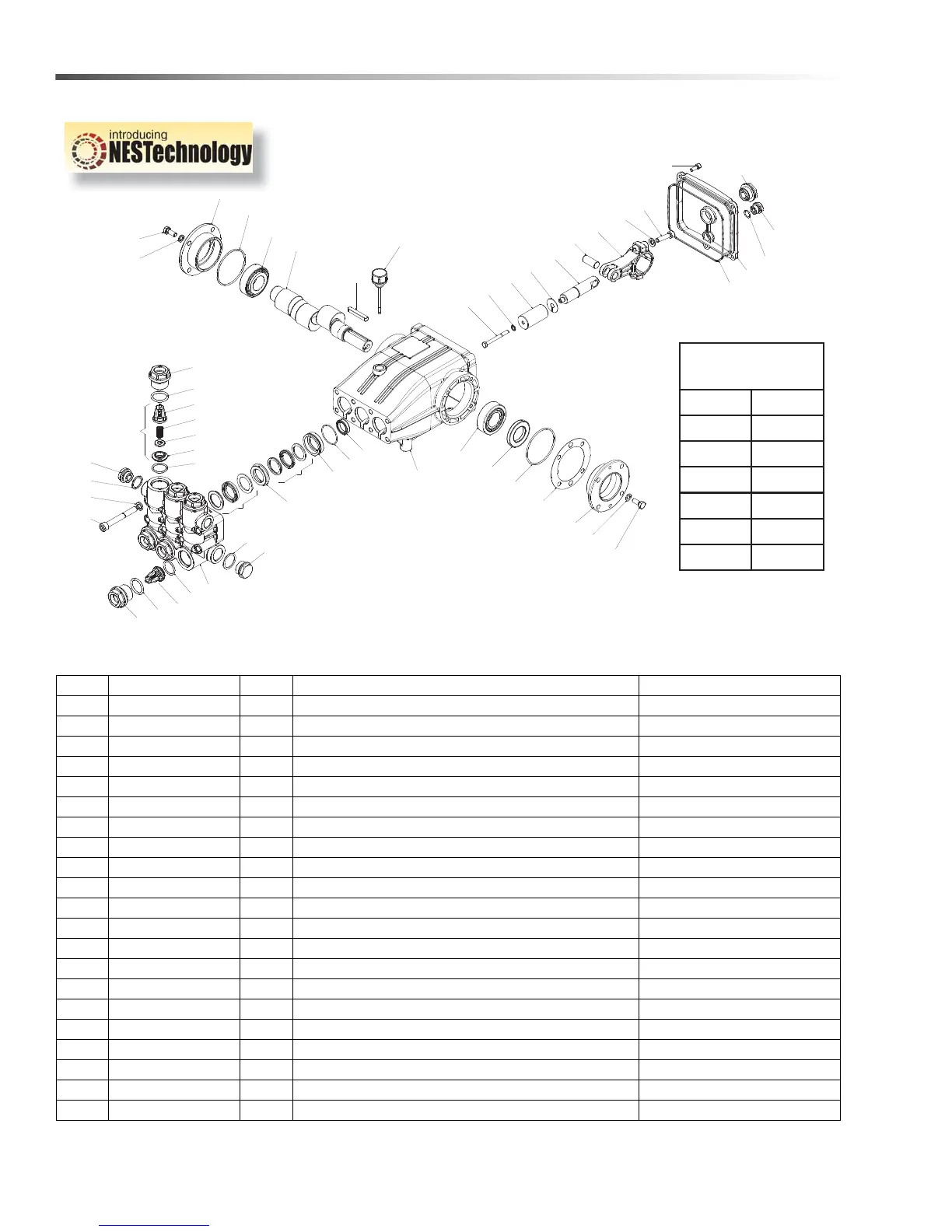

HX.2 Pump Series Exploded View
REF PART NO. QTY DESCRIPTION NOTES
1 8.752-825.0 1 CRANKCASE
2 - 3 PLUNGER OIL SEAL SEE KIT BELOW
3 - 3 O-RING Ø1.78 X 37.82 SEE KIT BELOW
4 - 3 PRESSURE RING SEE KIT BELOW
5 - 3 U-SEAL SEE KIT BELOW
6 - 3 INTERMEDIATE RING SEE KIT BELOW
7 - 3 U-SEAL SEE KIT BELOW
8 9.803-285.0 1 BRASS PLUG, G3/4
9 9.803-286.0 1 COPPER WASHER 3/4
10 8.752-831.0 1 MANIFOLD HOUSING Ø22/Ø20/
11 8.752-836.0 6 O-RING Ø2.62 X 21.89
12 - 6 VALVE ASSEMBLY SEE KIT BELOW
13 9.803-287.0 6 O-RING Ø3.53 X 25.80-134
14 8.752-855.0 6 VALVE PLUG
15 8.752-833.0 8 MANIFOLD STUD BOLT
16 9.802-890.0 8 LOCK WASHER
17 9.803-199.0 1 COPPER WASHER 1/2
18 9.802-926.0 1 BRASS PLUG 1/2
19 - 6 VALVE SEAT SEE KIT BELOW
20 - 6 VALVE PLATE SEE KIT BELOW
21 - 6 VALVE SPRING SEE KIT BELOW
TORQUE SPECS
ITEM # FT. LBS.
14 95
15 45
23 8
34 10
42 30
48 8
5
7
12
12
Pompe XLT serie 2011
HAWK
XLT3020S
XLT3816S
XLT1830
XLT2230
XLT2530
XLT2520
XLT2730
XLT3025
XLT3020
XLT3325
XLT3517
XLT4017
XLT4014
XLT4317
XLT5015
XLT5415
23
24
25
26
27
28
29
30
27
31
26
32
33
24
23
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
2
3
4
6
8
9
10
13
14
15
16
17
18
19
20
21
22
13
14
11
11
1
Hotsy 1700 Operator’s Manual 8.914-380.0 - W
