Hotsy 1710 User Manual

34

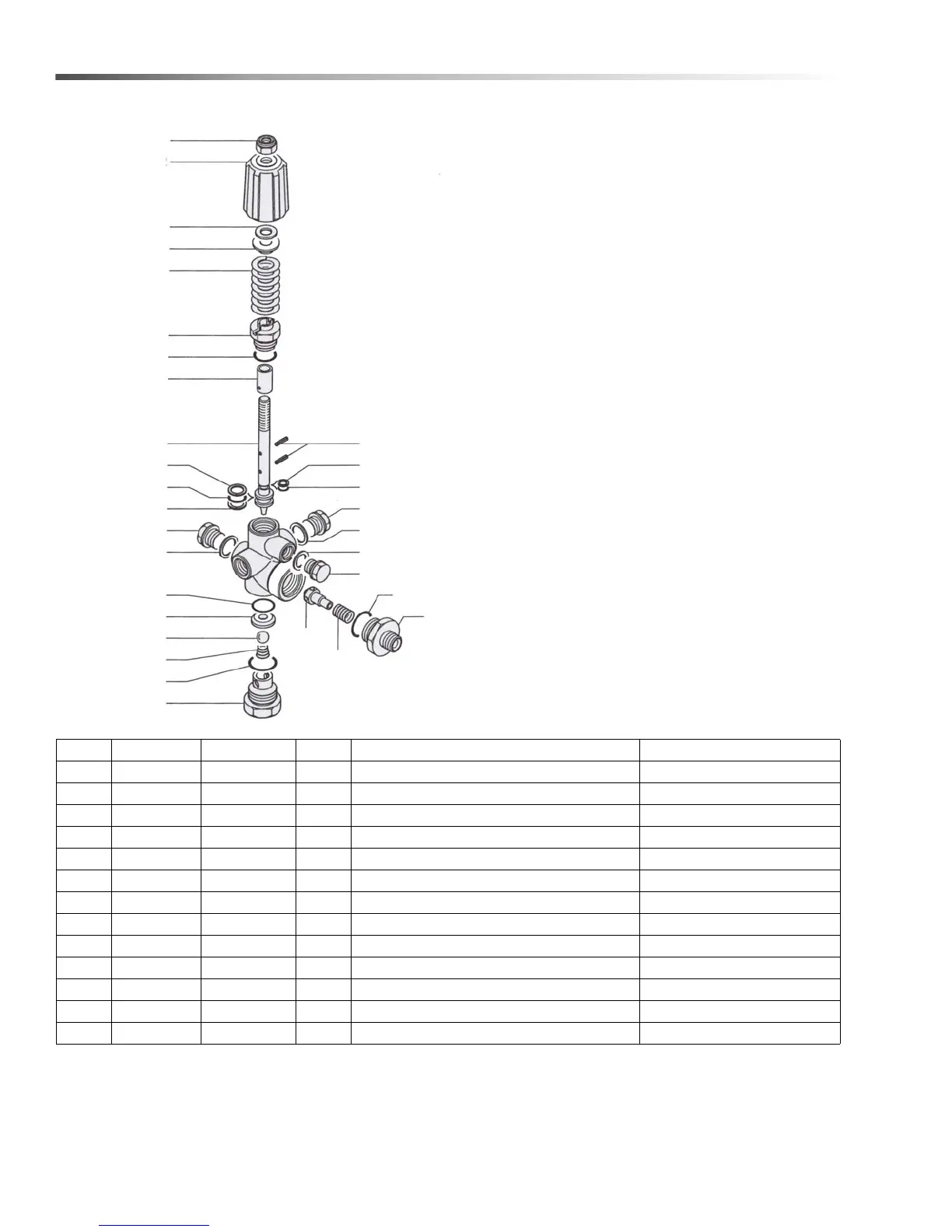

VBR Unloader Valve Exploded View
REF REF NO. PART NO. QTY DESCRIPTION NOTES
1 70-030400 8.717-192.0 1 NUT, LOCKING
2 70-090507 8.717-269.0 1 HANDLE, RED
- 70-090506 8.931-691.0 1 HANDLE, YELLOW
- 70-090505 8.932-690.0 1 HANDLE, GREEN
- 70-090508 8.932-692.0 1 HANDLE, BLUE
3 70-140021 8.932-697.0 1 SPACE, ANTI-FRICTION KIT “D”
4 70-120204 8.932-693.0 1 PLATE KIT “D”
5 70-090024 8.932-689.0 1 SPRING KIT “D”
6 70-140712 8.717-403.0 1 STEM NUT KIT “D”
7 70-060119 9.803-191.0 1 O-RING, NUT KIT “C”
8 70-080300 8.932-684.0 1 SPACER, RED
- 70-080301 8.932-683.0 1 SPACER, YELLOW
- 70-080302 8.932-686.0 1 SPACER, GREEN
1
2
7
13
18
19
16
12
6
11
17
15
10
5
14
20
4
9
3
8
24
21
23
22
25
12
26
13
27
19
28
Kit "A" 70-262809 8.717-676.0 Outlet Kit
Kit "B" 70-261501 8.717-654.0 Inlet Kit
Kit "C" 70-261502 8.717-655.0
Stem Seal Kit
Kit "D" 70-261504 8.717-656.0 Stem Kit
8.715-503.0
8.715-504.0
Hotsy 1700 Operator’s Manual 8.914-380.0 - W
