Rear Cover
Description Spare part number
Rear cover 669985-001
Remove the main rear cover to access internal components. The cover is secured by three Phillips
screws – two captive in the bottom corners, one non-captive above the stand.
To remove the rear cover:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 37).

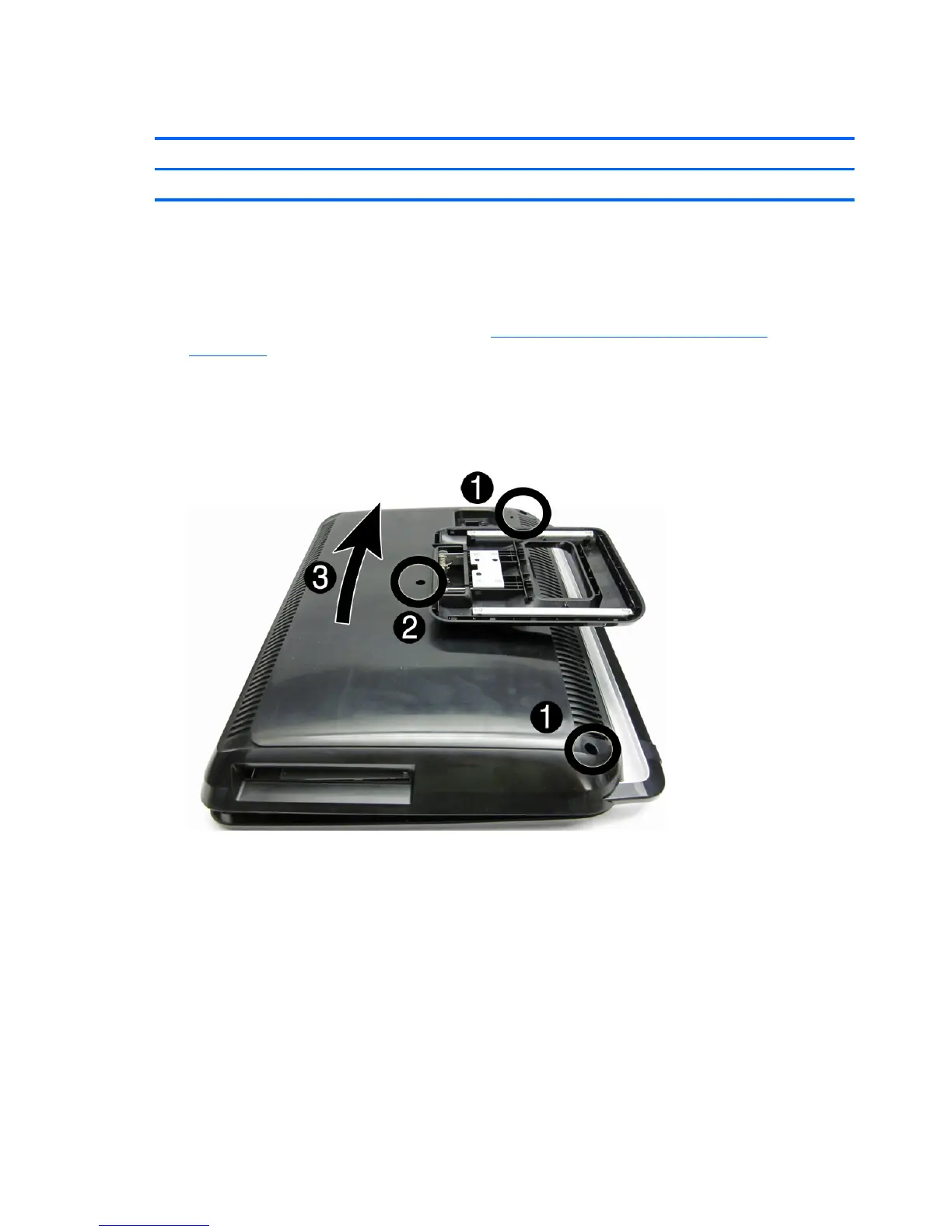

2. Loosen the captive two Phillips screws (1) that secure the cover to the computer.
3. Remove the non-captive Phillips screw (2) that secures the cover to the computer.
4. Lift the cover off the computer (3).
To replace the rear cover, reverse the removal procedures.
38 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
