Backlight Controller
Description Spare part number
Backlight controller 710541-001
The backlight controller is located on the left side of the computer. It is secured with two screws and
has three connectors.
To remove the backlight controller:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 37).
2. Remove the rear cover (see
Rear Cover on page 38).

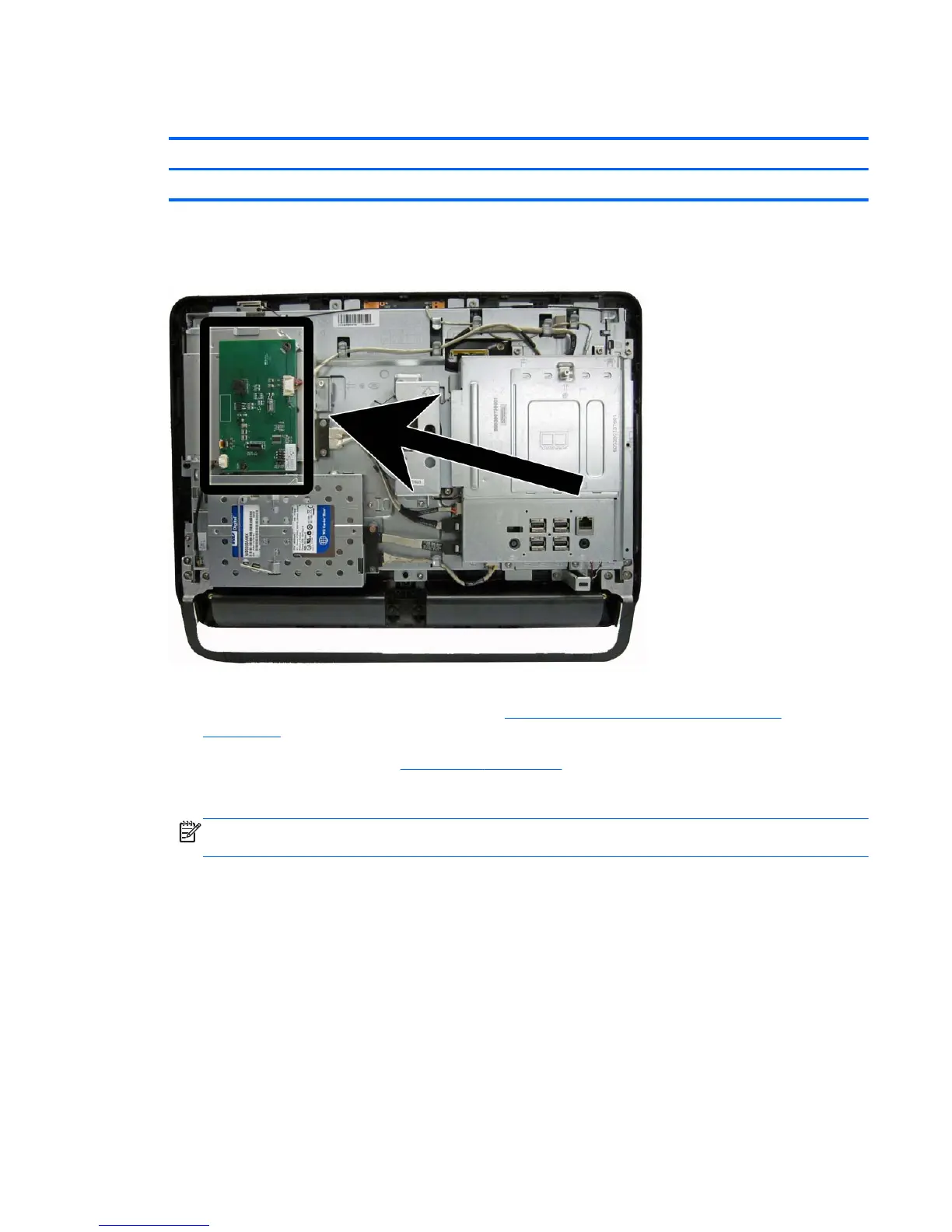

3. Disconnect the three cables from the backlight controller board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
4. Remove the two screws (2) that secure the board to the computer.
Backlight Controller 51
