Battery
Table 6-2 Battery description and part number
Description Spare part number
Battery (3-cell, 48 Whr) L11119-855
Before removing the battery, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the optical drive (see Optical drive on page 33).
3. Remove the bottom cover (see Bottom cover on page 37).
Remove the battery:

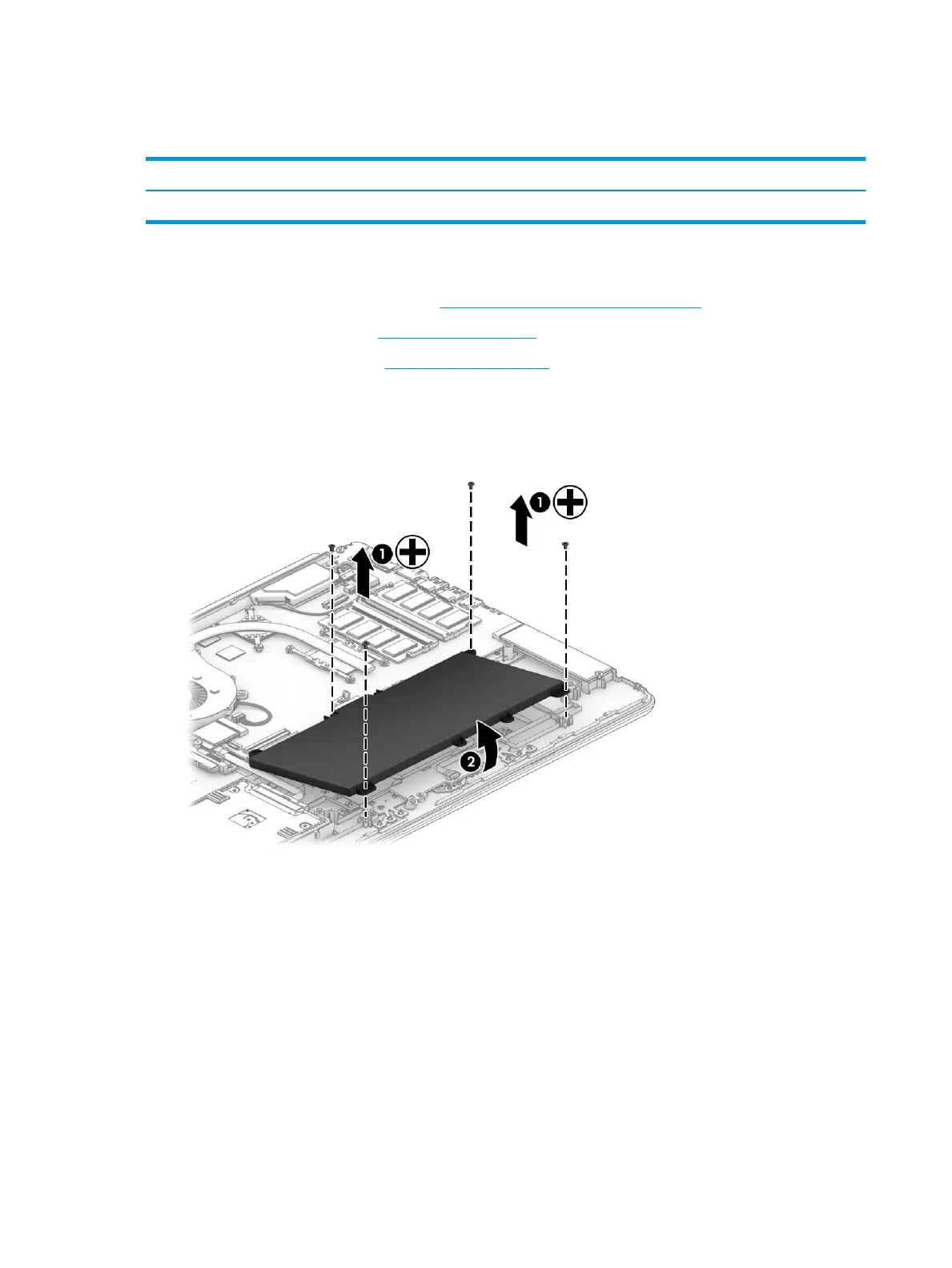

1. Remove the four Phillips M2.0 × 3.0 screws (1) that secure the battery to the computer.
2. Remove the battery from the computer (2).
Reverse this procedure to install the battery.
When installing the battery, be sure to install screws in the proper locations. The following image shows the
locations around the battery that have holes but do NOT require screws.
40 Chapter 6 Removal and replacement procedures for authorized service provider parts
