Power connector cable
Description Spare part number
Power connector cable 802488-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 23).
5. Remove the memory cover (see
Memory cover on page 24).
6. Remove the bottom cover (see
Base enclosure on page 26).
7. Remove the system board (see
System board on page 37).

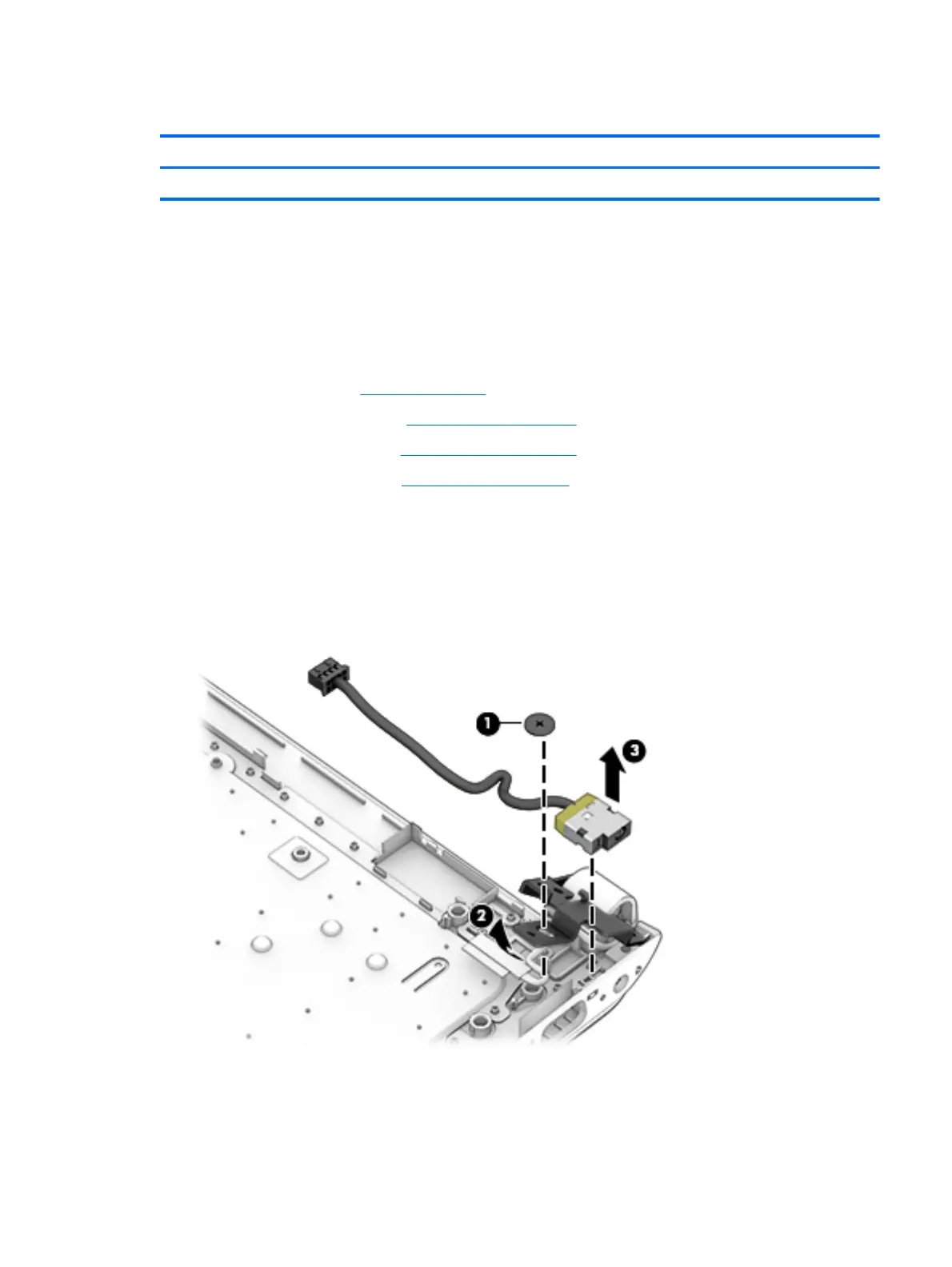

Remove the power connector cable:
1. Remove the Phillips broadhead PM2.5×3.0 screw (1) that secures the display hinge and power
connector.
2. Rotate the display hinge upward to gain access to the power connector (2).
3. Remove the power connector and cable from the computer (3).
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
