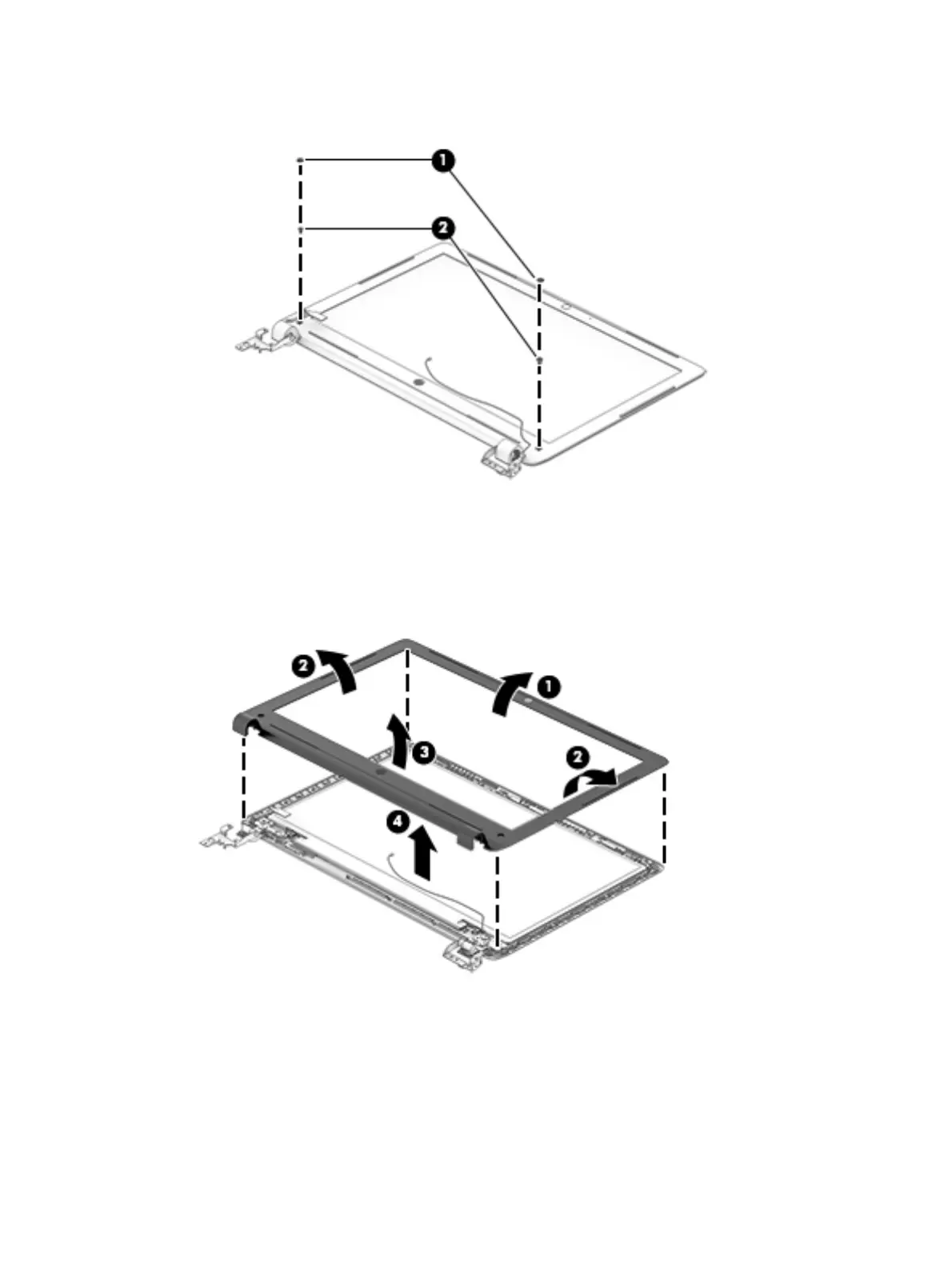

b. Remove the two Phillips PM2.5×4.0 screws (2) that secure the display bezel to the
display assembly.
c. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of
the display bezel until the bezel disengages from the display enclosure.
d. Remove the display bezel (4).
The display bezel is available using spare part number 805099-001 for models with a webcam and
805100-001 for models without a webcam.
6. If it is necessary to replace the webcam/microphone module:
a. Detach the webcam/microphone module (1) from the display enclosure. (The webcam/
microphone module is attached to the display enclosure with double-sided adhesive.)
Component replacement procedures 43
