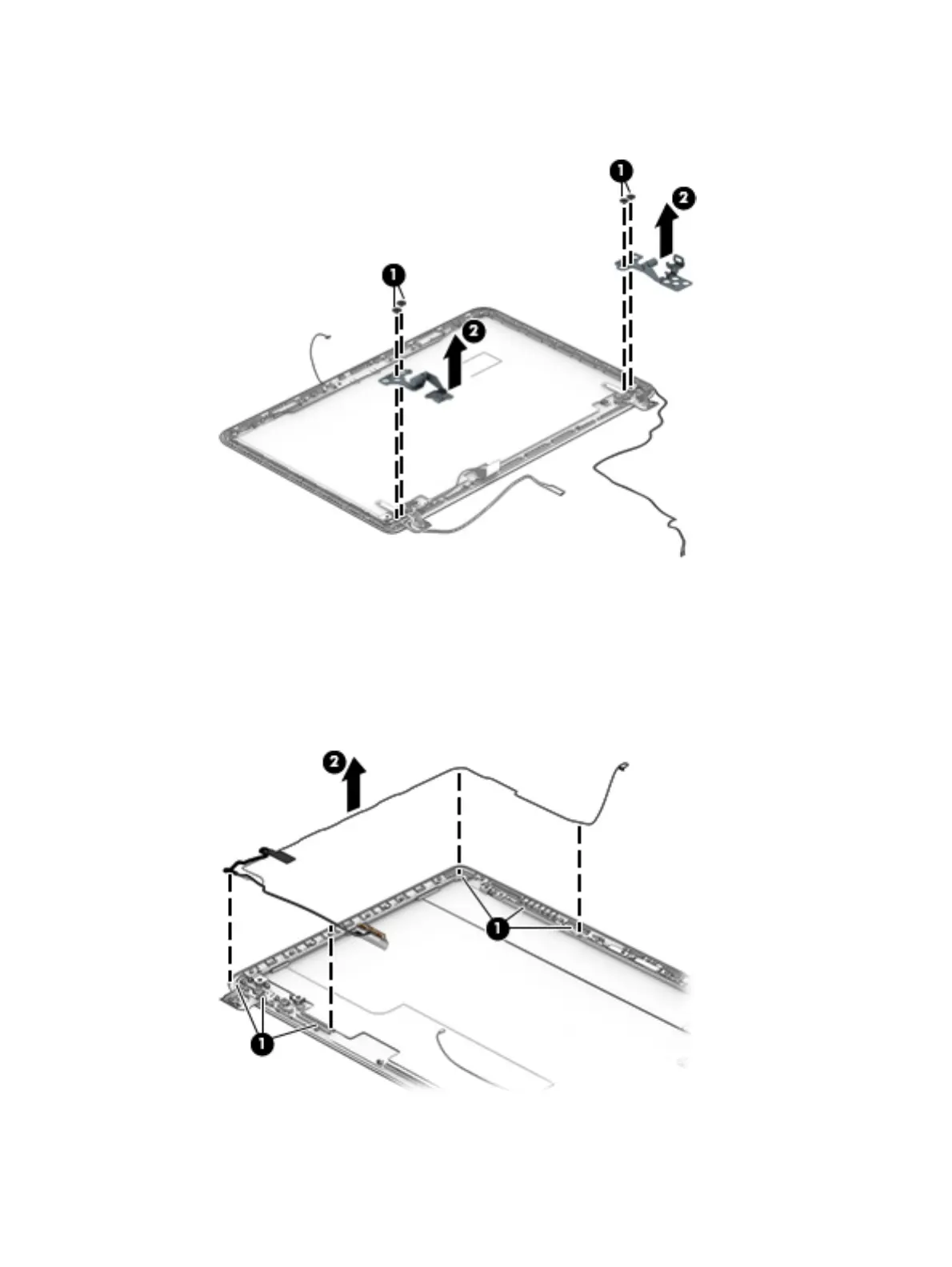

b. Remove the display hinges (2).
The display hinges are included in the Display Hinge Kit, spare part number 802485-001.
9. If it is necessary to replace the display cable:
a. Release the cable from the clips (1) and routing channel built into the top, right, and bottom edges
of the display enclosure.
b. Remove the display cable from the display enclosure (2).
The display cable is available using spare part number 802483-001 for models with a webcam and
805102-001 for models with out a webcam.
10. If it is necessary to replace the WLAN antenna cables and transceivers:
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
