20
HDMI Connector repair- J2

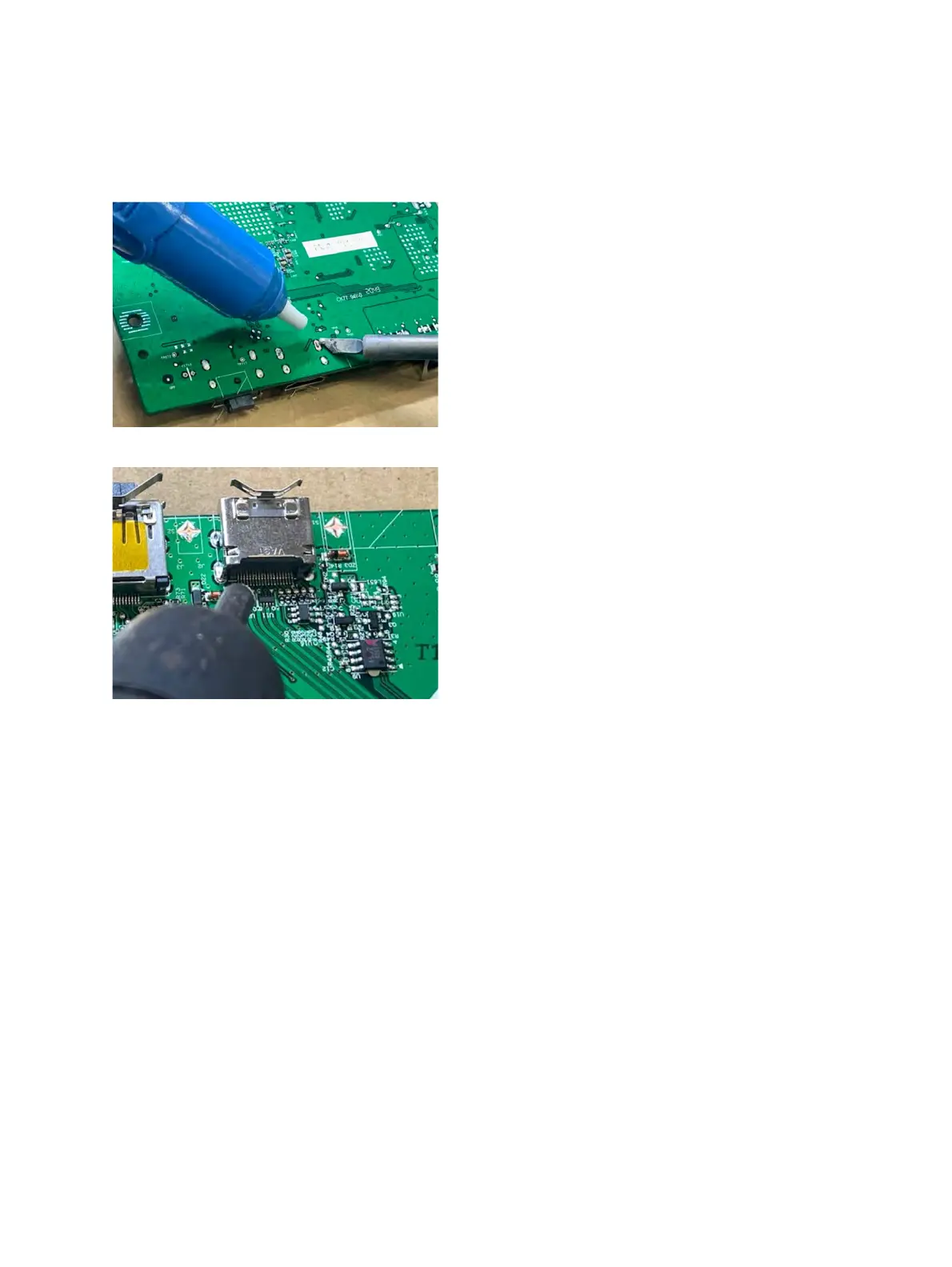

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from
one of the pin.
2) Use a hot air gun to melt the solder on the pins
3). Lift J2 from the PCB
4). Place new component on the location, and must check it can match PCB footprint
5). Soldering the new component by solder iron
6). Please must stick a gasket on the Shielding. Find the procedure on page 22.
