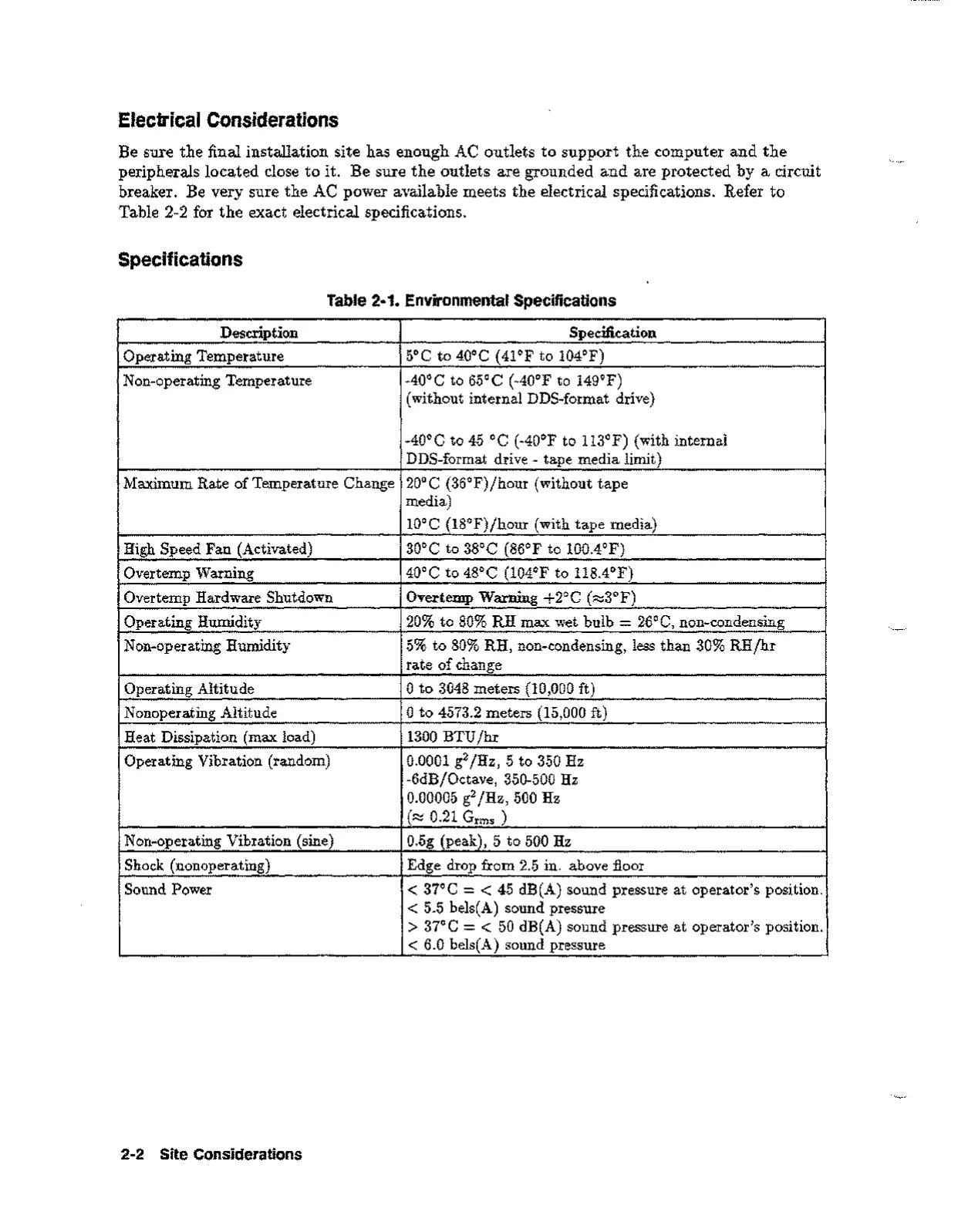

Electrical Considerations
Be sure the final installation site has enough AC outlets to support the computer and the
peripherals located close to
it.
Be sure the outlets are grounded and are protected by a circuit
breaker. Be very sure the AC power available meets the electrical specifications. Refer to
Table 2-2 for the exact electrical specifications.
Specifications
Table 2·1. Environmental Specifications
Description Specification
Operating Temperature 5°C to 40°C (41°F to 104°F)
Non-operating Temperature -40°C to 65°C (-40°F to 149°F)
(without internal DDS-format drive)
-40°C to 45°C (-40°F to 113°F) (with internal
DDS-format drive - tape media limit)
Maximum Rate of Temperature Change
20°C (36°F)/hour (without tape
media)
lOoC (18°F)/hour (with tape media)
High Speed Fan (Activated) 30°C to 38°C (86°F to 100.4°F)
Overtemp Warning
40°C to 48°C (104°F to 118.4°F)
Overtemp Hardware Shutdown
Overtemp Warning +2°C (~3°F)
Operating Humidity
20% to 80% RH max wet bulb
=
26°C, non-condensing
Non-operating Humidity 5% to 80% RH, non-condensing, less than 30% RH/hr
rate of change
Operating Altitude
°
to 3048 meters (10,000 ft)
Nonoperating Altitude
°
to 4573.2 meters (15,000 ft)
Heat Dissipation (max load)
1300 BTU/hr
Operating Vibration (random) 0.0001 g2/Hz, 5 to 350 Hz
-6dB/Octave, 350-500 Hz
0.00005 g2/Hz, 500 Hz
(~ 0.21 G
rms
)
Non-operating Vibration (sine)
0.5g (peak), 5 to 500 Hz
Shock (nonoperating) Edge drop from 2.5 in. above floor
Sound Power
< 37°C
=
< 45 dB(A) sound pressure at operator's position.
< 5.5 bels(A) sound pressure
> 37°C
=
< 50 dB(A) sound pressure at operator's position.
< 6.0 bels(A) sound pressure
2-2 Site Considerations
