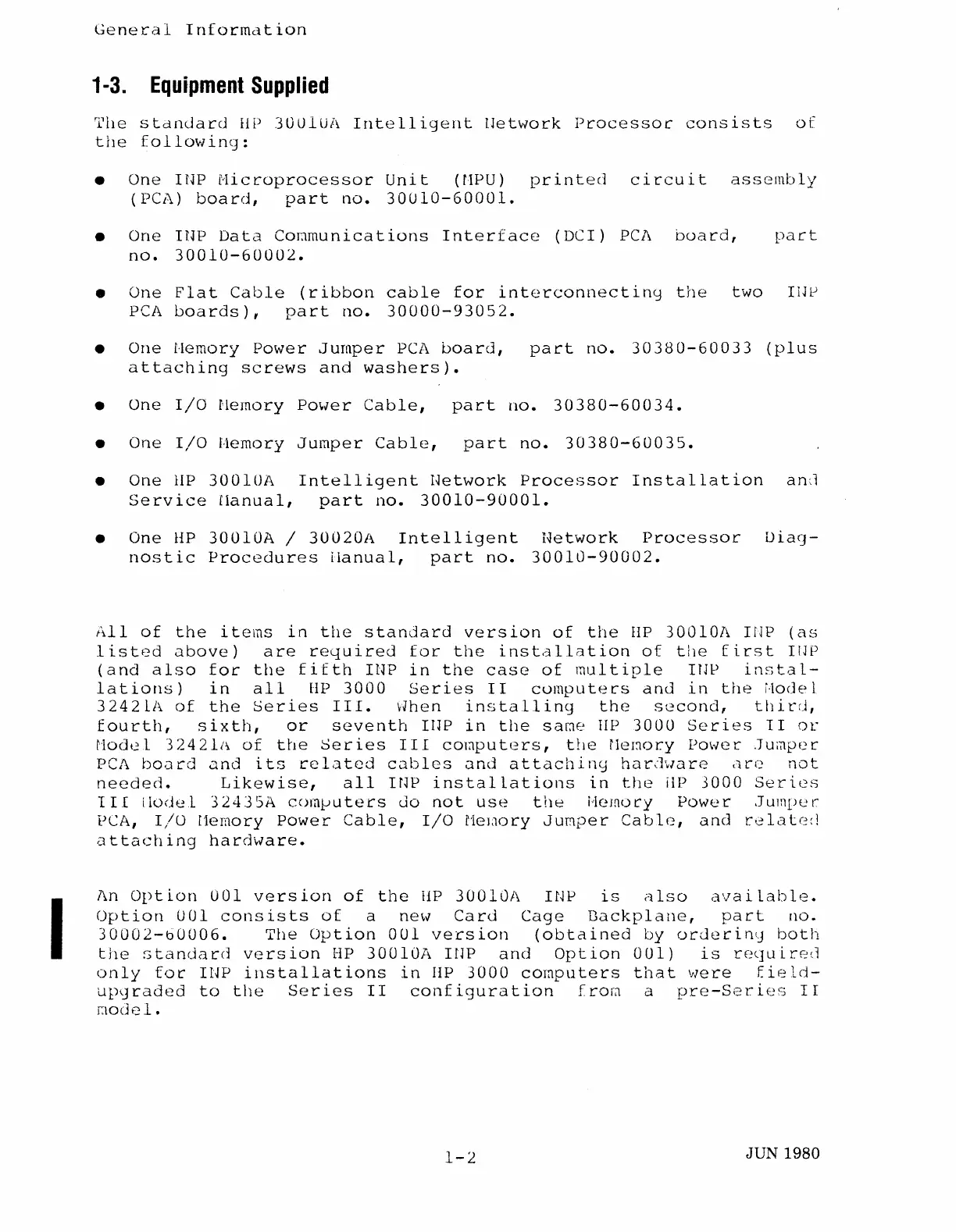

HP 3000 Series Installation And Service Manual

I
General Information
1-3. Equipment Supplied
The stdndard HP 3001UA Intelligent lletwork Processor consists of
the following:
• One IrJP Mict'"oprocessor Unit (rIPU) printed circuit assembly
(PCA) board, part no. 30Ul0-60001.
• One IUP Data Cor.1munications Interface ( DCI) PCA board,
no. 30010-60002.
pact
• One Flat Cable (ribbon cable for interconnecting the two IiJP
PCA boards), part no. 30000-93052.
• One tlemory Power Jumper PCA board, part no. 30380-60033 (plus
attaching screws and washers).
• One I/O nemory Power Cable, part no. 30380-60034.
• One I/O Memory Jumper Cable, part no. 30380-60035.
• One HP 30010A Intelligent lJetwork Processor Installation anJ
Service flanual, part no. 30010-90001.
•
One HP 30010A / 30020A Intelligent
nostic Procedures ilanual, part no.
Network Processor
30010-90002.
Oiag-
All of the items in the standard version of the HP 30010A HJP (as
listed above) are required for the installation of the first IlJP
(and also for the fifth INP in the case of multiple ITJP in::-;tal-
lations) in all HP 3000 Series II computer-s and in the r-todel
3 2 4 2 l A of the Ser i es I I I. vJ hen i n st a 11 in g the s 2 con d, th i rd,
fourth, sixth, or seventh IIJP in the sar:-ie HP 3000 Series II or
Modt..:l 324211\ of the Series III co1aputers, the rlenory Power .Ju;~per
PCA bo.Jcd and its celated cables .:rnd attaching har;1ware arc: not
needed. Likewise, all IfJP installations in the liP 3000 Series
III llodel 32435A comJ:.Juters Jo not use th~:: Hernory Power .Jurnpe1-:-
PCA, I/O r1ernory Power Cable, I/O f'le1aory Jumper Cable, and r.t:;latc;d
attaching hardware.
An Option 001 version of the HP 300101\ INP is also available.
Option 001 consists of a new Card Cage Dackplane, part no.
30002-ti0006. rrhe Option 001 version (obtained by ordecin
1
J both
the standacd version HP 300101\ IlJP and Option 001) is requLr.r::r.1
only foi:- IUP installations in HP 3000 computers that were Eield-
up9raded to the Series II configuration fror;i a pre-Serie~:J II
nod el.
1-2
JUN 1980
