Installation
c. Remove the two screws on the left upper and lower corners of
the power supply. Mount the Memory Power Jumper PCA board
(part no. 30380-60033) on the left edge of the power supply,
using the two longer screws, two flat washers, and two lock-
washers supplied with the jumper board. (Refer to figure
2-5.)
NOTE
If the location of the cable clamp brace
interferes with mounting the jumper board
on the power supply , the cable clamp
brace can be loosened and slid either up
or down on its mounting rails.
d. Unplug the existing cable connector from receptacle J2 on the
power supply, and plug it into receptacle J7 on the newly
attached jumper board. (Do not remove the other plugs in J3,
J4, and JS.)
J3 J4

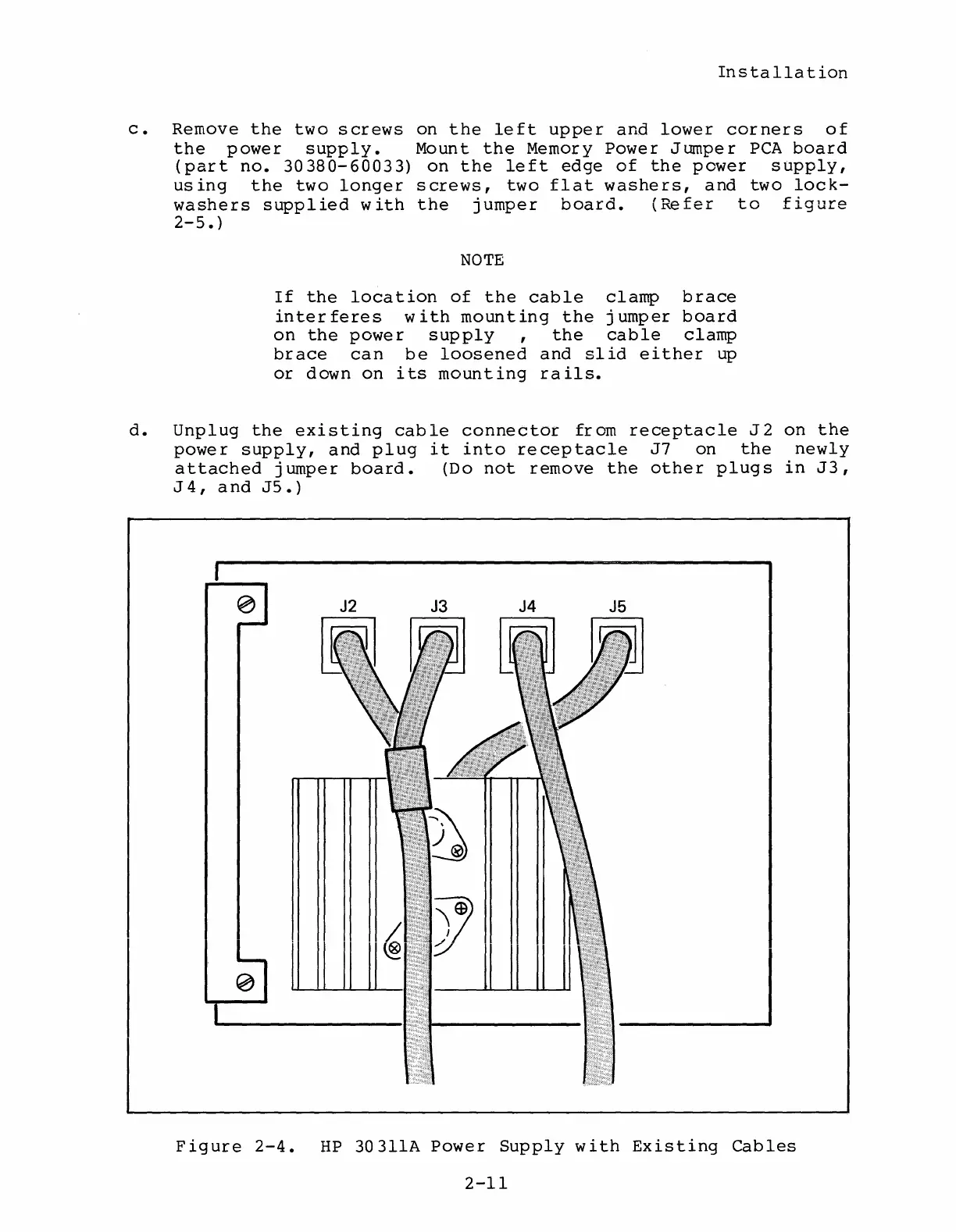

Figure 2-4. HP 30311A Power Supply with Existing Cables
2-11
