Installation

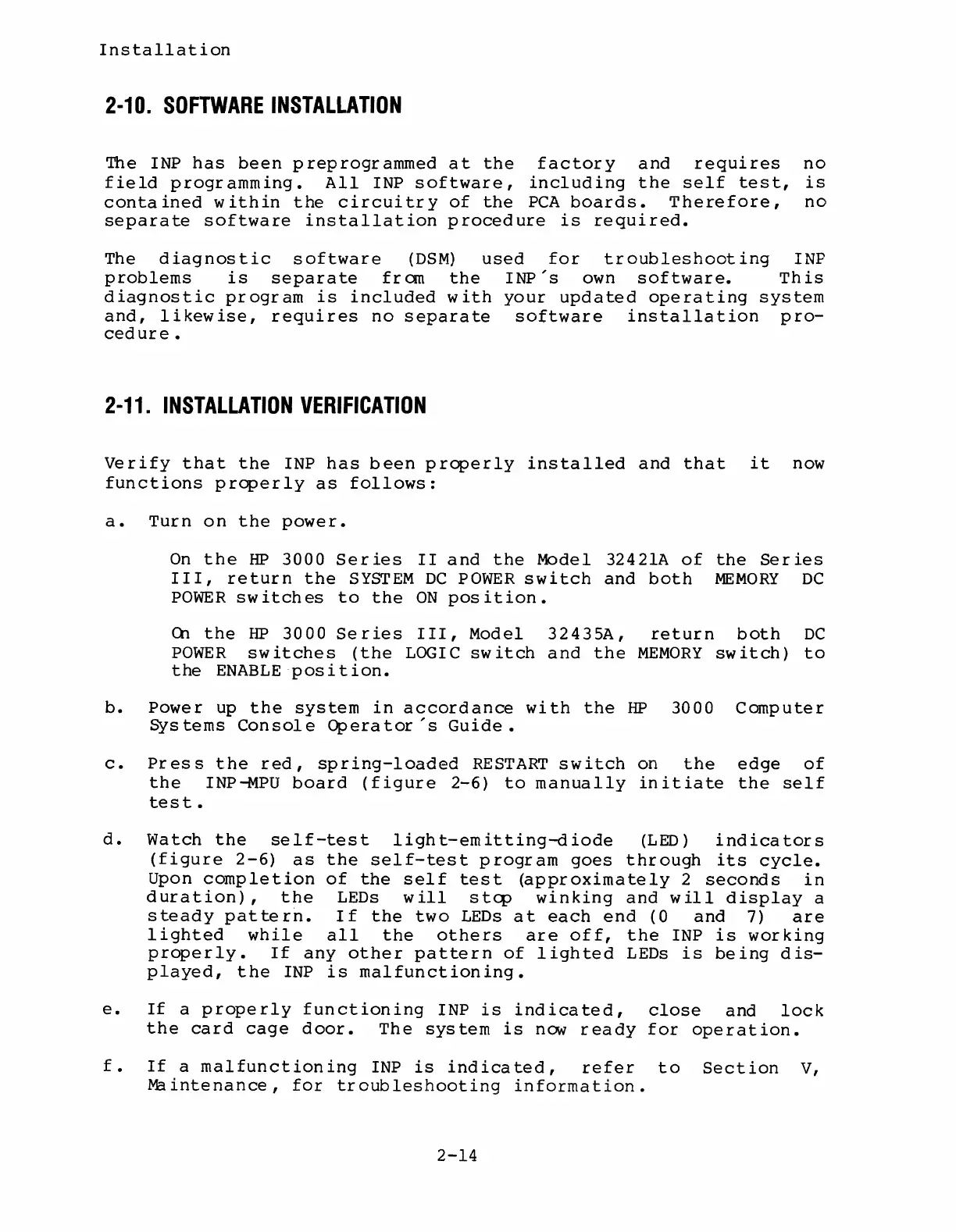

2-10. SOFTWARE INSTALLATION
'Ihe INP has been preprogrammed at the factory and requires no
field programming. All INP software, including the self test, is
contained within the circuitry of the PCA boards. Therefore, no
separate software installation procedure is required.
The diagnostic software (DSM) used for troubleshooting INF
problems is separate fran the INP's own software. This
diagnostic program is included with your updated operating system
and, likewise, requires no separate software installation pro-
cedure.
2-11. INSTALLATION VERIFICATION
Verify that the INP has been properly installed and that it now
functions properly as follows:
a. Turn on the power.
On the HP 3000 Series II and the Model 32421A of the Series
III, return the SYSTEM DC POWER switch and both MEMORY DC
POWER switches to the ON position.
Cb the HP 3000 Series III, Model 32435A, return both DC
POWER switches (the LOGIC switch and the MEMORY switch) to
the ENABLE position.
b. Power up the system in accordance with the HP 3000 Computer
Systems Console Operator's Guide.
c. Press the red, spring-loaded RESTART switch on the edge of
the INP-MPU board (figure 2-6) to manually initiate the self
test.
d. Watch the self-test light-emitting-diode (LED) indicators
(figure 2-6) as the self-test program goes through its cycle.
Upon completion of the self test (approximately 2 seconds in
duration), the LEDs will step winking and will display a
steady pattern. If the two LEDs at each end ( 0 and 7) are
lighted while all the others are off, the INP is working
properly. If any other pattern of lighted LEDs is being dis-
played, the INP is malfunctioning.
e. If a properly functioning INP is indicated, close and lock
the card cage door. The system is now ready for operation.
f. If a malfunctioning INP is indicated, refer to Section v,
M3.intenance, for troubleshooting information.
2-14
