Mounting bracket kit

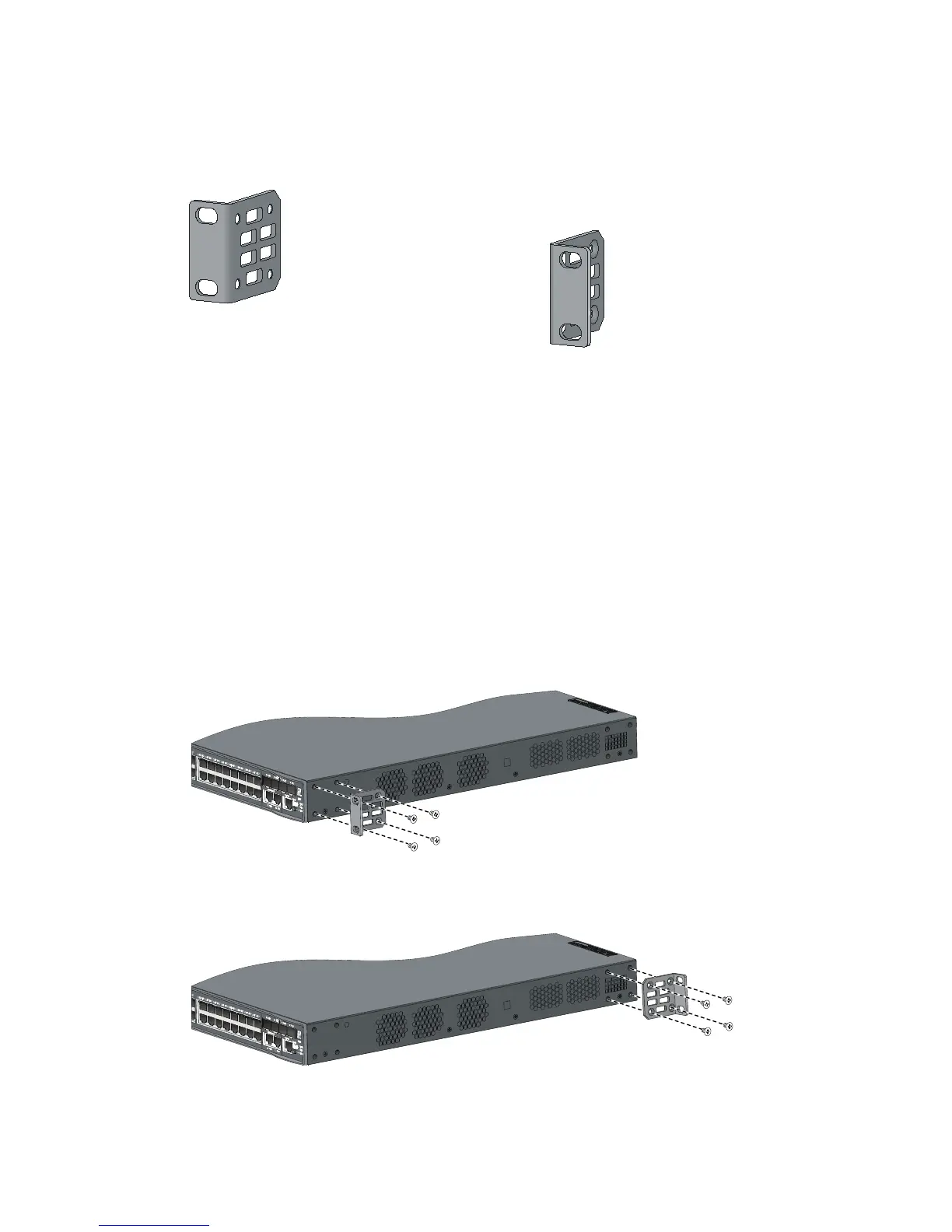

Figure 17 Mounting bracket kit
Attaching the mounting brackets to the chassis
The 3600 v2 switch provides one front mounting position and one rear mounting position. You can install
the mounting brackets as needed.
1. Wear an ESD-preventive wrist strap, and make sure that the wrist strap makes good skin contact
and is well grounded.
2. Align one mounting bracket with the screw holes in the front-mounting position (Figure 18) or the
rear-mounting position (Figure 19)..
3. Use M4 screws (supplied with the switch) to fix the mounting bracket to the switch chassis.
4. Repeat the proceeding steps to attach the other mounting bracket to the chassis.
Figure 18 1U mounting bracket front mounting position
Figure 19 1U mounting bracket rear mounting position
12
