Grounding the switch with a grounding strip
When a grounding strip is available at the installation site, connect the grounding cable to the
grounding strip.
CAUTION:
• The supplied grounding cable of the 3600 v2 Switch Series does not have an auxiliary OT terminal.
system in the equipment room. Do not connect it to a fire
main or lightning rod.
Connecting the grounding cable to the switch
Follow these steps to connect the grounding cable:
1. Remove the grounding screw on the rear panel of the switch chassis.
2. Attach the grounding screw to the OT terminal of the grounding cable.
3. Use a screwdriver to fasten the grounding screw into the grounding screw hole.

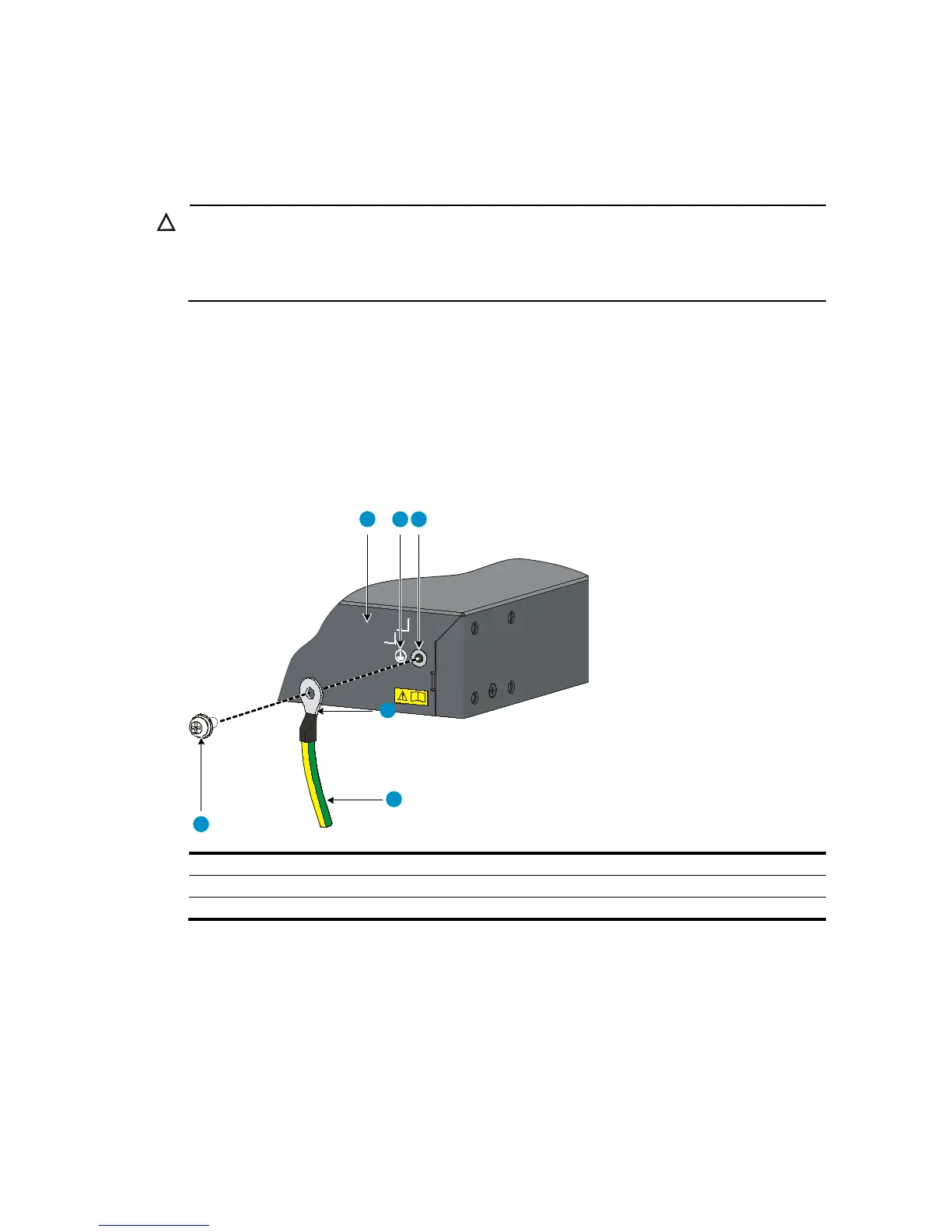

Figure 22 Connect the grounding cable to the grounding hole of switch
6
5
4
1 2 3
(1) Chassis rear panel (2) Grounding sign
(3) Groundin
Connecting the grounding cable to a grounding strip
Follow these steps to connect the grounding cable to a grounding strip:
1. Remove the hex nut from the grounding strip.
2. Cut the grounding cable to a proper length according to the distance between the switch and the
grounding strip.
3. Make the connector on the grounding cable:
15
