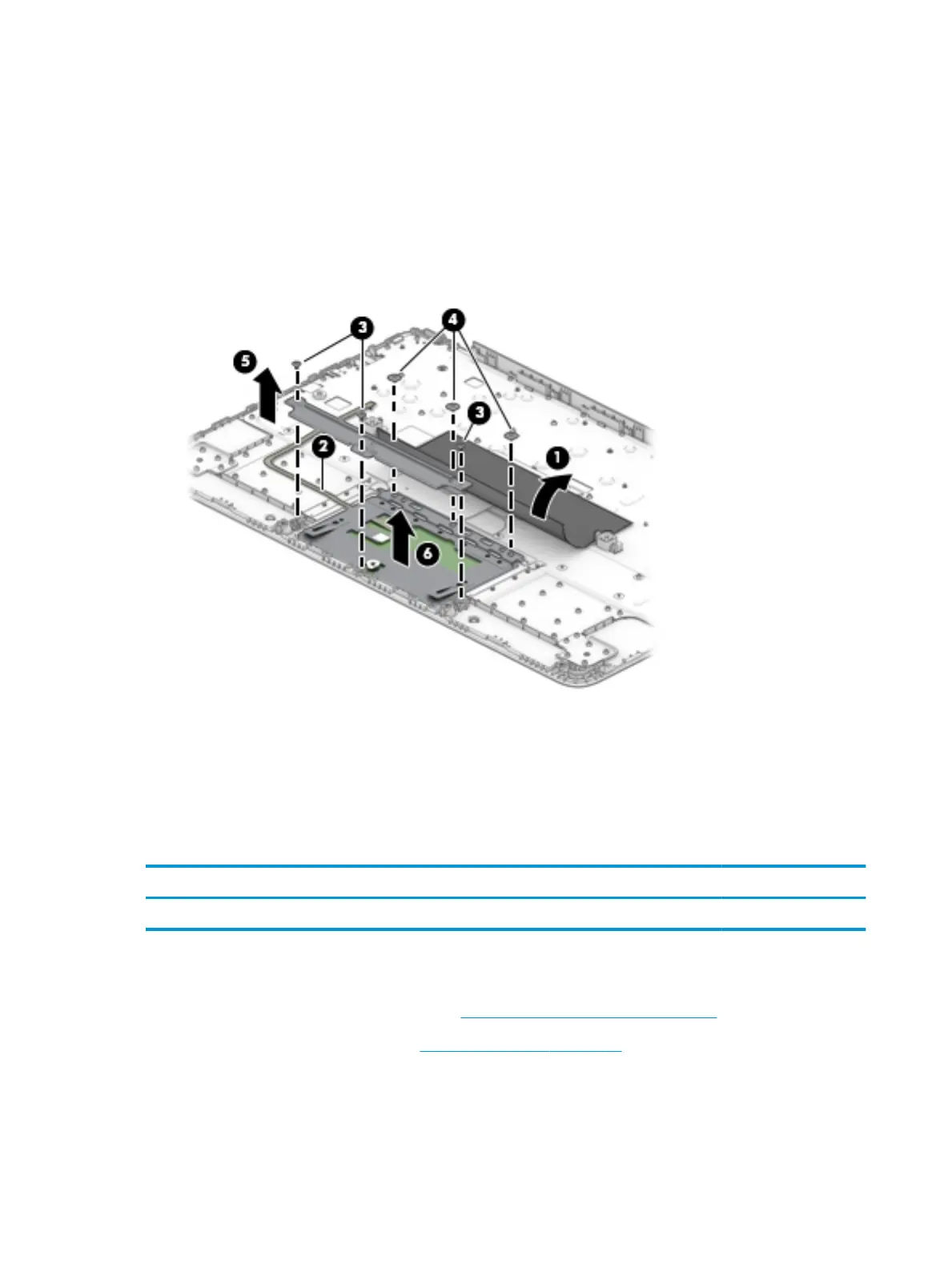

3. Remove the three Phillips M2.0×2.7 screws (3) that secure the TouchPad and TouchPad bracket to the
keyboard/top cover.
4. Remove the three Phillips M2.0×2.2 broad head screws (4) that secure the TouchPad to the keyboard/top
cover.
5. Remove the TouchPad bracket (5).
The TouchPad bracket is available using spare part number L18300-001.
6. Remove the touchpad (6).
Reverse this procedure to install the touchpad.
Battery
To remove the touchpad cable, use this procedure and illustration.
Table
5-3 Battery description and part number
Description Spare part number
Battery (2-cell, 47-WHr, 6.15-AHr, Li-ion, includes cable) 917725-855
Before removing the battery, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the top cover/keyboard (see Top cover/keyboard on page 29).
Remove the battery:
32 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
