Speaker
Table 5-4 Speaker description and part number
Description Spare part number
Speaker L91528-001
Before removing the speaker, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the bottom cover (see Bottom cover on page 21).
3. Disconnect the battery (see Battery on page 23).

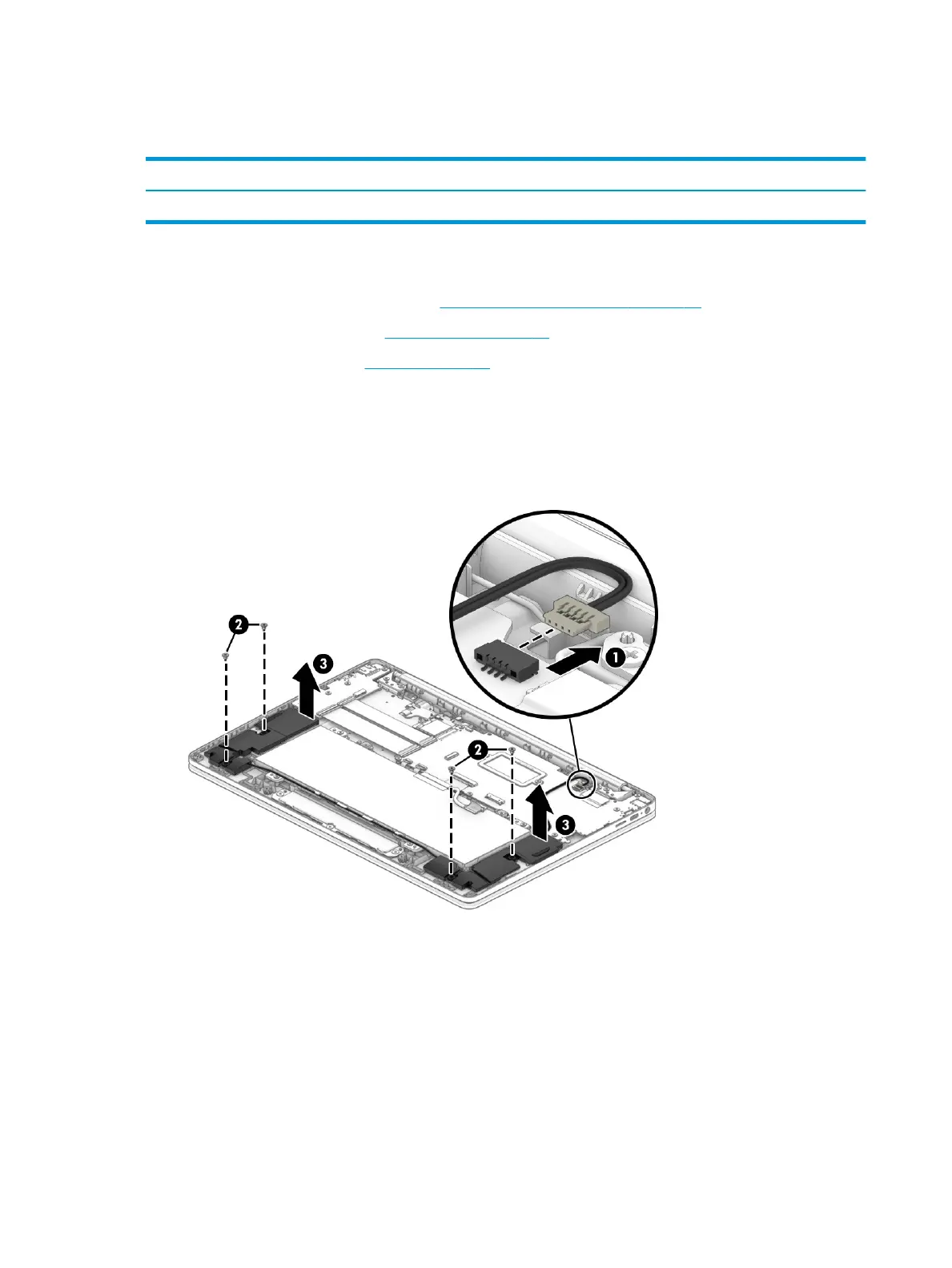

Remove the speaker:
1. Disconnect the speaker cable from the system board (1).
2. Remove the four Phillips M2.0 × 4.8 screws (2) that secure the speakers to the computer.
3. Remove the speakers (3) while removing the cable from the routing along the bottom of the battery.
Reverse this procedure to install the speakers.
26 Chapter 5 Removal and replacement procedures for authorized service provider parts
