Connecting Power
1. Plug the power cord into the power connection on the rear of the computer (1).
2. Plug the three-pronged power plug into the power brick (2) and a power outlet (3).

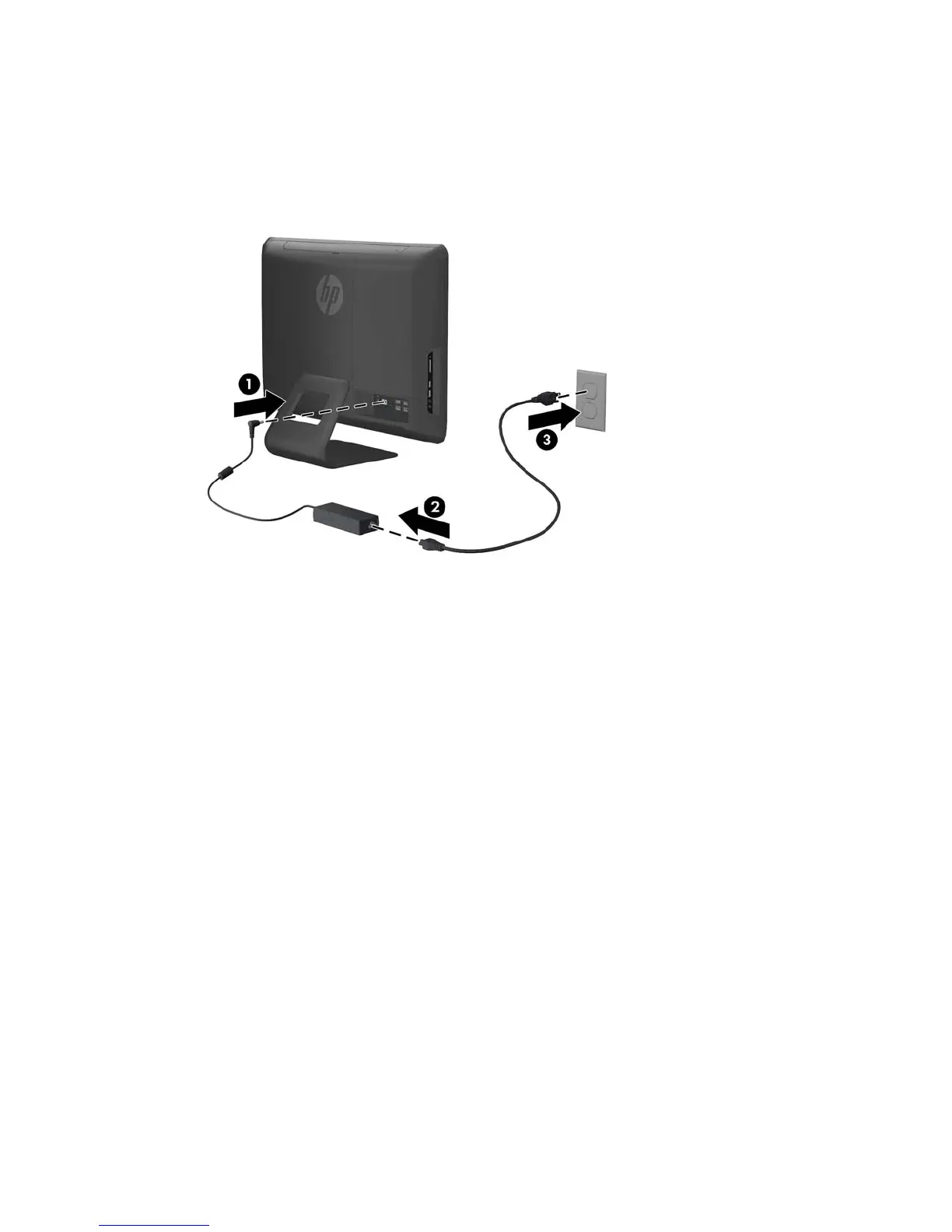

Figure 2-1 Connecting Power
3. Plug all peripheral cables into the appropriate ports as needed.
4. Press the power button on the front of the computer to turn it on.
Removing and Installing Memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-
SDRAM) small outline dual inline memory modules (SODIMMs).
The memory sockets on the system board can be populated with up to two industry-standard
SODIMMs. These memory sockets are populated with at least one preinstalled SODIMM. To achieve
the maximum memory support, you can populate the system board with up to 8 GB of memory.
For proper system operation, the SODIMMs must be:
●
industry-standard 204-pin
●
unbuffered non-ECC PC3-10600 DDR3-1333 MHz-compliant
●
1.5 volt DDR3-SDRAM SODIMMs
The DDR3-SDRAM SODIMMs must also:
●
support CAS latency 9 DDR3 1333 MHz (9-9-9 timing)
●
contain the mandatory Joint Electronic Device Engineering Council (JEDEC) specification
ENWW Connecting Power 7
