16. Place the drive access panel on the rear of the computer so that the edge of the panel is slightly
hanging off the edge of the computer and slide the panel toward the center of the computer until
it snaps in place.

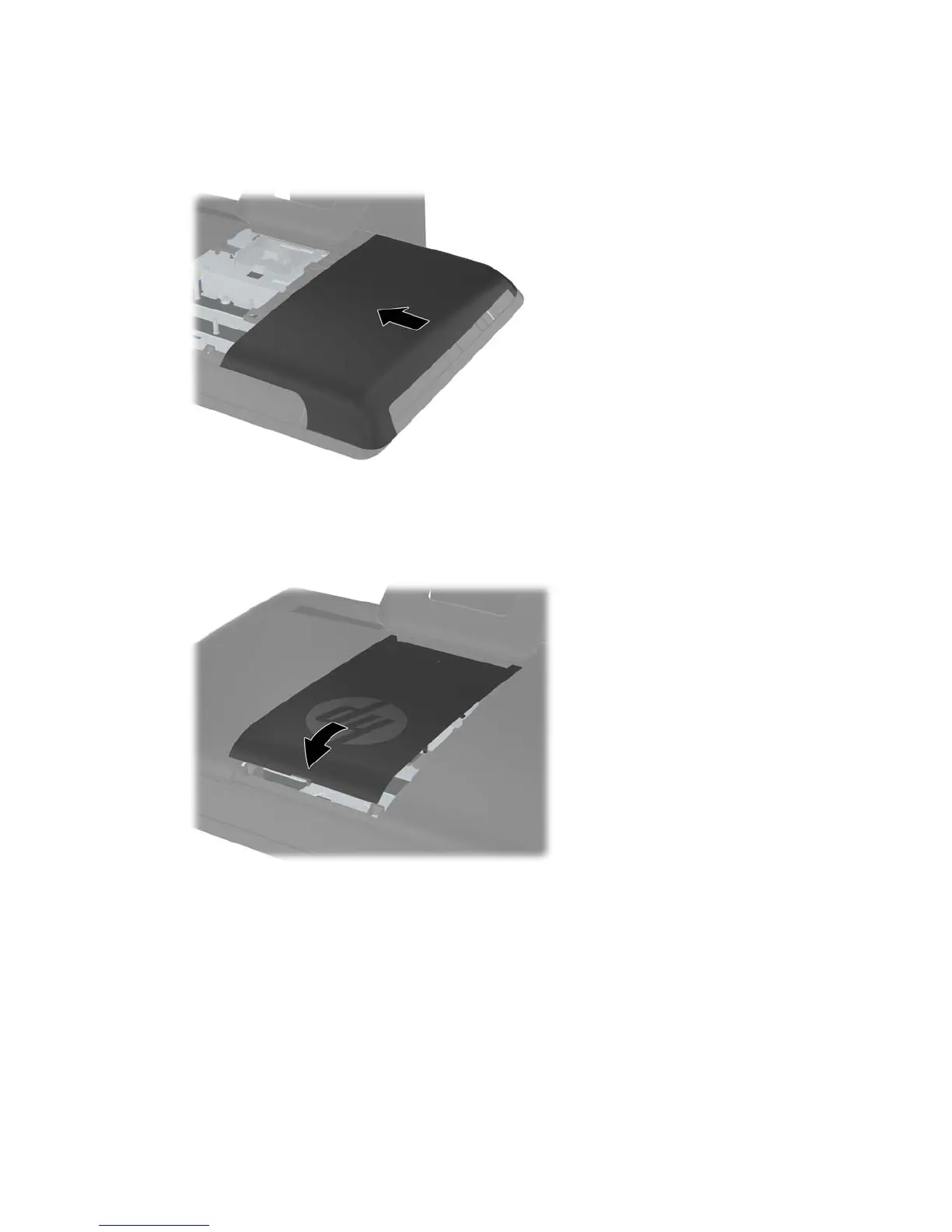

Figure 2-20 Replacing the Drive Access Panel
17. To replace the center access panel, insert the bottom edge of the panel then press down firmly
on each side of the panel working from the bottom to the top so that the panel snaps securely in
place.
Figure 2-21 Replacing the Center Access Panel
18. Lock any security devices that were disengaged when the center access panel was removed.
19. Reconnect the power cord and external devices then turn on the computer.
Installing a Security Lock
A security lock (sold separately) enables you to secure your computer from theft and unwanted
changes. A security lock is a key lock device that has a wire cable attached. You attach one end of
18 Chapter 2 Hardware Repair and Upgrade ENWW
