5–28 Maintenance and Service Guide
Removal and Replacement Procedures
5.12 Fan
1. Prepare the notebook for disassembly (Section 5.3).
2. Release the keyboard (Section 5.9).
3. Disconnect the fan cable 1 from the system board.
4. Loosen the 2 PM2.0×7.0 screws 2 that secure the fan to the
notebook.
5. Remove the fan 3.

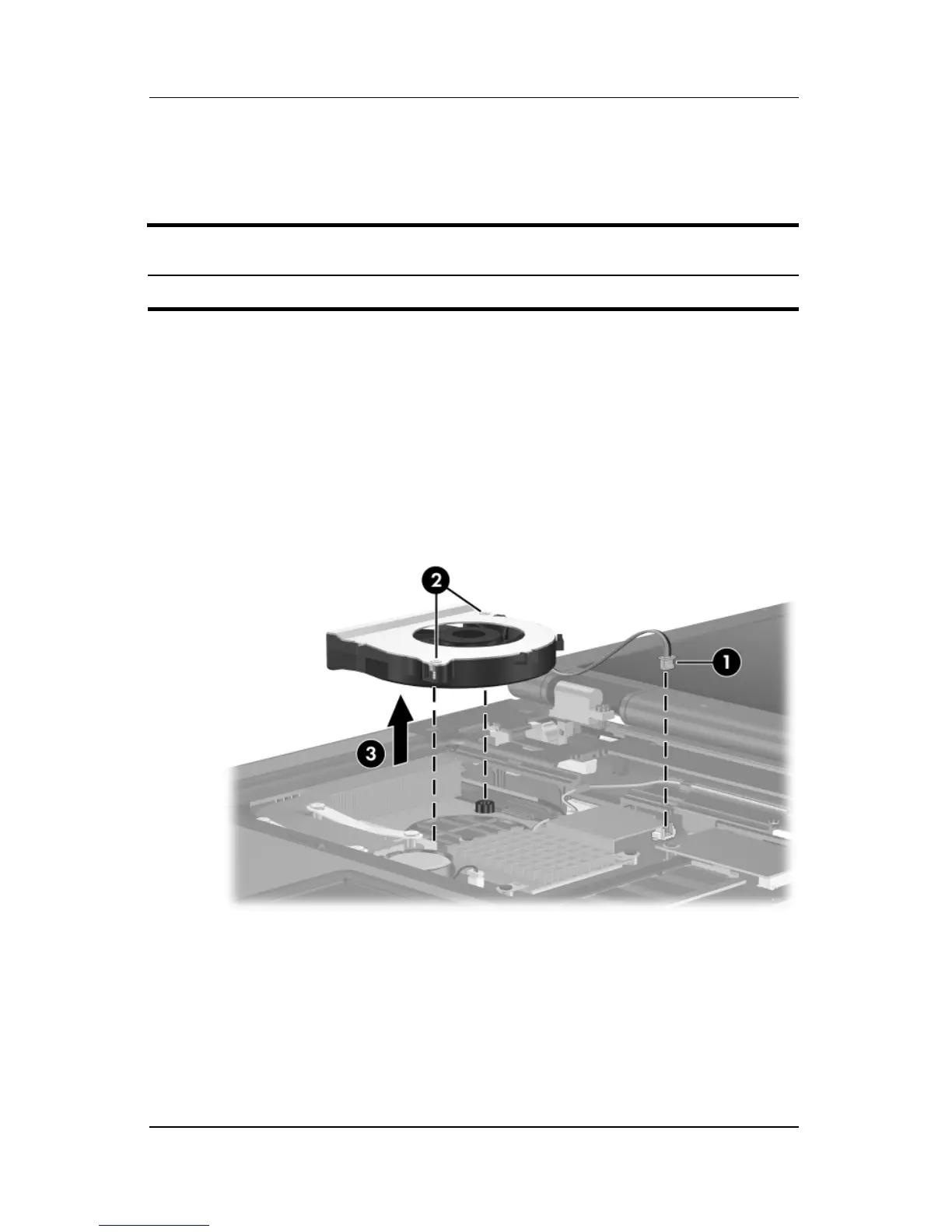

Removing the Fan
Reverse the above procedure to install the fan.
Fan Spare Part Number Information
Fan 378233-001
