HP DV4-2153 Maintenance And Service Guide

HDMI

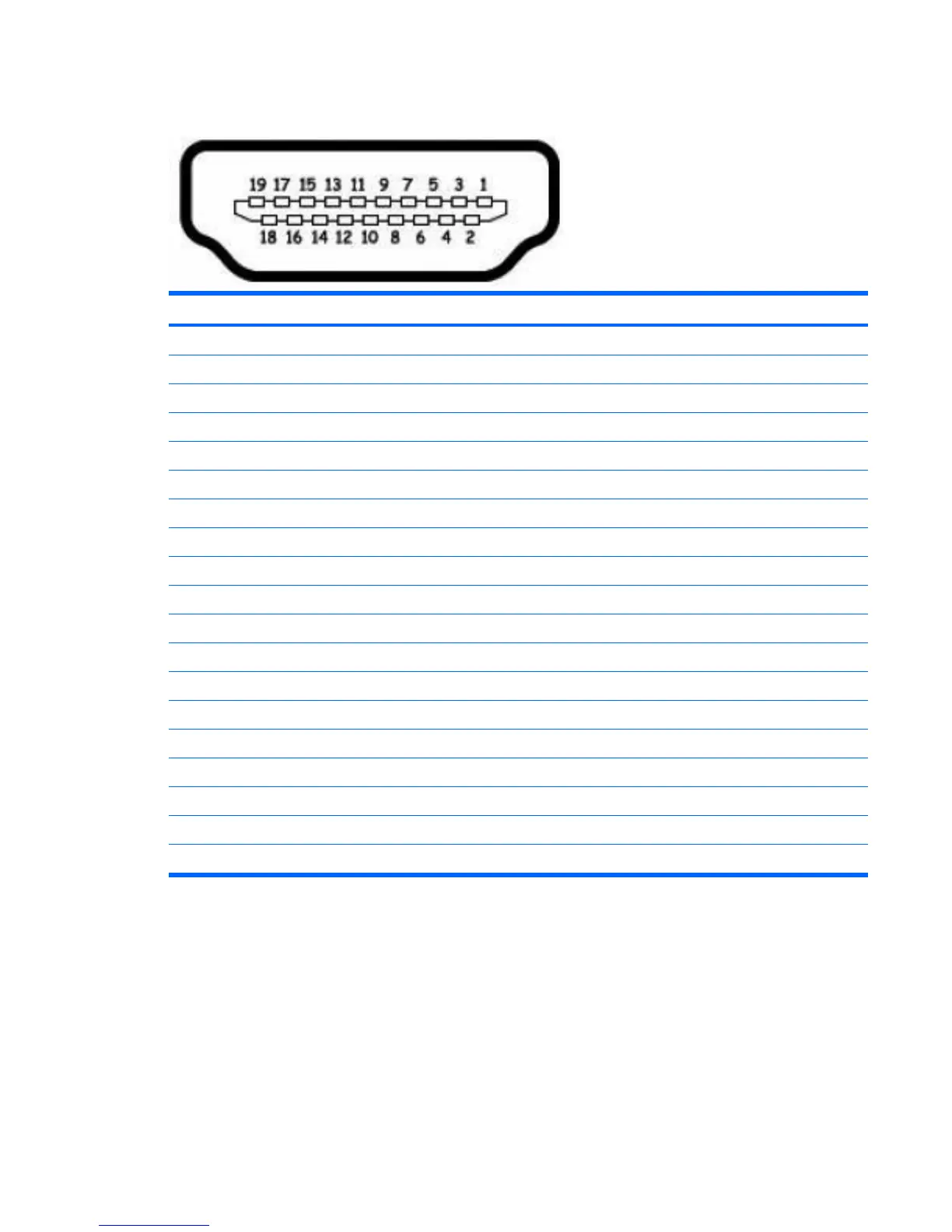

Pin Signal
1 Transition minimized differential signal (TDMS) data 2+
2 Transition minimized differential signal (TDMS) data 2 shield
3 Transition minimized differential signal (TDMS) data 2-
4 Transition minimized differential signal (TDMS) data 1+
5 Transition minimized differential signal (TDMS) data 1 shield
6 Transition minimized differential signal (TDMS) data 1-
7 Transition minimized differential signal (TDMS) data 0+
8 Transition minimized differential signal (TDMS) data 0 shield
9 Transition minimized differential signal (TDMS) data 0-
10 Transition minimized differential signal (TDMS) Clock +
11 Transition minimized differential signal (TDMS) data clock shield
12 Transition minimized differential signal (TDMS) data clock-
13 Consumer electronics control (CEC)
14 No connect
15 Display data channel (DDC) clock
16 Display data channel (DDC) data
17 Ground
18 +5V power
19 Hot plug detect
HDMI 179
