Bluetooth module
Description Spare part number
Bluetooth module 483113-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 55).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 59)
b. WLAN cover (see
WLAN module on page 62)
c. Optical drive (see
Optical drive on page 57)
d. Keyboard (see
Keyboard on page 72)
e. Keyboard cover (see
Keyboard cover on page 76)

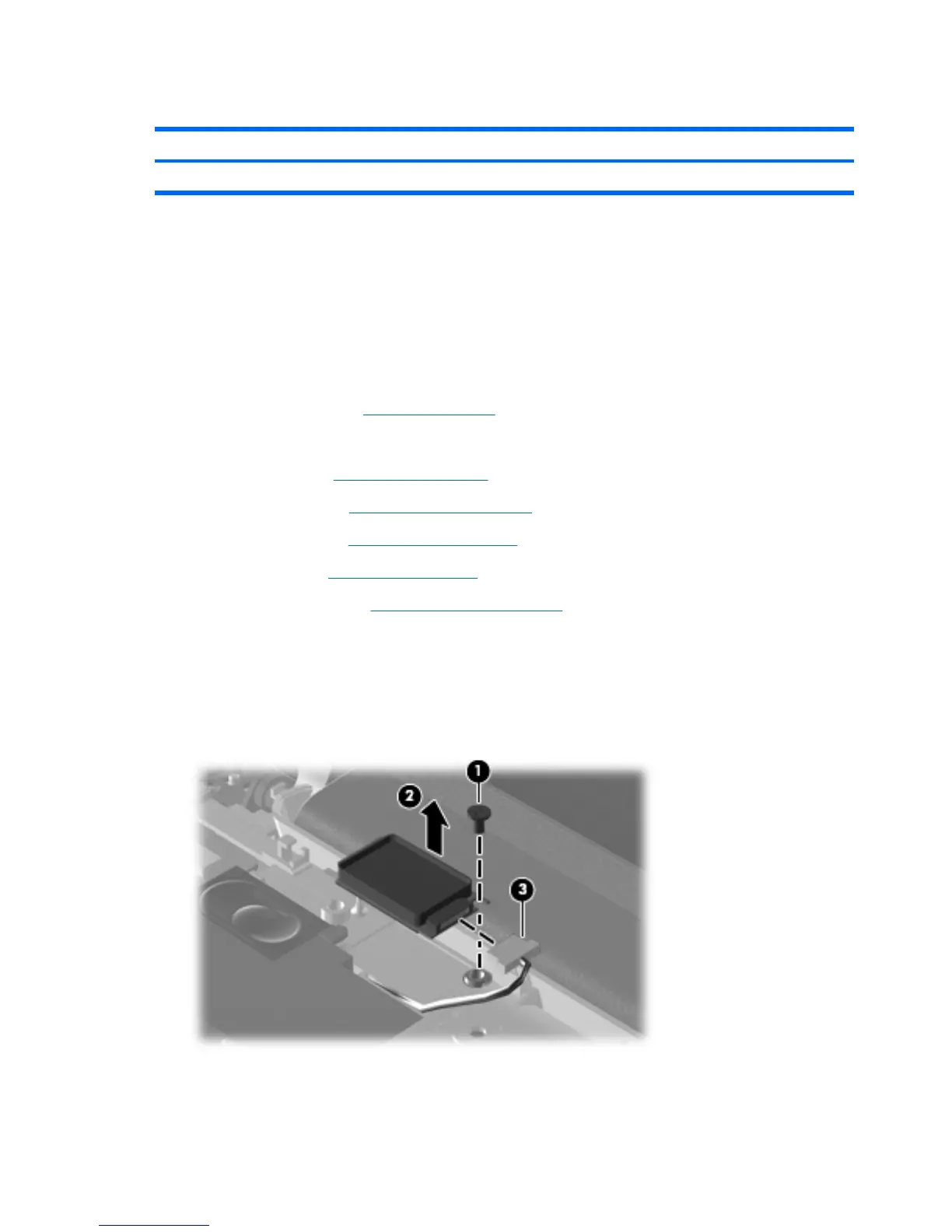

Remove the Bluetooth module:
1. Remove the Phillips PM2.0×4.0 screw (1) that secures the Bluetooth module to the system board.
2. Lift the Bluetooth module from the system board (2).
3. Disconnect the Bluetooth module cable from the Bluetooth module (3).
Reverse the above procedure to install the Bluetooth module.
78 Chapter 4 Removal and replacement procedures
