HP E27 G5 User Manual

18
Power board
The power board part number is 1
st
Source PLPCMH481GQA4, 2
nd
Source PLPCMH651KQA5 and 3
rd
Souce
PLPCMH351IQA7.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 12.
Remove the power board:

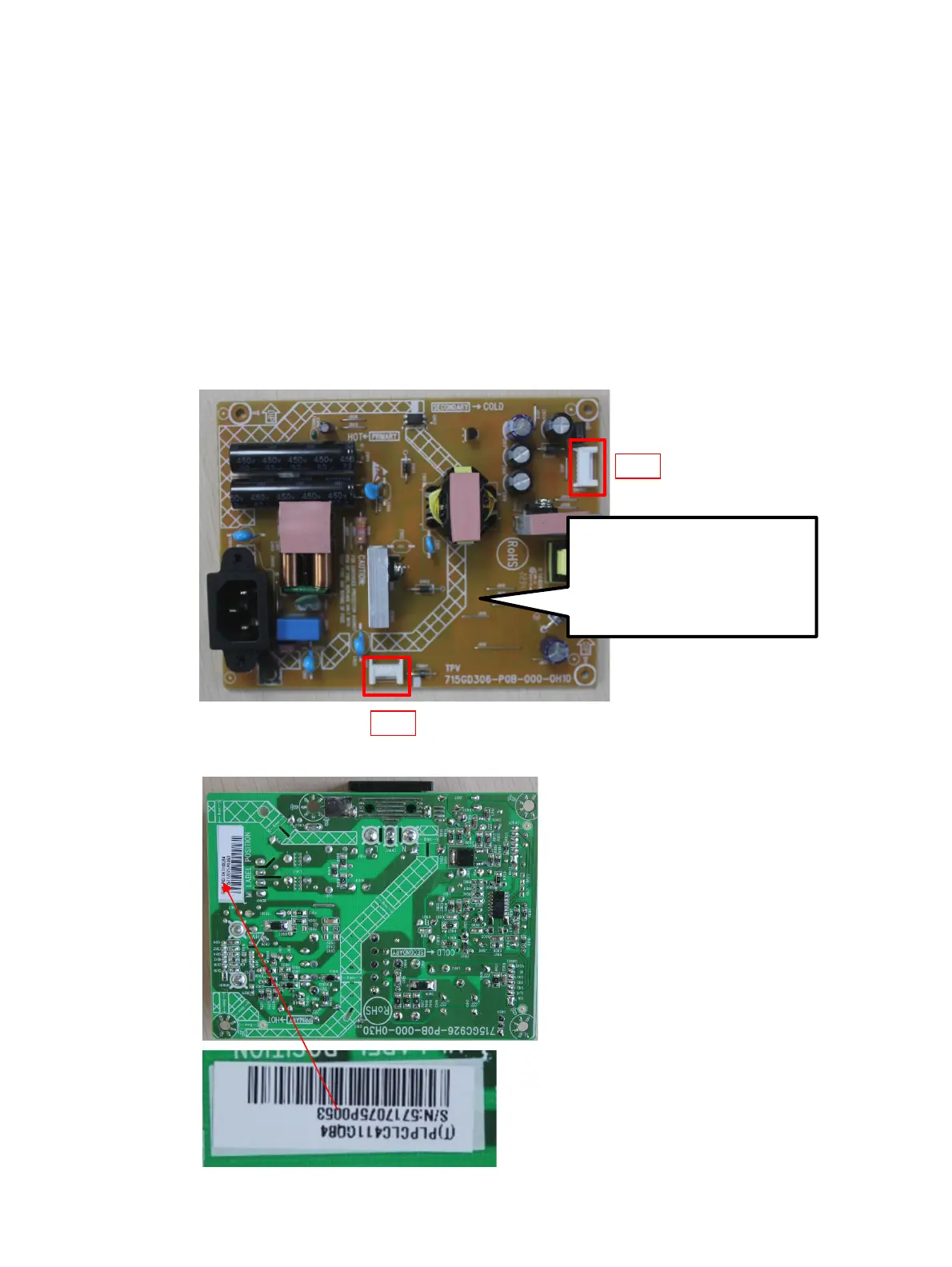

1) The HP E27 G5 power board connector position is as follows:
2) Locate the part number location on the board.
CN902
CN
801
Warning: After unplugging the
power supply, the capacitance
is still charged, do not touch
and discharge the capacitor.

HP E27 G5 Specifications

General

Color gamut	99 %
Pixel pitch	0.31 x 0.31 mm
Screen shape	Flat
Display diagonal	27 \
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display brightness (peak)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	160 mm
Package width	699 mm
Package height	446 mm
Package weight	10880 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Product color	Black
Country of origin	China
Market positioning	Business
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	227 mm
Width (with stand)	612 mm
Height (with stand)	546 mm
Weight (with stand)	6960 g
Depth (without stand)	4.5 mm
Width (without stand)	611.7 mm
Height (without stand)	363.3 mm
Weight (without stand)	4830 g
