Connecting the Cables
1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect one end of the DisplayPort signal cable to the DisplayPort connector on the side of the
monitor and the other end to the DisplayPort connector on the computer.

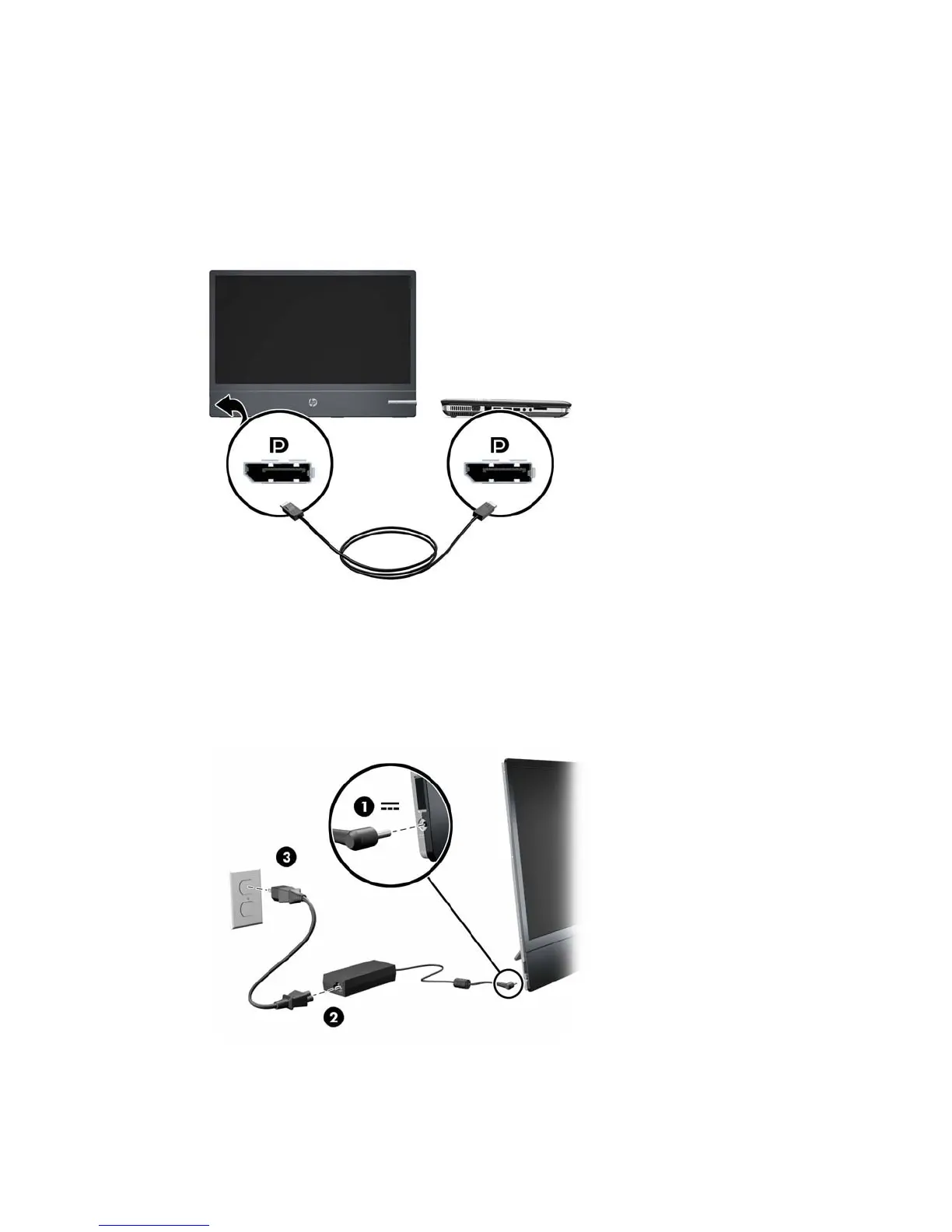

Figure 3-3 Connecting the DisplayPort Cable
3. Connect the power cord attached to the power supply brick to the power connector on the side
of the monitor (1), and connect the other power cord between the power supply brick (2) and an
electrical wall outlet (3).
Figure 3-4 Connecting the Power Cord
6 Chapter 3 Setting Up the Monitor ENWW
