Bluetooth module
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The
Bluetooth module cable is included in the Cable Kit, spare part number 596040-001. See
Bluetooth
module cable on page 86 for information on replacing the Bluetooth module cable.
Description Spare part number
Bluetooth module 537921-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Remove the hard drive cover (see
Primary hard drive on page 48).
Remove the Bluetooth module:

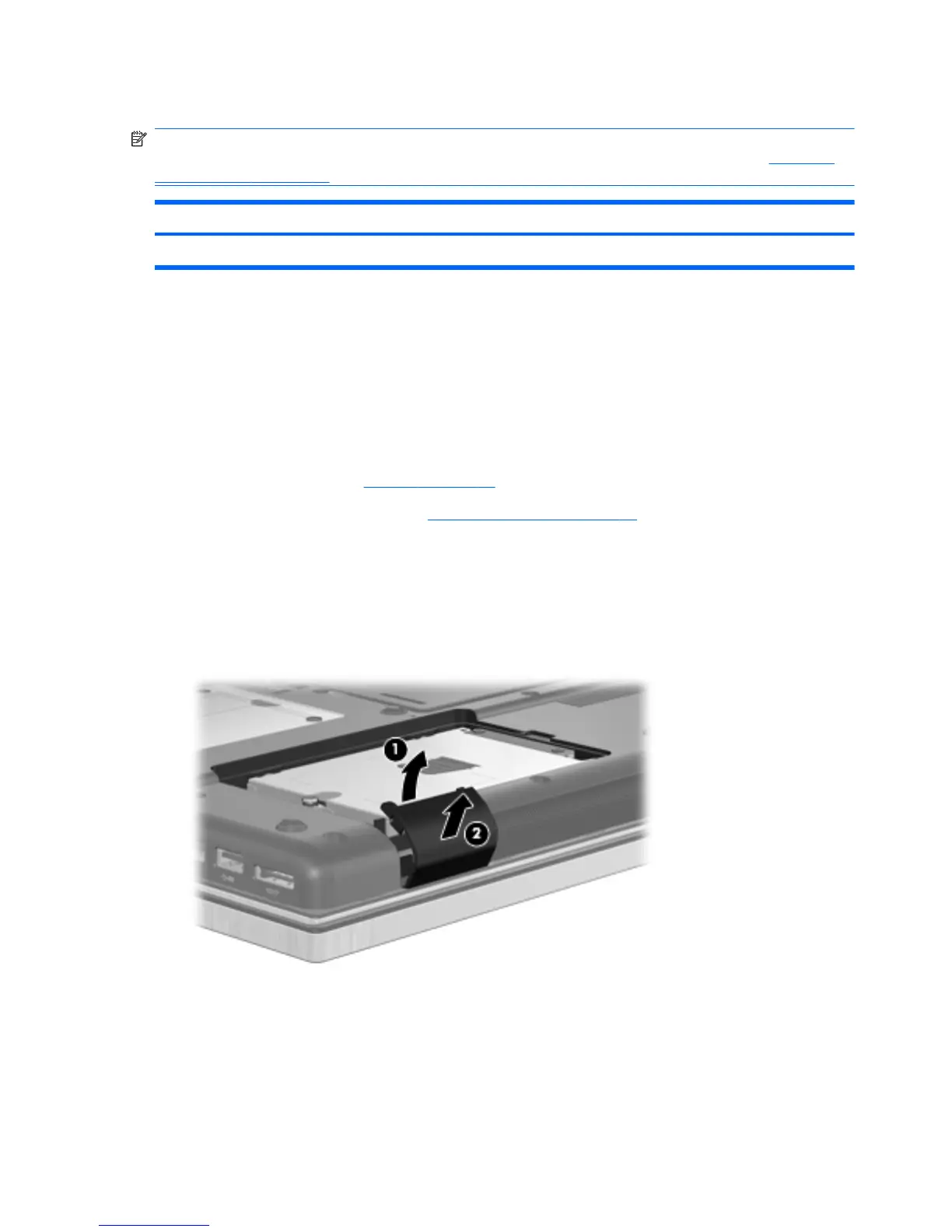

1. Lift the rear edge of the Bluetooth module compartment cover (1) until it detaches from the base
enclosure.
2. Remove the Bluetooth module compartment cover (2). The Bluetooth module compartment
cover is included in the Plastics Kit, spare part number 596044-001.
3. Release the clip (1) built into the base enclosure that secures the Bluetooth module.
4. Release the Bluetooth module (2) as far as the Bluetooth module cable allows.
50 Chapter 4 Removal and replacement procedures ENWW
