Bluetooth module cable
NOTE: The Bluetooth module cable is included in the Cable Kit, spare part number 596040-001.
Before removing the Bluetooth module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 46), and then remove the following components:
a. Optical drive (see
Optical drive on page 52) or secondary hard drive (see Secondary hard
drive on page 53)
b. Keyboard (see
Keyboard on page 61)
c. Switch cover (see
Switch cover on page 65)
d. Display assembly (see
Display assembly on page 74)
e. Top cover (see
Top cover on page 83)

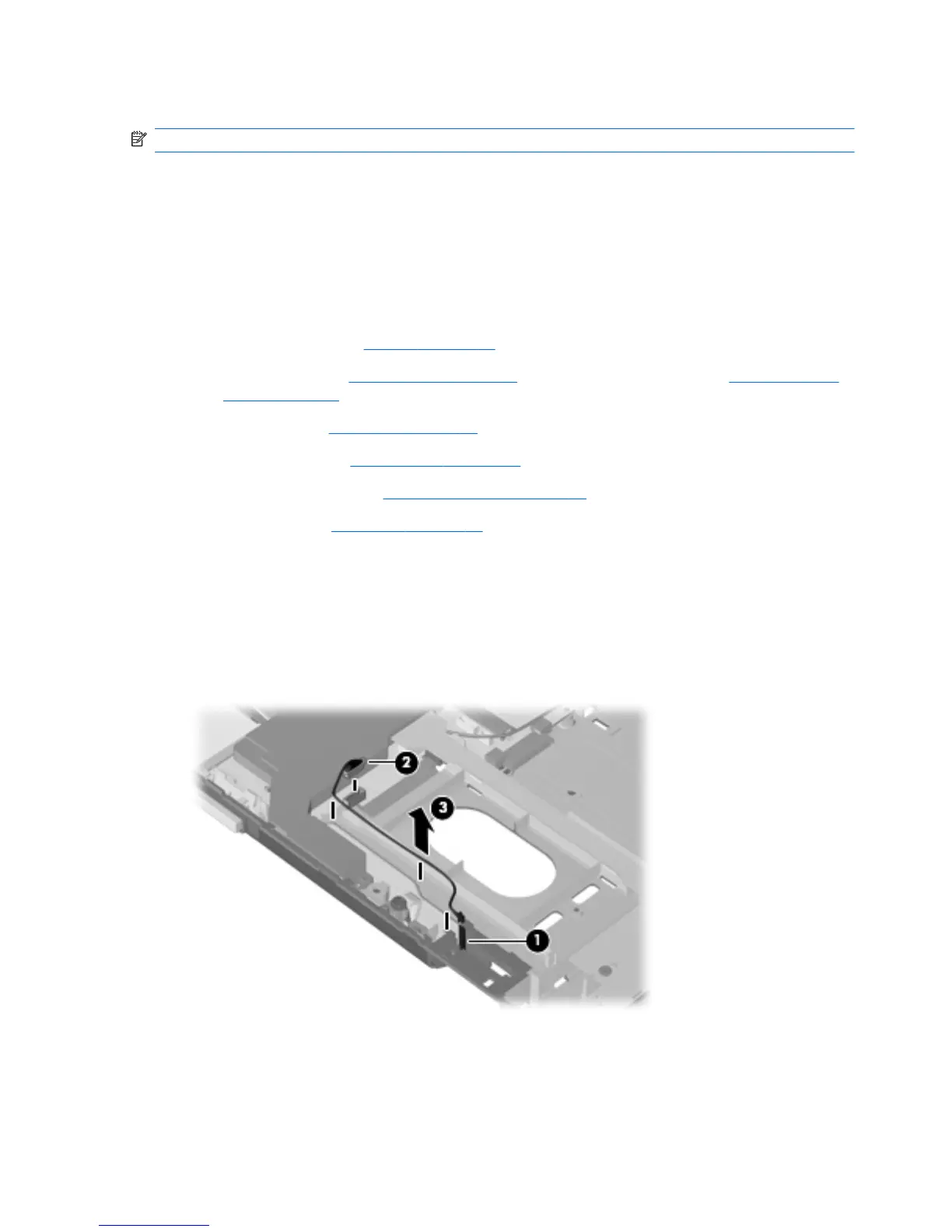

Remove the Bluetooth module cable:
1. Release the Bluetooth module cable (1) from the opening in the base enclosure.
2. Disconnect the Bluetooth module cable (2) from the system board.
3. Detach the Bluetooth module cable (3) from the base enclosure. The Bluetooth module cable is
attached to the base enclosure with double-sided tape.
4. Remove the Bluetooth module cable.
Reverse this procedure to install the Bluetooth module cable.
86 Chapter 4 Removal and replacement procedures ENWW
