HP ElitePad 1000 G2 Maintenance And Service Guide

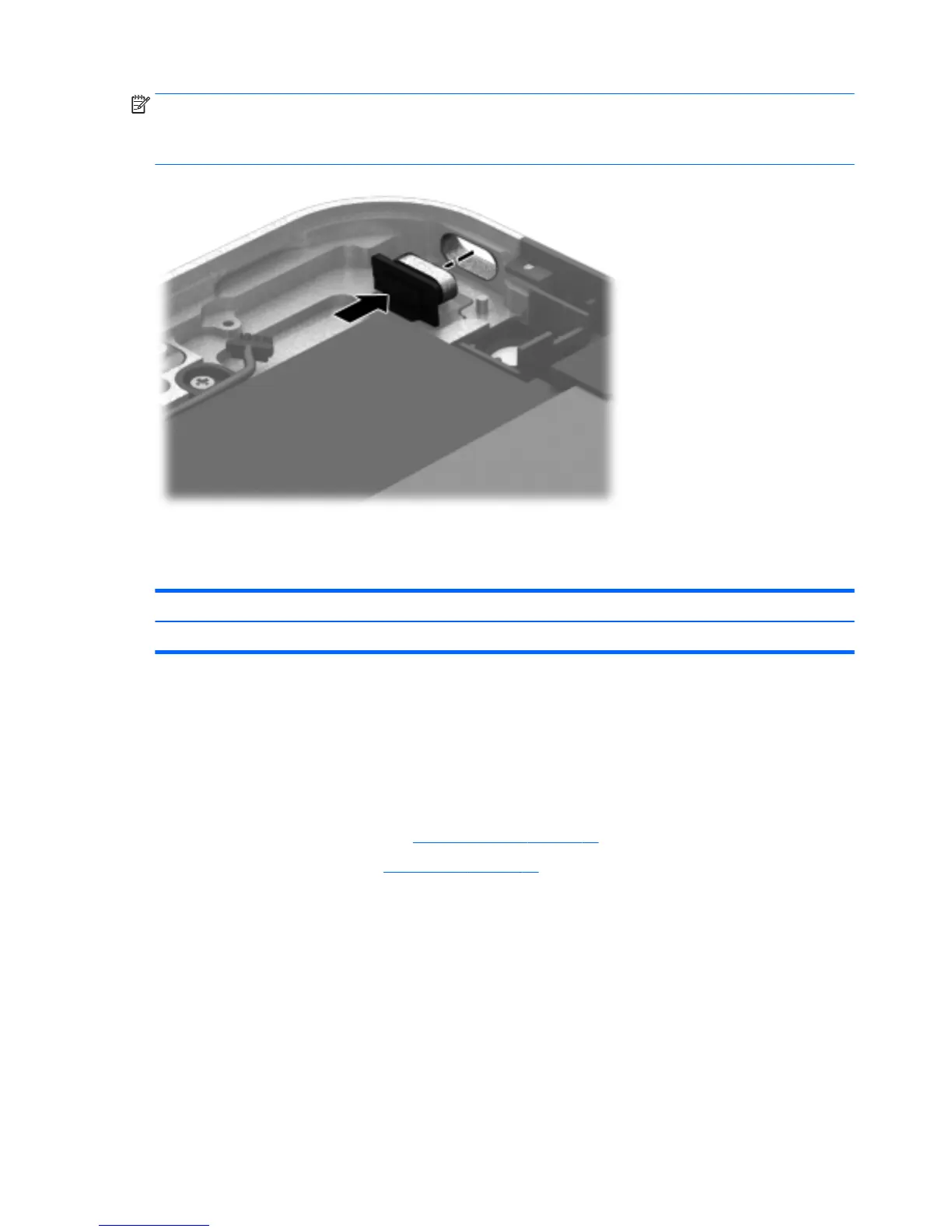

NOTE: In the process of removing the power button board, the power button actuator may be accidentally
dislodged from the bottom cover. To replace the power button actuator, refer to the following illustration.
The power button actuator is included in the Button Kit, spare part number 747634-001.
Reverse this procedure to install the power button board.
Volume button board
Description Spare part number
Volume button board (includes bracket and cable) 759031-001
Before removing the volume button board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the display assembly (see Display assembly on page 28).
5. Remove the NFC antenna (see NFC antenna on page 35).
Remove the volume button board:
1. Disconnect the volume button board cable (1) from the power button board.
2. Release the volume button board cable from the retention clips (2) built into the battery.
3. Remove the two Phillips PM1.5×2.0 screws (3) that secure the volume button board to the
bottom cover.
44 Chapter 5 Removal and replacement procedures

HP ElitePad 1000 G2 Specifications

General

Stepping	C0
Processor code	SR1SK
Processor cache	2 MB
Processor cores	4
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
Processor frequency	1.59 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	17 x 17 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.39 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
Scenario Design Power (SDP)	2 W
Device type	Tablet PC
Form factor	Slate
Product color	Silver
Internal memory	4 GB
Memory clock speed	1067 MHz
Internal memory type	LPDDR3-SDRAM
Storage media	SSD
Card reader integrated	No
Compatible memory cards	Not supported
Internal storage capacity	64 GB
Display diagonal	10.1 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Graphics card	HD Graphics
Rear camera type	Single camera
Rear camera resolution (numeric)	8 MP
Front camera resolution (numeric)	2.1 MP
Battery capacity	30 Wh
Battery life (max)	13 h
Number of battery cells	2
Audio system	DTS Sound+
AC adapter power	10 W
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Platform	Windows
Bundled software	Buy Office PDF Complete Corporate Edition HP Mobile Connect HP Wireless Hotspot (models with WLAN) HP ePrint HP Manageability HP PageLift HP Support Assistant HP SoftPaq Download Manager Kindle Box (50 GB offer)
Operating system version	-
Operating system installed	Windows 8.1 Pro
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Processor ARK ID	80267
Processor socket	BGA 1380

Weight and Dimensions

Depth	178 mm
Width	261 mm
Height	9.2 mm
Weight	680 g
