Reverse this procedure to install the docking connector cable.
Card reader board
Description Spare part number
Card reader board 744043-001
Before removing the card reader board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet or the
Security Jacket.
3. Disconnect all external devices from the Security Jacket.
4. Remove the card reader cover and top cap (see Card reader cover and Top cap on page 77).
5. If installed, remove the tablet from the Security Jacket (see Card reader cover and Top cap on page 77).
6. Remove the front cover (see Front cover on page 80).

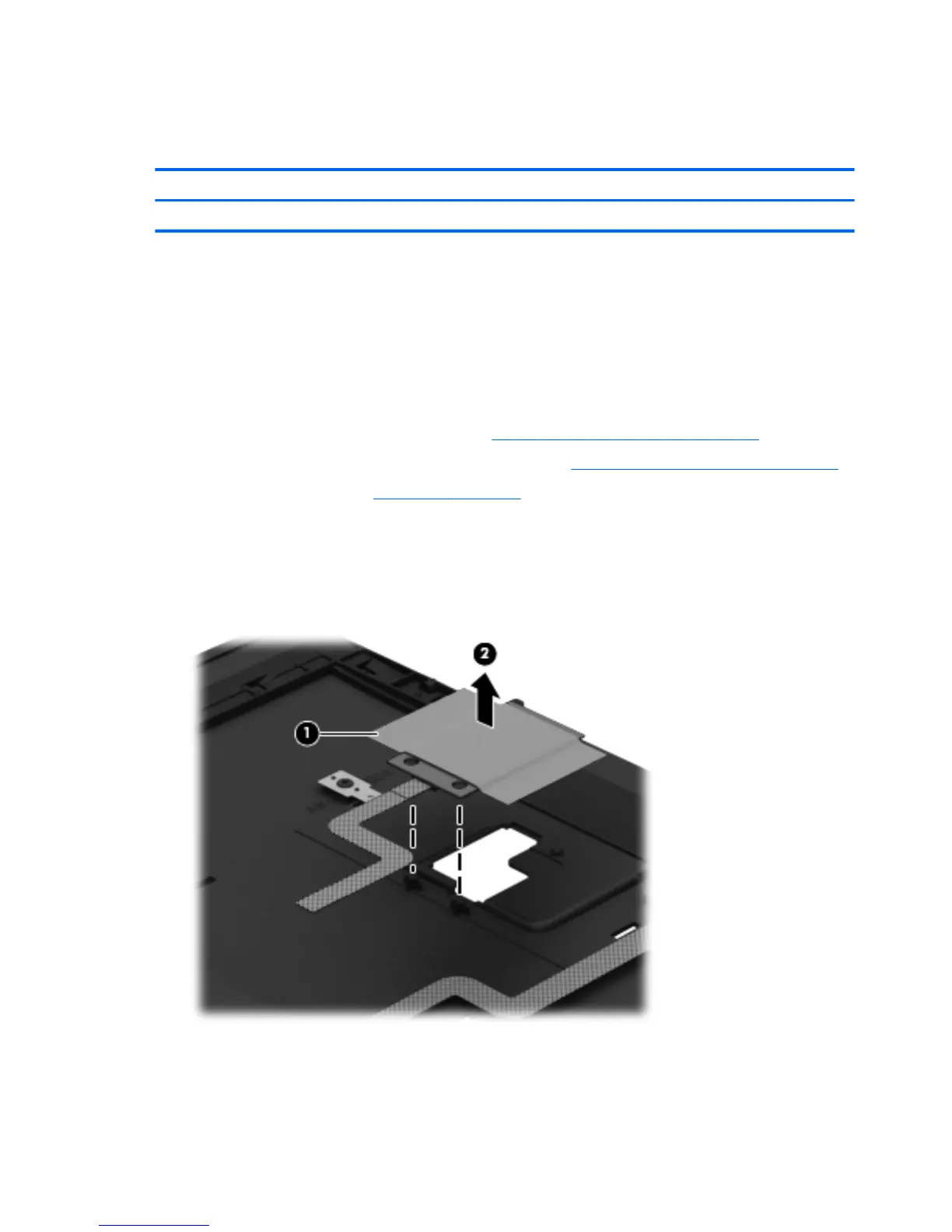

Remove the card reader board:
1. Position the rear cover with the bottom toward you.
2. Detach the tape (1) that secures the card reader board to the rear cover.
3. Remove the card reader board (2) and cable.
Reverse this procedure to install the card reader board.
84 Chapter 5 Removal and replacement procedures
