Power connector
Description Spare part number
For use only on select HP ENVY 15 Computer Notebooks models 762507-001
For use only on select HP ENVY 17 Computer Notebooks models 763699-001
Before removing the power connector, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 37),
5. Remove the optical drive (see
Optical drive on page 38).
6. Remove the top cover from the base enclosure (see
Base enclosure on page 41).
7. Remove the WLAN module (see
WLAN module on page 55).
8. Remove the subwoofer (see
Subwoofer on page 60).
9. Remove the system board (see
System board on page 63).

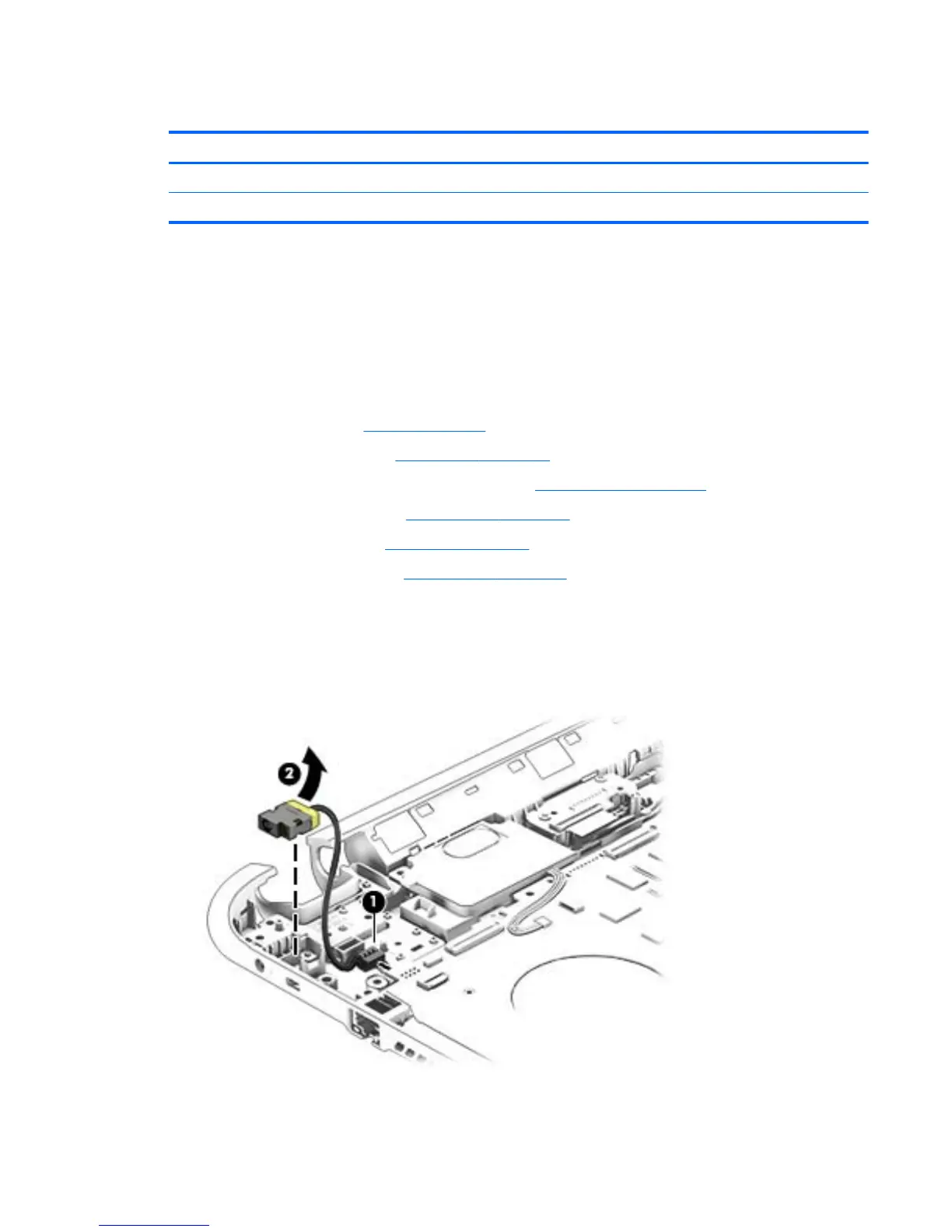

Remove the power connector cable:
1. Release the metal clip to disconnect the power connector cable (1) from the system board.
2. Disengage the cable from the clips (2).
3. Release the clips (3), and then remove the power connector cable (4).
Reverse this procedure to install the power connector cable and bracket.
Component replacement procedures 73
