Fan
Description Spare part number
Fan (with foil) 763700-001
Before removing the fan, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 37),
5. Remove the optical drive (see
Optical drive on page 38).
6. Remove the top cover from the base enclosure (see
Base enclosure on page 41).
7. Remove the WLAN module (see
WLAN module on page 55).
8. Remove the subwoofer (see
Subwoofer on page 60).
9. Remove the system board (see
System board on page 63).

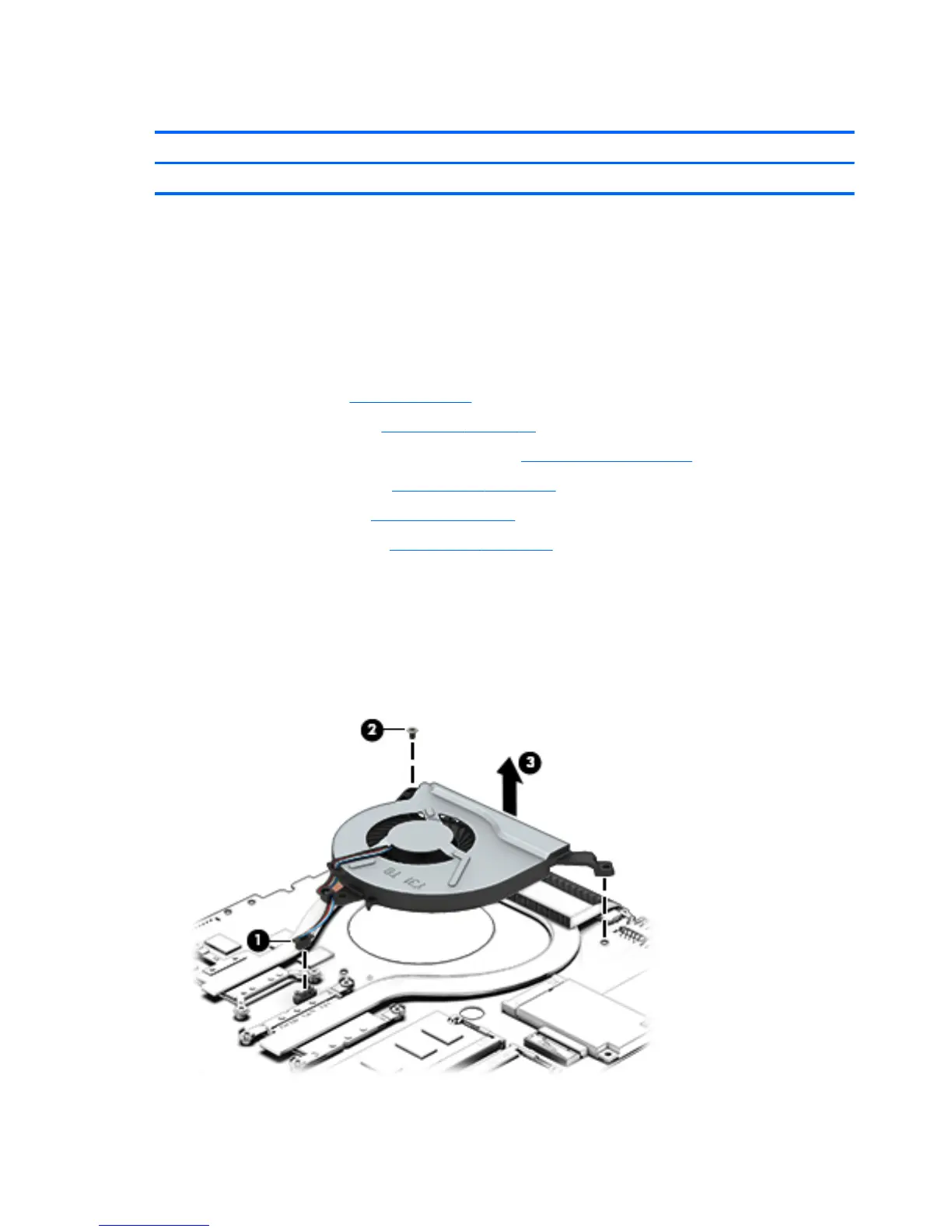

Remove the fan:
1. Disconnect the fan cable from the system board, and then remove the piece of tape that secures the fan
to the heat sink (1).
2. Remove the three Phillips screws securing the fan to the unit (2) and (3).
3. Lift the fan (4) to remove it.
Reverse this procedure to install the fan.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
