Power Meter Operation
How Measurements are Calculated
HP EPM-441A User’s Guide 2-43
How Measurements are Calculated

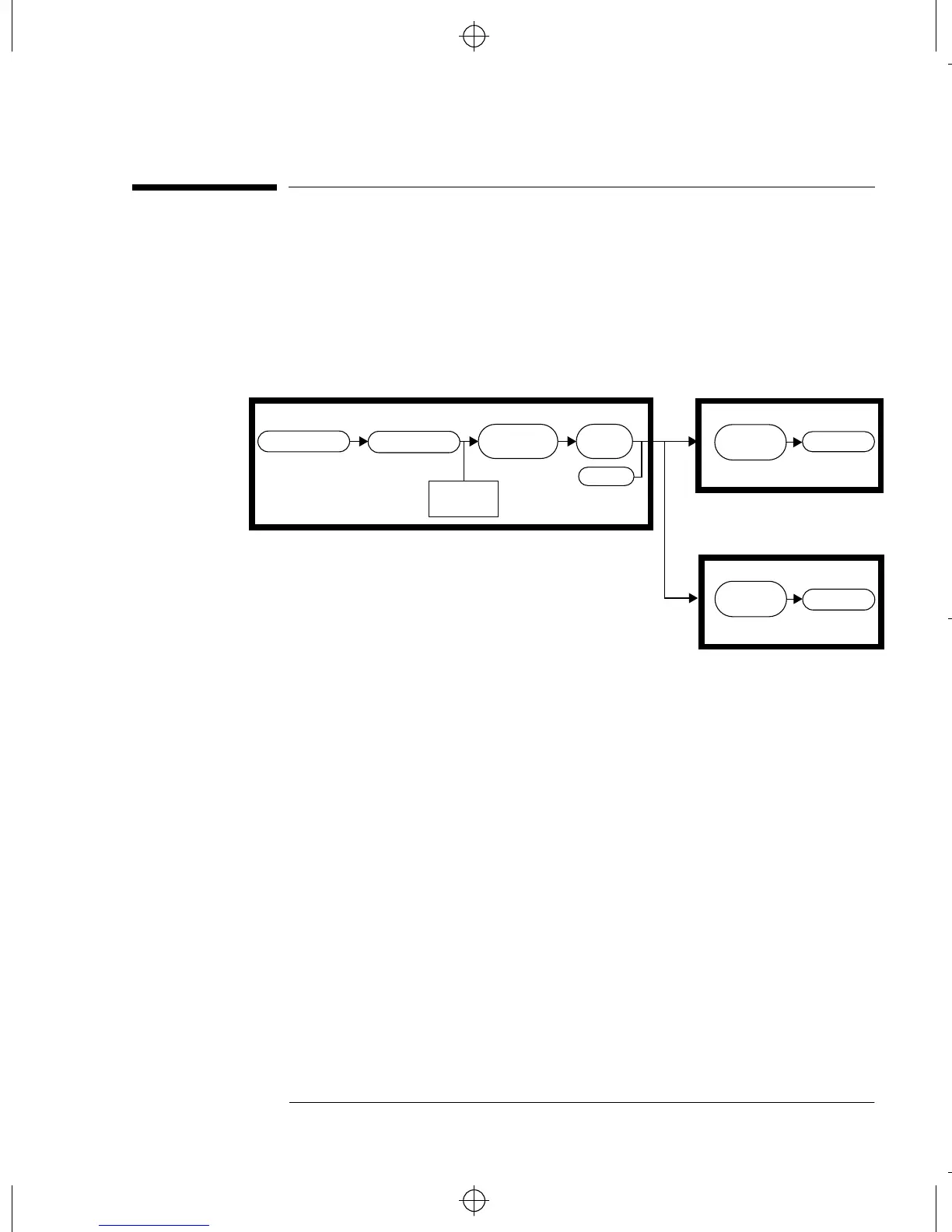

Figure 2-14 details how measurements are calculated. It shows the
position in which the various power meter functions are implemented in
the measurement calculation.
Figure 2-14: How Measurements are Calculated
Cal Factor
Channel Functions Window Functions
Averaging
Channel Duty
Offset Cycle
Display
Relative
Offset
Channel A
Upper Window
Limits
Display
Relative
Offset
Lower Window
Recorder
Output
