Theory
of
Operation
HP-97

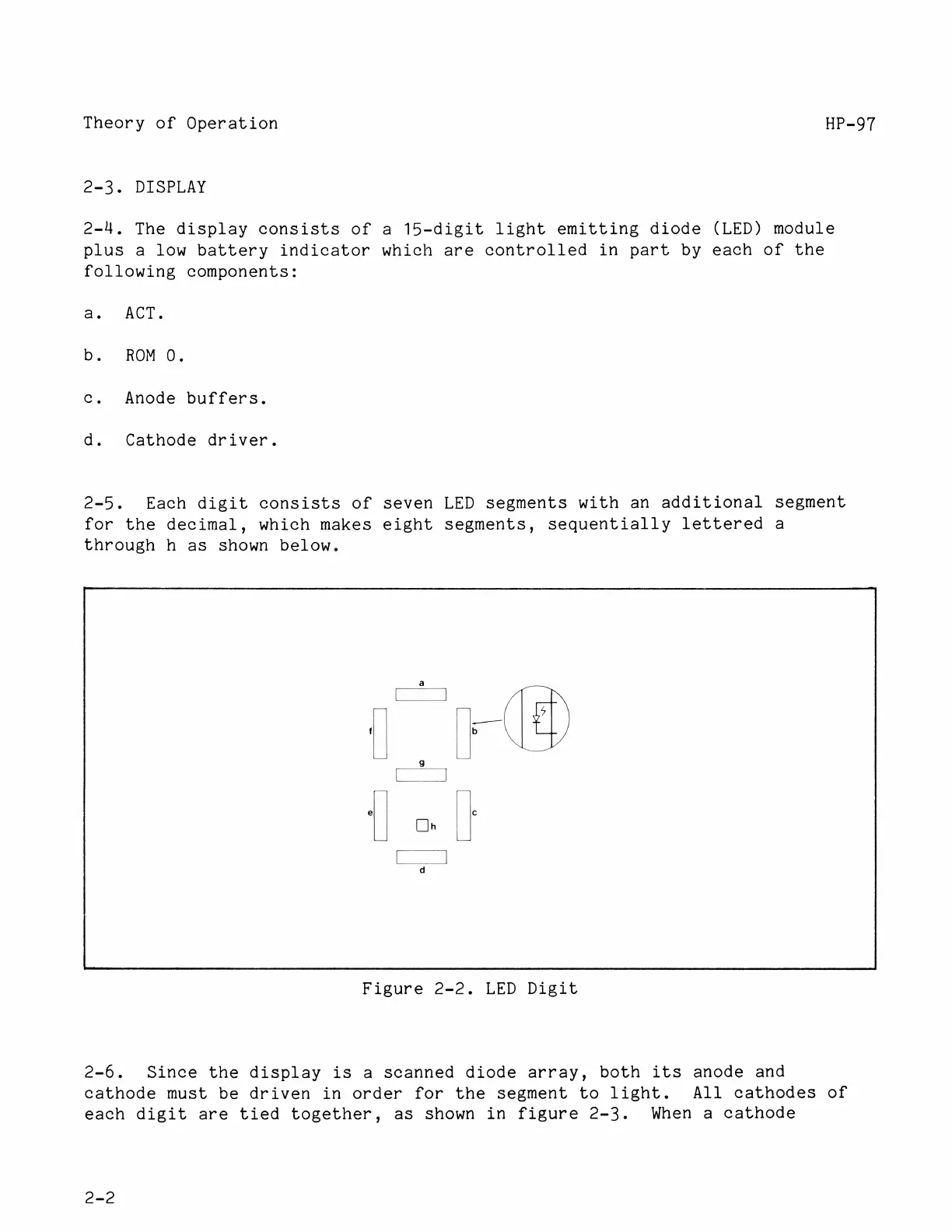

2-3.
DISPLAY
2-4,
The
display
consists
of
a
15-digit
light
emitting
diode
(LED)
module
plus
a
low
battery
indicator
which
are
controlled
in
part
by
each
of
the
following
components:
a.
ACT.
b.
ROM
0.
c.
Anode
buffers.
d.
Cathode
driver.
2-5.
Each
digit
consists
of
seven
LED
segments
with
an
additional
segment
for
the
decimal,
which
makes
eight
segments,
sequentially
lettered
a
through
h
as
shown
below.
Figure
2-2.
LED
Digit
2-6.
Since
the
display
is
a
scanned
diode
array,
both
its
anode
and
cathode
must
be
driven
in
order
for
the
segment
to
light.
All
cathodes
of
each
digit
are
tied
together,
as
shown
in
figure
2-3.
When
a
cathode
15
17
