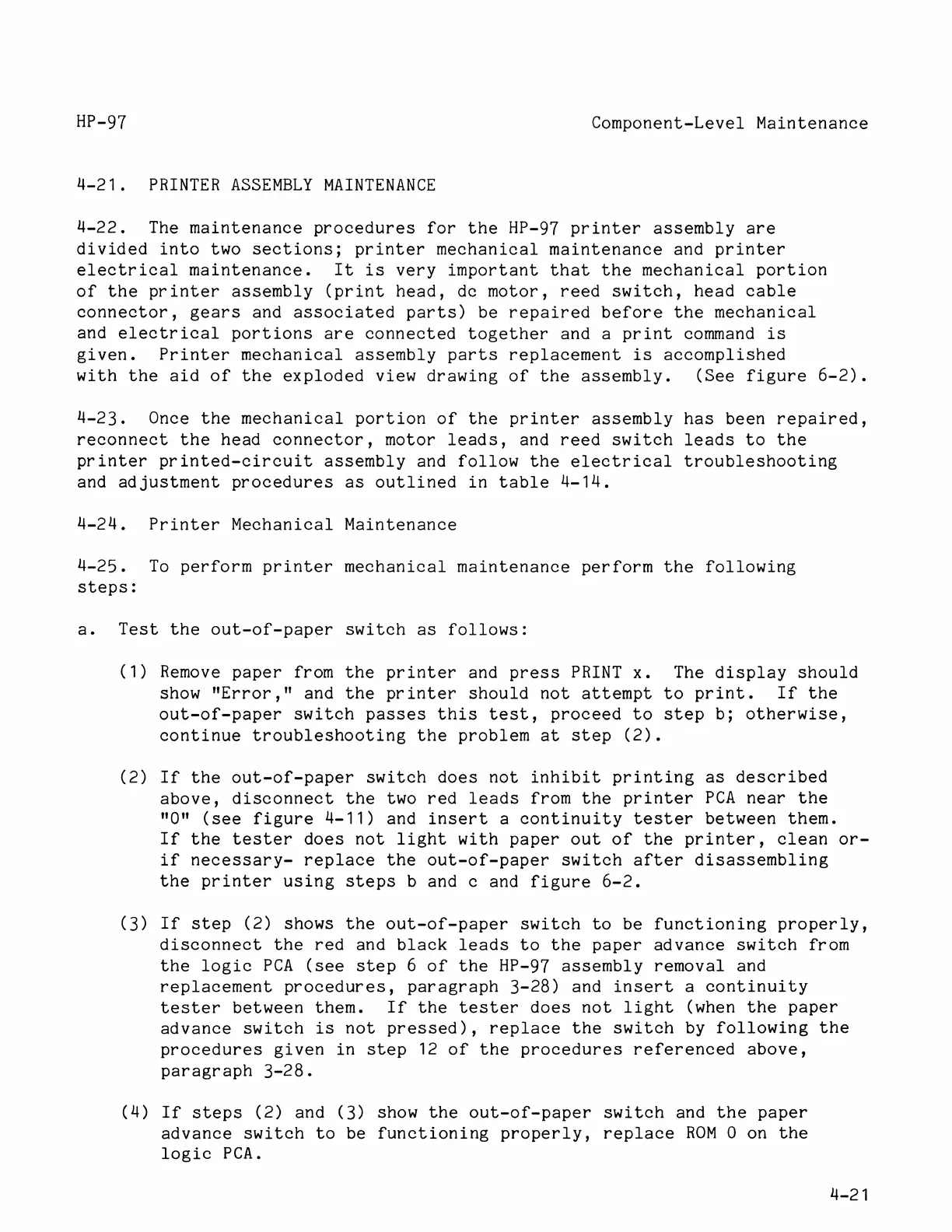

HP-97
Component-Level
Maintenance
4-21.
PRINTER
ASSEMBLY
MAINTENANCE
J-22.
The
maintenance
procedures
for
the
HP-97
printer
assembly
are
divided
into
two
sections;
printer
mechanical
maintenance
and
printer
electrical
maintenance.
It
is
very
important
that
the
mechanical
portion
of
the
printer
assembly
(print
head,
dc
motor,
reed
switch,
head cable
connector,
gears
and
associated
parts)
be
repaired
before
the
mechanical
and
electrical
portions
are
connected
together
and
a
print
command
is
given.
Printer
mechanical
assembly
parts
replacement
is
accomplished
with
the
aid
of
the
exploded
view
drawing
of
the
assembly.
(See
figure
6-2).
4-23.
Once
the
mechanical
portion
of
the
printer
assembly
has
been
repaired,
reconnect
the
head
connector,
motor
leads,
and
reed
switch
leads
to
the
printer
printed-circuit
assembly
and
follow
the
electrical
troubleshooting
and
ad
justment
procedures
as
outlined
in
table
4-14,.
L-24,
Printer
Mechanical
Maintenance
4-25.
To
perform
printer
mechanical
maintenance
perform
the
following
steps:
a.
Test
the
out-of-paper
switch
as
follows:
(1)
Remove
paper
from
the
printer
and
press
PRINT
x.
The
display
should
show "Error,"
and
the
printer
should
not
attempt
to
print.
If
the
out-of-paper
switch passes
this
test,
proceed
to
step
b;
otherwise,
continue
troubleshooting
the
problem
at
step
(2).
(2)
If
the
out-of-paper
switch
does
not
inhibit
printing
as
described
above,
disconnect
the
two
red
leads
from
the
printer
PCA
near
the
"O"
(see
figure
4-11)
and
insert
a
continuity
tester
between
them.
If
the
tester
does
not
light
with
paper
out
of
the
printer,
clean
or-
if
necessary-
replace
the
out-of-paper
switch
after
disassembling
the
printer
using
steps
b
and
¢
and
figure
6-2.
(3)
If
step
(2)
shows
the
out-of-paper
switch
to
be
functioning
properly,
disconnect
the red
and
black
leads
to
the
paper
advance
switch
from
the
logic
PCA
(see
step
6
of
the
HP-97
assembly
removal
and
replacement
procedures,
paragraph
3-28)
and
insert
a
continuity
tester
between
them.
If
the
tester
does
not
light
(when
the
paper
advance
switch
is
not
pressed),
replace
the
switch
by
following
the
procedures
given
in
step
12
of
the
procedures
referenced
above,
paragraph
3-28.
(4)
If
steps
(2)
and
(3)
show
the
out-of-paper
switch
and
the
paper
advance
switch
to be
functioning
properly,
replace
ROM
0
on
the
logic
PCA.
§-21
