Assembly-Level
Maintenance
HP-97

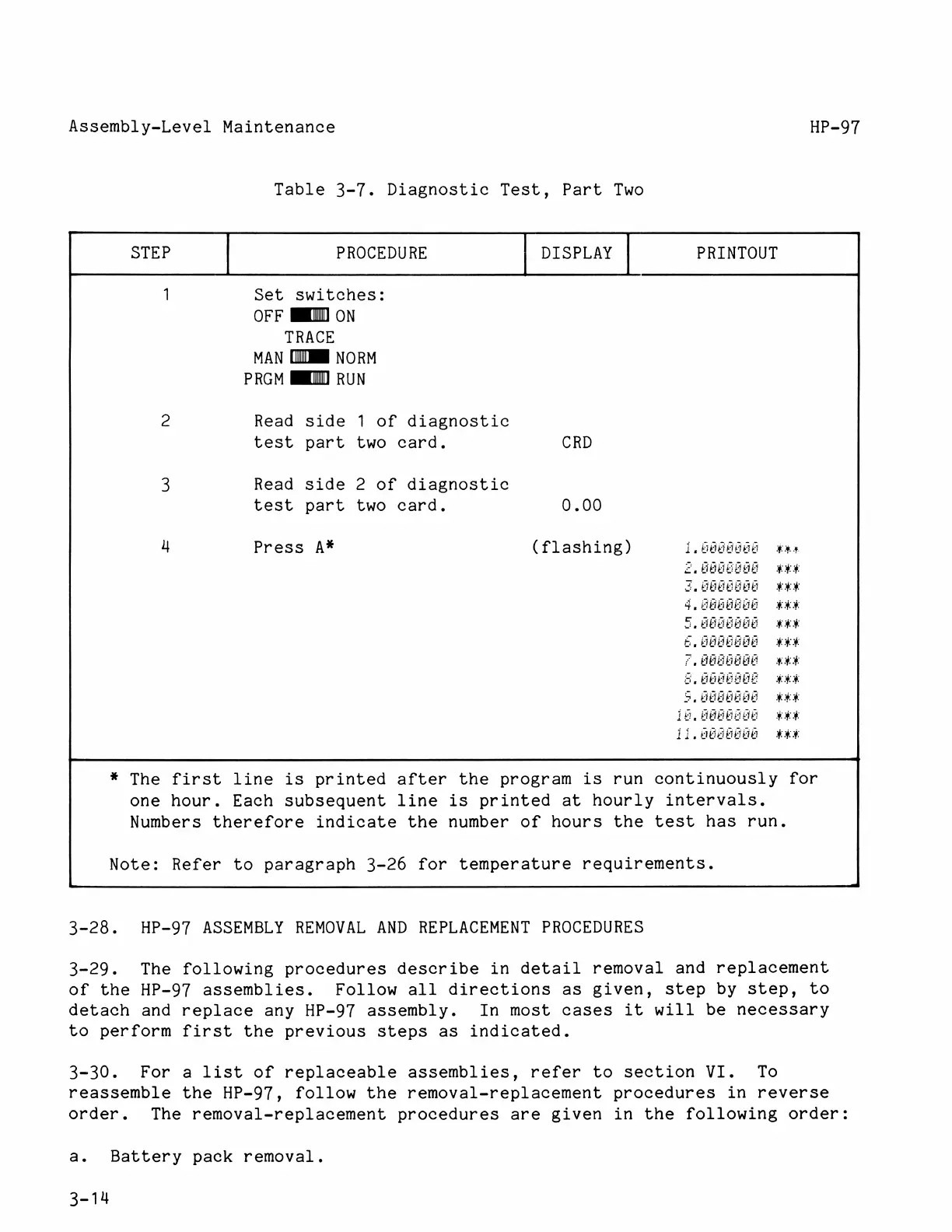

Table
3-7.
Diagnostic
Test,
Part
Two
STEP
PROCEDURE
DISPLAY
PRINTOUT
1
Set
switches:
OFF
EHII
ON
TRACE
MAN
(WM
NORM
PRGM
IHIIM
RUN
2
Read
side
1
of
diagnostic
test
part
two
card.
CRD
3
Read
side
2
of
diagnostic
test
part
two
card.
0.00
Yy
Press
A¥
(flashing)
.:
=z
n.';:n
G
=
-8
£
.-".
¥
The
first
line
is
printed
after
the
program
is
run
continuously
for
one
hour.
Each
subsequent
line
is
printed
at
hourly
intervals.
Numbers
therefore
indicate
the
number
of
hours
the
test
has
run.
Note:
Refer
to
paragraph
3-26
for
temperature
requirements.
3-28.
HP-97
ASSEMBLY
REMOVAL
AND
REPLACEMENT
PROCEDURES
3-29.
The
following
procedures
describe
in
detail
removal
and
replacement
of
the
HP-97
assemblies.
Follow
all
directions
as
given,
step
by
step,
to
detach
and
replace
any
HP-97
assembly.
In
most
cases
it
will
be
necessary
to
perform
first
the
previous
steps
as
indicated.
3-30.
For
a
list
of
replaceable
assemblies,
refer
to
section
VI.
To
reassemble
the
HP-97,
follow
the
removal-replacement
procedures
in
reverse
order.
The
removal-replacement
procedures
are
given
in
the
following
order:
a.
Battery
pack
removal.
3-14
39
41
