HP Switch zl Modules
Locate Ports This button is used to display the currently associated downlink and uplink ports.
The first press of the button lights the Downlink Radio Ports LED on the module and
also lights all associated downlink port LEDs on the other modules in the switch chassis.
Downlink ports connect to devices such as wireless access points or radio ports. If the
button is not pressed again within a few seconds the LEDs turn off and the button is
reset to the first position. Upon initial installation there are no switch ports that are
configured as downlink ports associated with the Wireless Edge Services modules. For
information on completing this configuration, see the Management and Configuration
Guide on the HP Web site. For the latest version, visit the HP networking products Web
site www.hp.com/networking/support.
The second press of the button lights the Uplink Network Ports LED on the module and
al
so lights all associated uplink port LEDs on the other associated modules in the switch
chassis. Uplink ports are those typically used for connecting to the fabric. If the button
is not pressed again within a few seconds the LEDs will turn off and the button is reset
to the first position.
A third press of the button turns all accessible port LEDs off and resets the button to
th
e first position. Also see “Wireless Edge Module LEDs” on page 14.

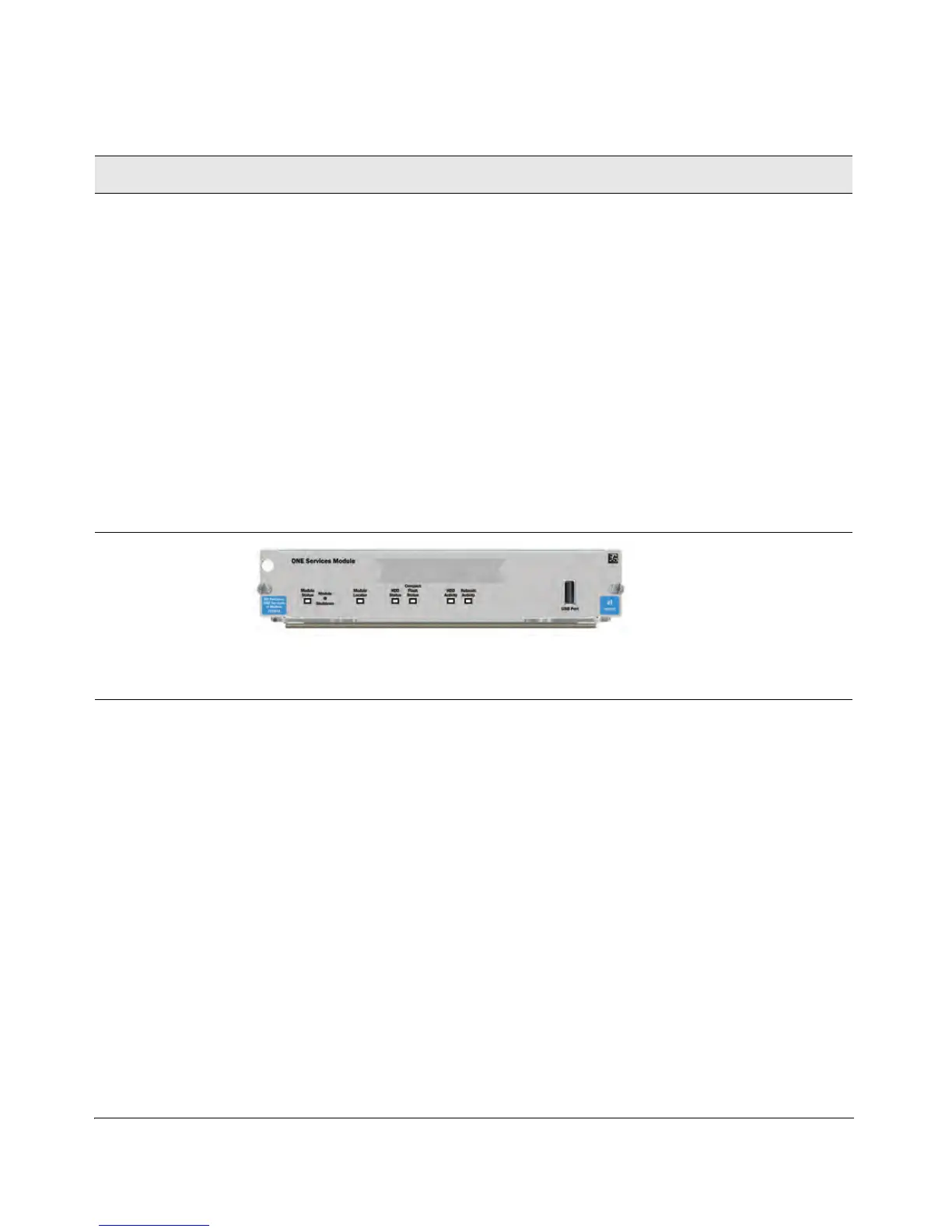

HP ONE Services zl
Module (J9154x)
4,5
Where “x” is the
cur
rent version letter,
A, B, and so on.
There are no external ports on the
J9154x. The module provides
se
r
ver resources as a platform to
run HP certified applications
within a zl switch slot.
For configuration information see
the Getting Started Guide that
came with the Module.
