HP L1906 Service Manual

19" LCD Color Monitor HP L1906
33

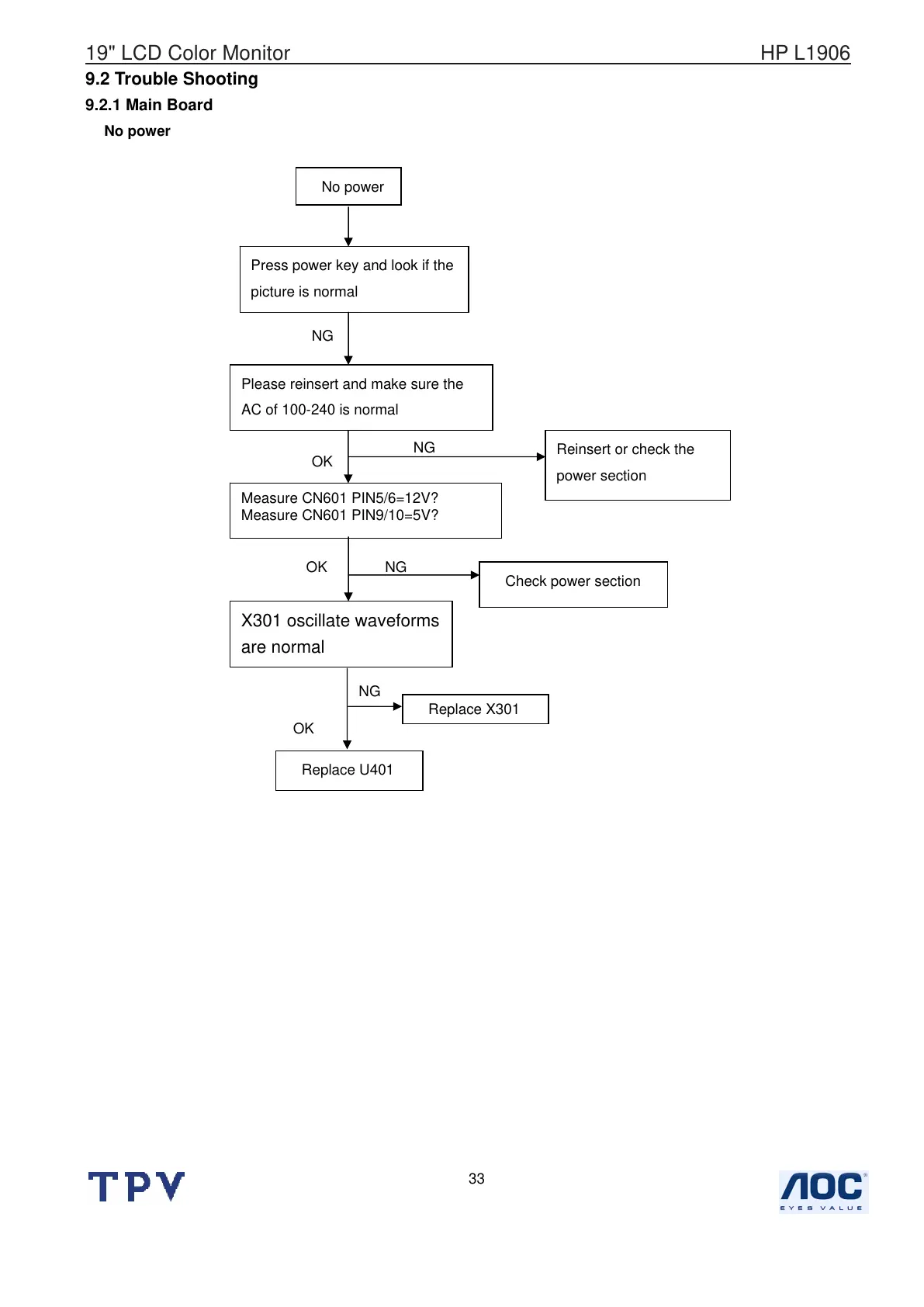

9.2 Trouble Shooting
9.2.1 Main Board
No power
No power
Press power key and look if the
picture is normal
Please reinsert and make sure the
AC of 100-240 is normal
Reinsert or check the
power section
X301 oscillate waveforms
are normal
Measure CN601 PIN5/6=12V?
Measure CN601 PIN9/10=5V?
OK
OK
NG
NG
NG
Check power section
Replace U401
Replace X301
OK
NG

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
