HP L1906 Service Manual

19" LCD Color Monitor HP L1906
39

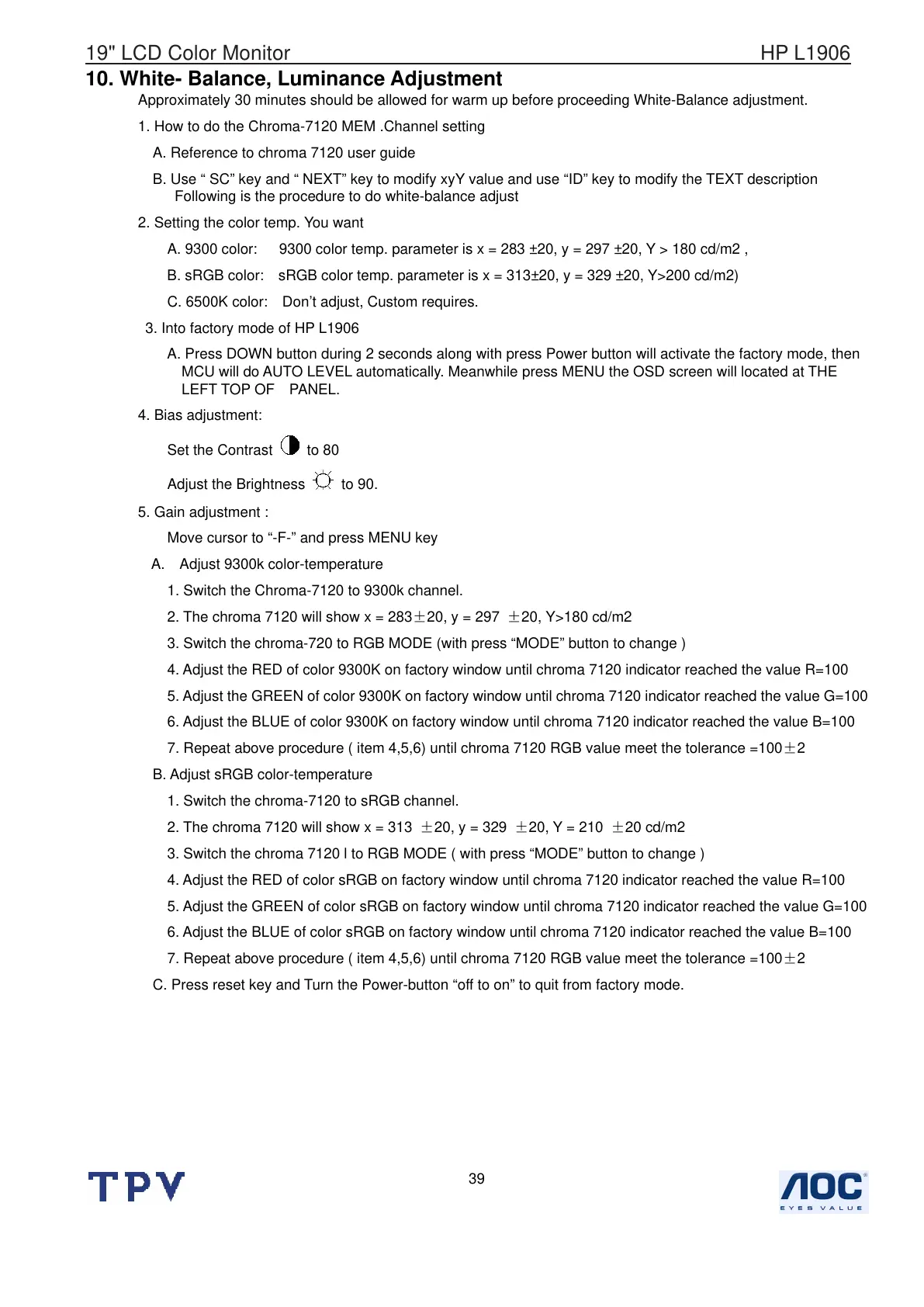

10. White- Balance, Luminance Adjustment
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM .Channel setting
A. Reference to chroma 7120 user guide
B. Use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the TEXT description
Following is the procedure to do white-balance adjust
2. Setting the color temp. You want
A. 9300 color: 9300 color temp. parameter is x = 283 ±20, y = 297 ±20, Y > 180 cd/m2 ,
B. sRGB color: sRGB color temp. parameter is x = 313±20, y = 329 ±20, Y>200 cd/m2)
C. 6500K color: Don’t adjust, Custom requires.
3. Into factory mode of HP L1906
A. Press DOWN button during 2 seconds along with press Power button will activate the factory mode, then
MCU will do AUTO LEVEL automatically. Meanwhile press MENU the OSD screen will located at THE
LEFT TOP OF PANEL.
4. Bias adjustment:
Set the Contrast
to 80
Adjust the Brightness
to 90.
5. Gain adjustment :
Move cursor to “-F-” and press MENU key
A. Adjust 9300k color-temperature
1. Switch the Chroma-7120 to 9300k channel.
2. The chroma 7120 will show x = 283±20, y = 297 ±20, Y>180 cd/m2
3. Switch the chroma-720 to RGB MODE (with press “MODE” button to change )
4. Adjust the RED of color 9300K on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color 9300K on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE of color 9300K on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
B. Adjust sRGB color-temperature
1. Switch the chroma-7120 to sRGB channel.
2. The chroma 7120 will show x = 313 ±20, y = 329 ±20, Y = 210 ±20 cd/m2
3. Switch the chroma 7120 l to RGB MODE ( with press “MODE” button to change )
4. Adjust the RED of color sRGB on factory window until chroma 7120 indicator reached the value R=100
5. Adjust the GREEN of color sRGB on factory window until chroma 7120 indicator reached the value G=100
6. Adjust the BLUE of color sRGB on factory window until chroma 7120 indicator reached the value B=100
7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the tolerance =100±2
C. Press reset key and Turn the Power-button “off to on” to quit from factory mode.

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
