HP L1906 Service Manual

19" LCD Color Monitor HP L1906
6

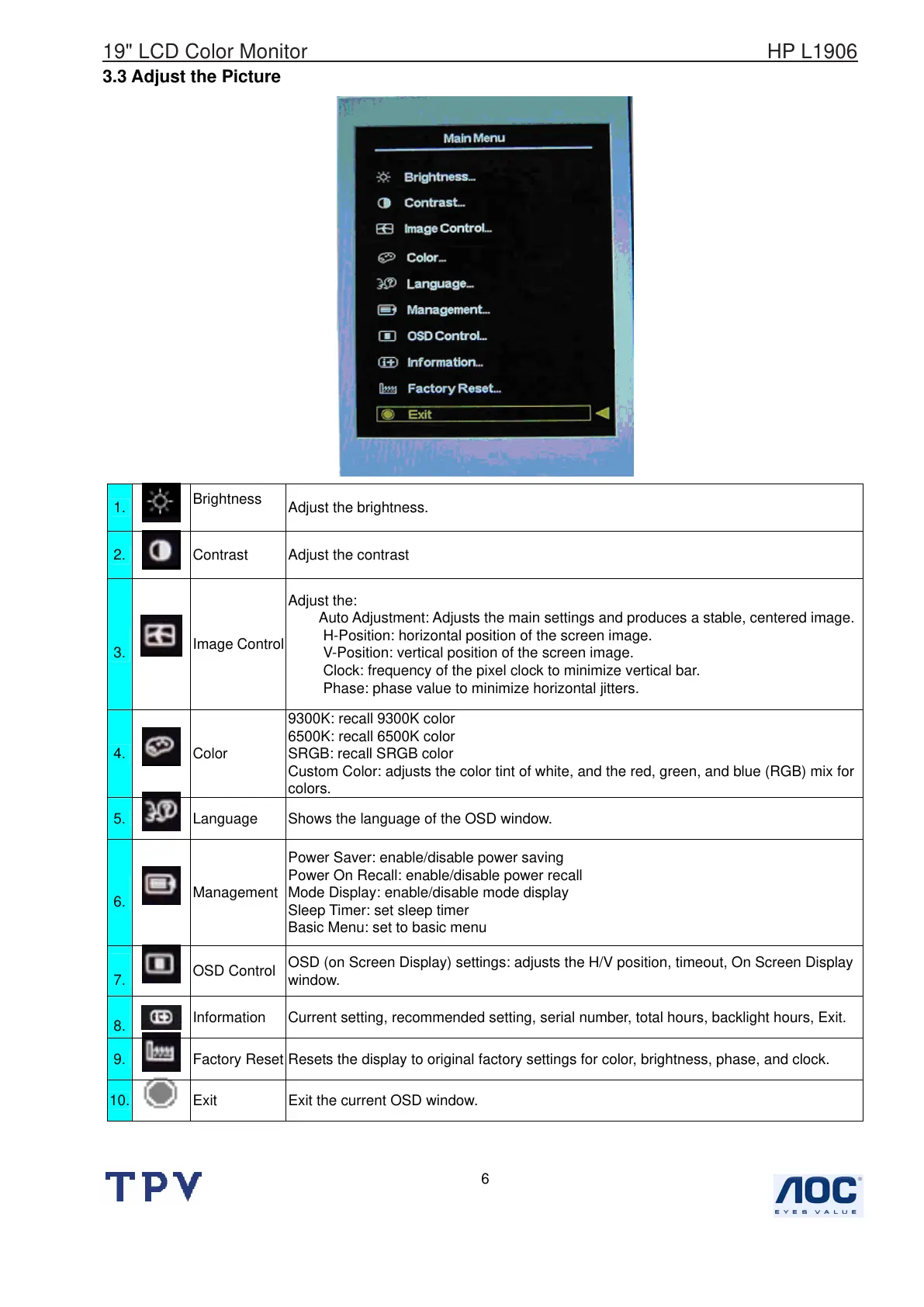

3.3 Adjust the Picture
1.
Brightness
Adjust the brightness.
2.
Contrast Adjust the contrast
3.
Image Control
Adjust the:
Auto Adjustment: Adjusts the main settings and produces a stable, centered image.
H-Position: horizontal position of the screen image.
V-Position: vertical position of the screen image.
Clock: frequency of the pixel clock to minimize vertical bar.
Phase: phase value to minimize horizontal jitters.
4.
Color
9300K: recall 9300K color
6500K: recall 6500K color
SRGB: recall SRGB color
Custom Color: adjusts the color tint of white, and the red, green, and blue (RGB) mix for
colors.
5.
Language Shows the language of the OSD window.
6.
Management
Power Saver: enable/disable power saving
Power On Recall: enable/disable power recall
Mode Display: enable/disable mode display
Sleep Timer: set sleep timer
Basic Menu: set to basic menu
7.
OSD Control
OSD (on Screen Display) settings: adjusts the H/V position, timeout, On Screen Display
window.
8.
Information Current setting, recommended setting, serial number, total hours, backlight hours, Exit.
9.
Factory Reset Resets the display to original factory settings for color, brightness, phase, and clock.
10.
Exit Exit the current OSD window.

HP L1906 Specifications

General

3D	No
Pixel pitch	0.294 x 0.294 mm
Display diagonal	19 \
Display resolution	1280 x 1024 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewing angle, vertical	130 °
Contrast ratio (dynamic)	-
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	140 °
Display brightness (typical)	270 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
DVI-D ports quantity	0
Tilt angle range	0 - 15 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	37 W
Power consumption (standby)	2 W
Power consumption (typical)	33 W
Certification	CISPR, VCCI, CSA, TUV, GS, CCC, MIC, FCC, UL, GOST, SASO
Product color	Black, Silver
Country of origin	China
Market positioning	Business
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Package weight	7000 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	203 mm
Height (with stand)	427 mm
Weight (with stand)	5300 g
Depth (without stand)	59 mm
Width (without stand)	422 mm
Height (without stand)	362 mm
Weight (without stand)	- g
