No mounting hardware used
1. Use the 4mm M3 screws provided with the tape drive. Check that the holes in the chassis are
aligned with the holes in the sides of the drive and use a regular Phillips screwdriver to secure
the M3 screws, as shown in the following figure.
If you cannot tighten the screws, use the washers provided in the pack.
1. M3 screws, supplied with tape drive

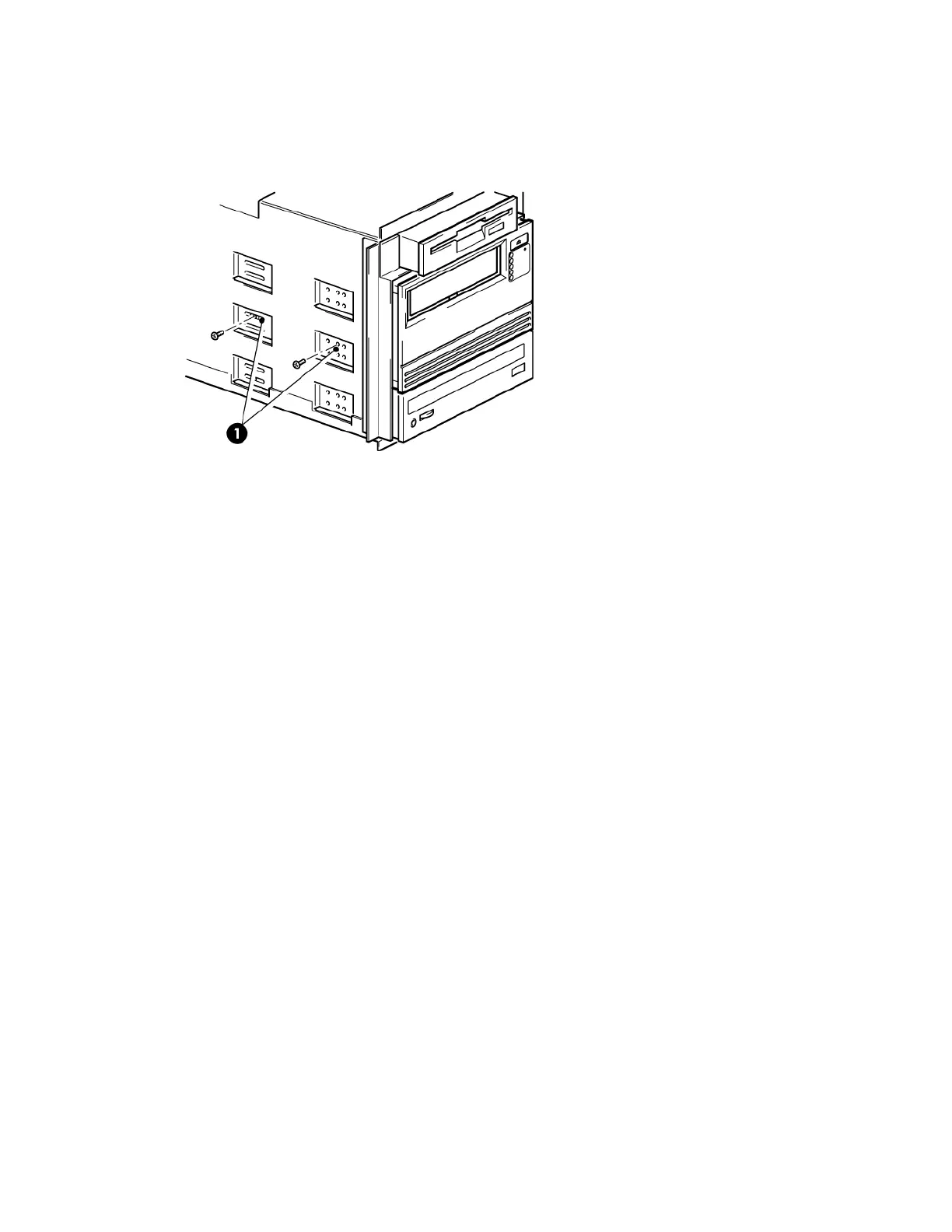

Figure 11 Securing the tape drive, no mounting hardware used
2. Ensure blanking plates are in place over empty bays and replace the cover on the server.
Secure the drive 17
