4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions” sections in
the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the area
for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
• Press fixture
• Working table
• Screwdriver
• Knife
• Gloves
• Cleaning cloth
• ESD protection

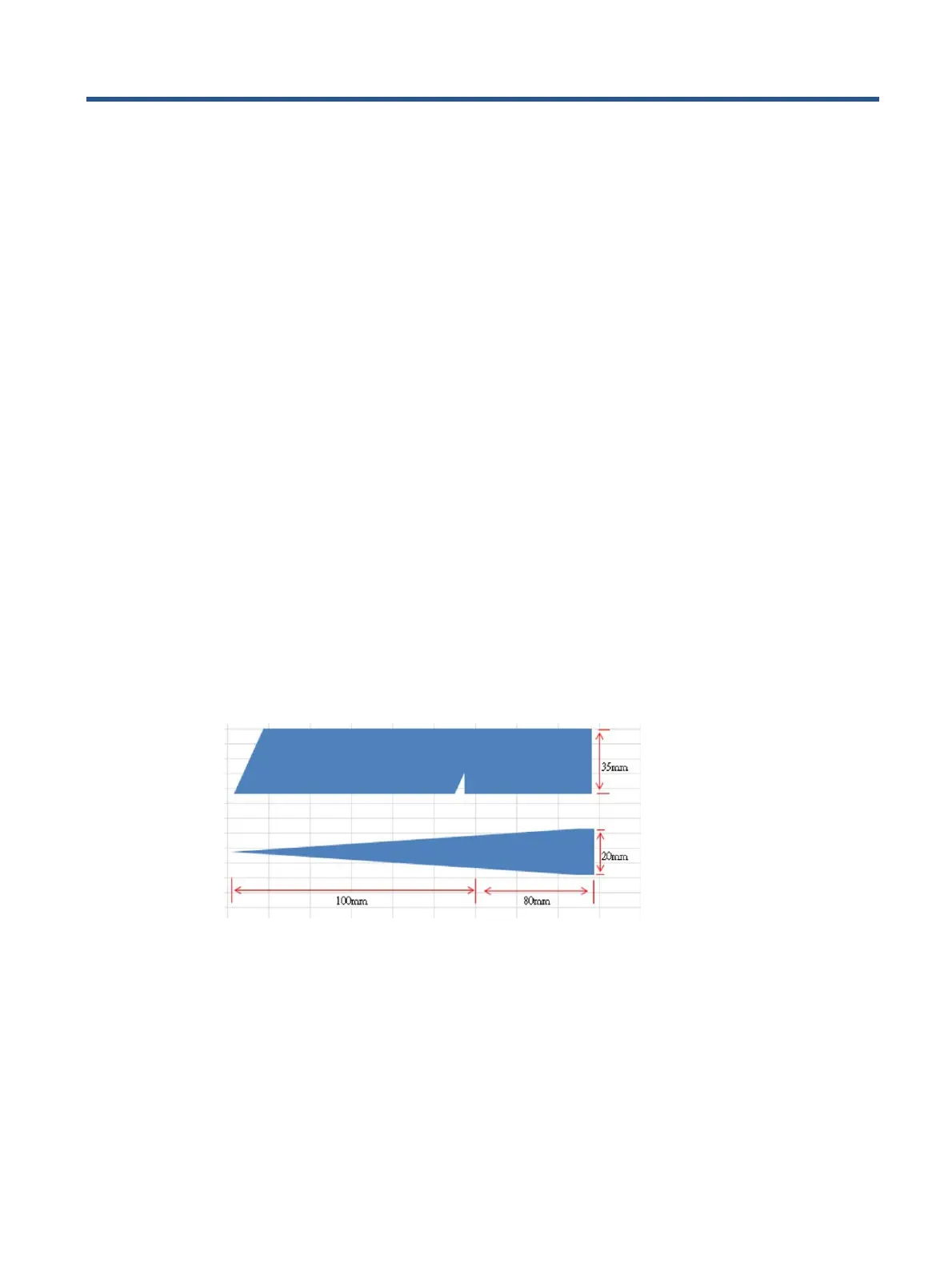

• Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page
9.
Remove the Rear Cover:

HP M27fw Specifications

General

Color depth	8 bit
Color gamut	99 %
Screen shape	Flat
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display diagonal (metric)	68.6 cm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	23 W
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	126 mm
Package width	690 mm
Package height	430 mm
Package weight	5800 g
Tilt angle range	-5 - 25 °
Product color	Silver, White
Market positioning	Home

Weight and Dimensions

Depth (with stand)	188.2 mm
Width (with stand)	607.9 mm
Height (with stand)	437.3 mm
Depth (without stand)	34.2 mm
Height (without stand)	356 mm
Weight (without stand)	3200 g
