HDMI connector P200/P201

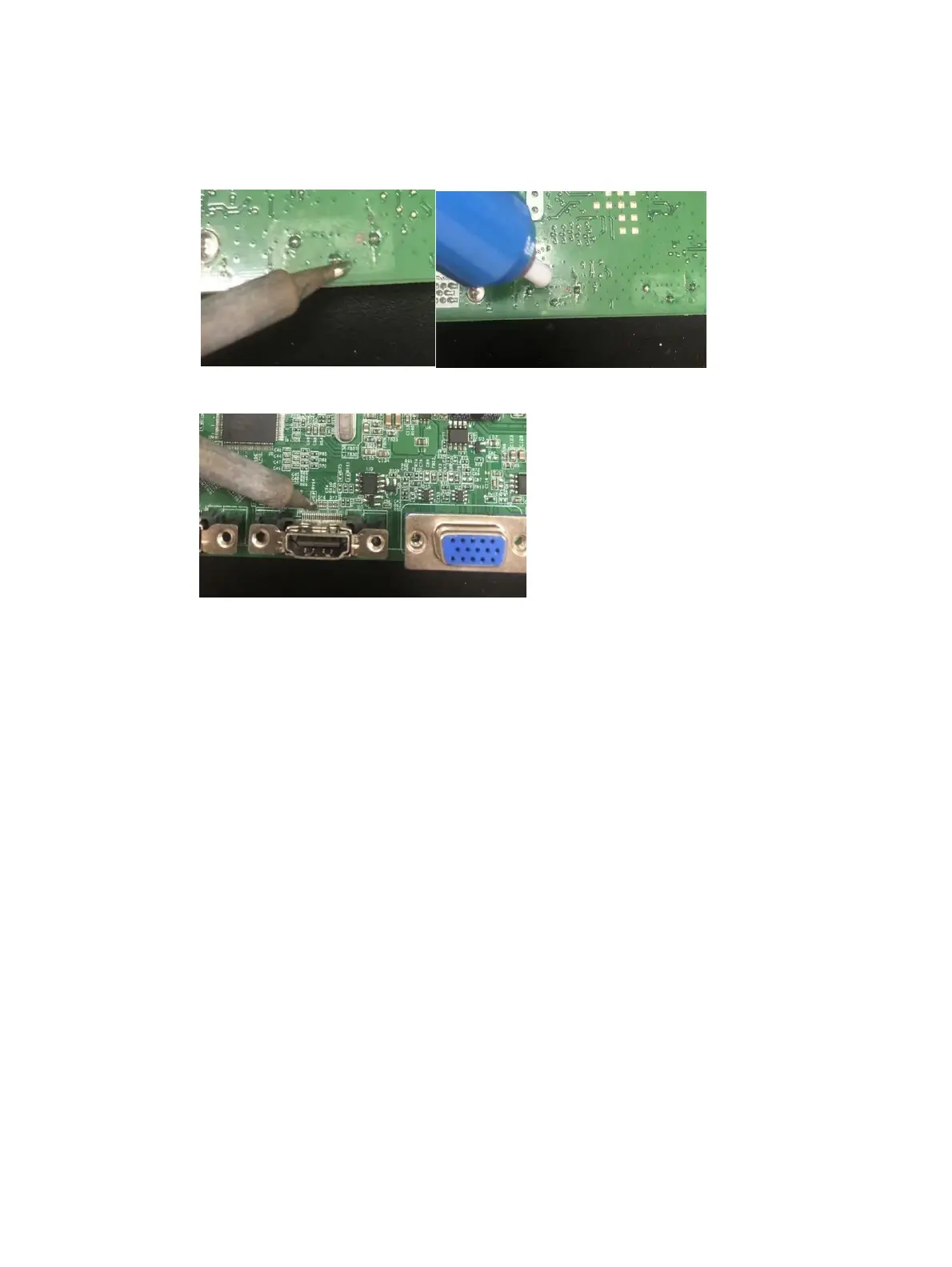

Repair the HDMI connector:
1) Use a soldering iron and a disordering pump to remove as much solder as possible from the pin.
2) Use a soldering iron or hot air gun to melt the solder on the pins.
3) Lift the P200/P201 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.

HP M27fw Specifications

General

Color depth	8 bit
Color gamut	99 %
Screen shape	Flat
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Contrast ratio (typical)	1000:1
Display diagonal (metric)	68.6 cm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	23 W
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	126 mm
Package width	690 mm
Package height	430 mm
Package weight	5800 g
Tilt angle range	-5 - 25 °
Product color	Silver, White
Market positioning	Home

Weight and Dimensions

Depth (with stand)	188.2 mm
Width (with stand)	607.9 mm
Height (with stand)	437.3 mm
Depth (without stand)	34.2 mm
Height (without stand)	356 mm
Weight (without stand)	3200 g
