4–12
Maintenance and Serv
ice Gui
de
Illustr
ated P
ar
ts Cat
alog
4.3
Miscell
an
eous P
las
tic
s Kit
T
able 4-2

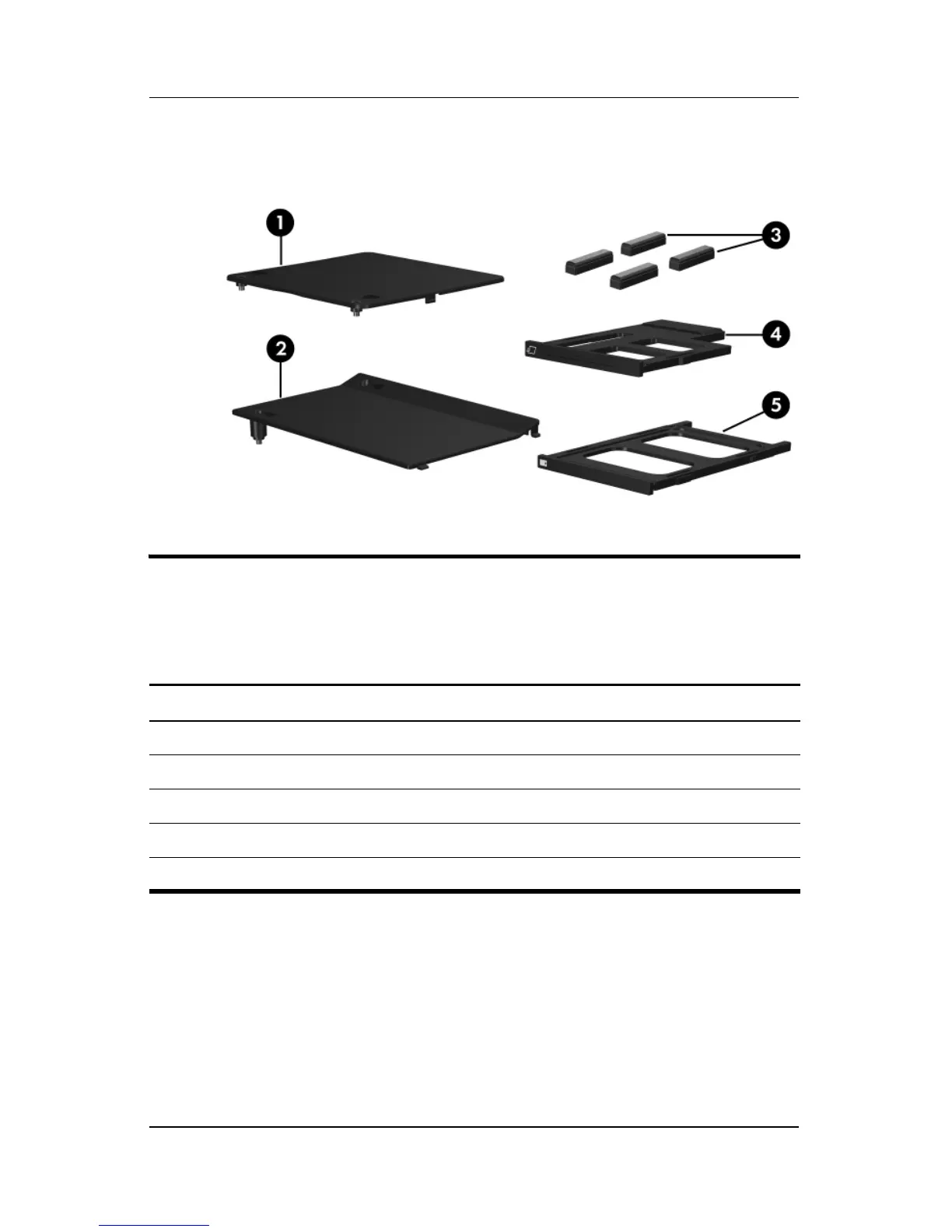

Miscellaneous Plastics Kit
Spare P
art Number 393593-001
Item
Description
1
Memor
y module compar
tment cov
e
r (includes 2 captiv
e screws)
2
Hard drive co
v
er (includes 2 captive scre
ws)
3
Notebook f
eet (4)
4
ExpressCard slot space sav
er
5
PC Card slot space sa
ver
79
81
Table of Contents
Default Chapter
3
Table of Contents
3
1 Product Description
5
Features
6
Resetting the Notebook
8
Power Management
9
External Components
10
Right-Side Components
13
Left-Side Components
14
Rear Panel Components
17
Top Components
20
Touchpad Components
23
Bottom Components
24
Design Overview
26
2 Troubleshooting
27
Computer Setup
27
Accessing Computer Setup
28
Computer Setup Defaults
28
Selecting from the File Menu
29
Selecting from the Security Menu
30
Selecting from the Tools Menu
31
Selecting from the Advanced Menu
32
Troubleshooting Flowcharts
33
Flowchart 2.1—Initial Troubleshooting
35
Flowchart 2.2—No Power, Part
36
Flowchart 2.3—No Power, Part
37
Flowchart 2.4—No Power, Part
38
Flowchart 2.5—No Power, Part
39
Flowchart 2.6—No Video, Part
40
Flowchart 2.7—No Video, Part
41
Flowchart 2.9—No Operating System (Os) Loading
43
Flowchart 2.13—No os Loading, Diskette Drive
47
3 Software Update and Recovery
55
Software Updates
55
Accessing Computer Information
56
Obtaining the Support Software CD
57
Software Updates and the Hp Web Site
57
Downloading a Rom Update
57
Downloading Other Software
59
System Recovery
60
Safeguarding Your Data
61
Altiris Local Recovery
61
Using System Restore Points
62
Creating a System Restore Point
62
Restoring to a Restore Point
63
Reinstalling Applications
63
Reinstalling Applications from the Hard Drive
64
Reinstalling Applications from Discs
64
Repairing the Operating System
64
Reinstalling the Operating System
66
Reinstalling Device Drivers and Other
68
4 Illustrated Parts Catalog
69
Serial Number Location
69
Notebook Major Components
70
Miscellaneous Plastics Kit
80
Miscellaneous Cable Kit
81
Mass Storage Devices
82
Miscellaneous (Not Illustrated)
84
Sequential Part Number Listing
86
Removal and Replacement Preliminaries
93
Tools Required
93
Service Considerations
94
Preventing Damage to Removable Drives
95
Preventing Electrostatic Damage
96
Packaging and Transporting Precautions
97
Workstation Precautions
98
Grounding Equipment and Methods
99
Typical Electrostatic Voltage Levels
100
6 Removal and Replacement Procedures
101
Serial Number
101
Disassembly Sequence Chart
102
Preparing the Notebook for Disassembly
104
Hard Drive
106
Notebook Feet
109
Bluetooth Board
110
Memory Module
112
Optical Drive
114
Switch Cover
116
Power Button Board
120
Keyboard
122
Fan
126
Heat Sink
127
Processor
130
Button Board
132
Mini PCI Communications Card
134
Display Assembly
136
Top Cover
140
Touchpad
144
RTC Battery
146
Speaker
148
System Board
150
PC Card Assembly
154
7 Specifications
157
Hard Drives
161
System Dma
170
System Interrupts
171
System Memory Map
176
Connector Pin Assignments
177
Universal Serial Bus
178
External Monitor
180
Power Cord Set Requirements
183
Conductor Power Cord Set
183
General Requirements
184
Screw Listing
187
