Speakers
Description Spare part number
Speakers (includes left and right speakers and cable) 809316-001
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 27).
5. Remove the optical drive (see
Optical drive on page 28).
6. Remove the bottom cover (see
Bottom cover on page 32).
7. Remove the system board (see
System board on page 48).

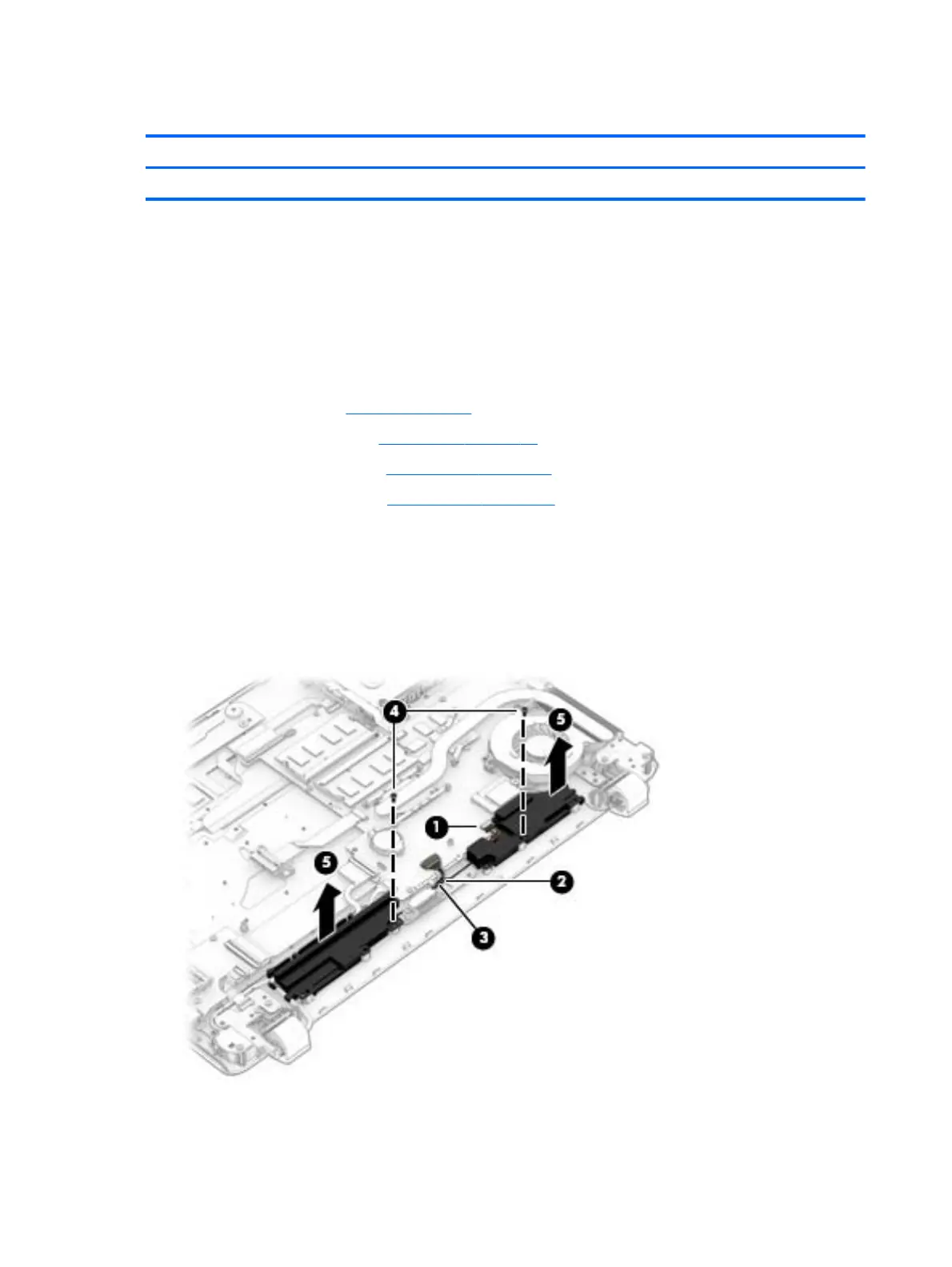

To remove the speakers:
1. Remove the speaker wire from the clips between the speakers (1).
2. Remove the display cable from the channel at the top of the left speaker (2), (3).
3. Remove the two Phillips screws (4)
4. Remove the speakers from the computer (5).
Reverse this procedure to install the speakers.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
