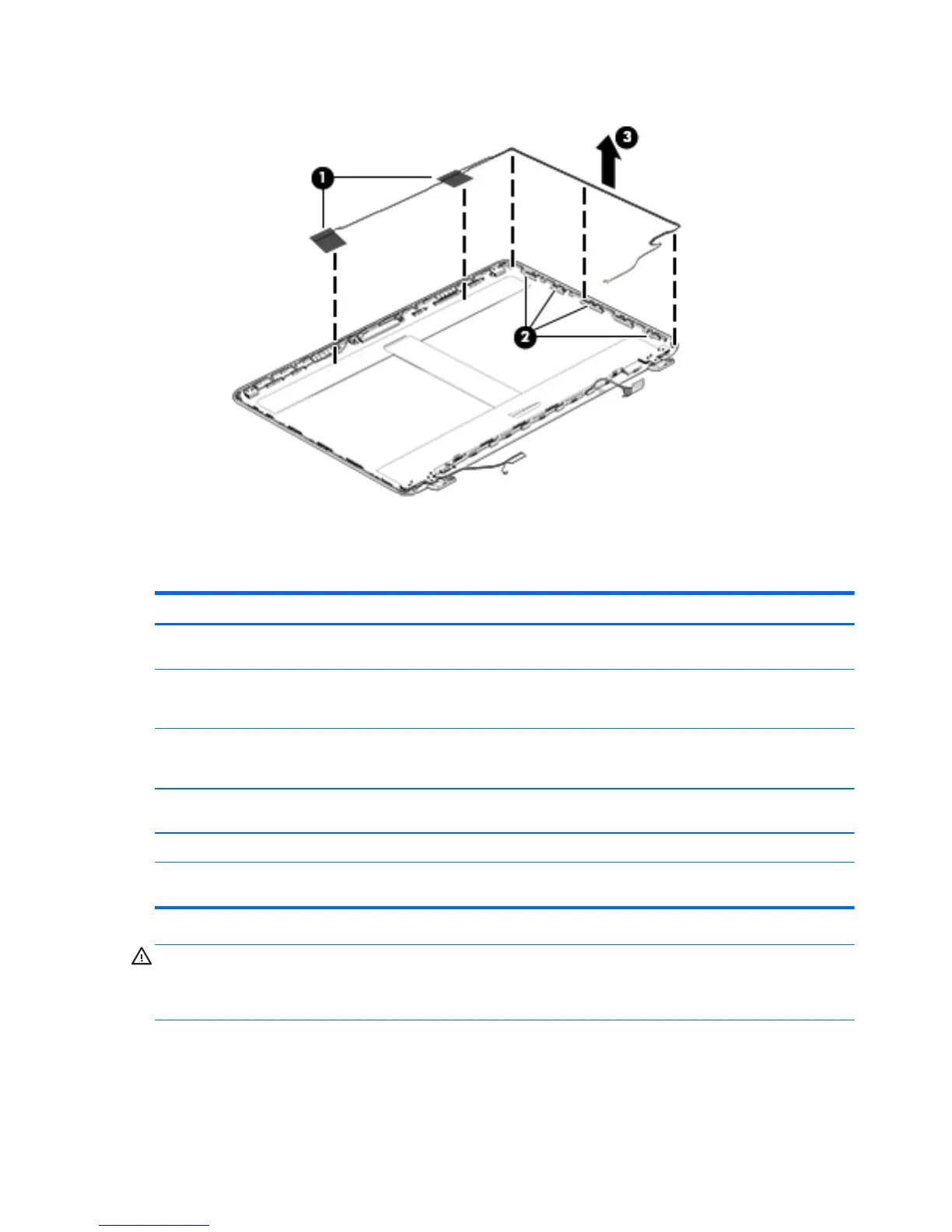

d. Remove the wireless antenna from the retaining channels (2), and lift the antenna (3)
Reverse this procedure to install the display panel.
WLAN module
Description Spare part number
Realtek RT8188EE 802.11 bgn 1x1 Wi-Fi adapter, for use only on computer models equipped
with Intel processors for HP Pavilion 17 and 15 Notebook PC computer models
709848-005
Broadcom BCM43142 802.11 bgn 1x1 Wi-Fi + BT4.0 HMC combo adapter, for use only on
computer models equipped with Intel processors for HP Pavilion 17 and 15 Notebook PC
computer models available for Windows 8.1 and Windows 7
753076-005
Intel Dual Band Wireless-AC 3160 802.11 ac 1x1 WiFi + BT 4.0 combo adapter, for use only on
computer models equipped with Intel processors for HP Pavilion 17 and 15 Notebook PC
computer models
710662-005
Realtek RT8723BE 802.11bgn 1x1 Wi-Fi + BT4.0 Combo Adapter for HP Pavilion 17 Notebook
PC computer models available for Windows 8.1 and Windows 7
753077-005
RTL8188EE 802.11BGN 1x1 available for Windows 8.1 and Windows 7 709848-005
Broadcom BCM 4352 WLAN 802.11 AC+BT4 2x2HMC for HP Pavilion 15 AMD computer
models available for Windows 8.1 and Windows 7
724935-005
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless
devices in your country or region. If you replace the module and then receive a warning message,
remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
96 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
