3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 76),
5. Remove the optical drive.
6. Remove the top cover from the base enclosure (see
Base enclosure on page 80).
7. Remove the WLAN module (see
WLAN module on page 96).
8. Remove the subwoofer (see
Subwoofer (select models only) on page 102).
9. Remove the system board (see
System board on page 106).

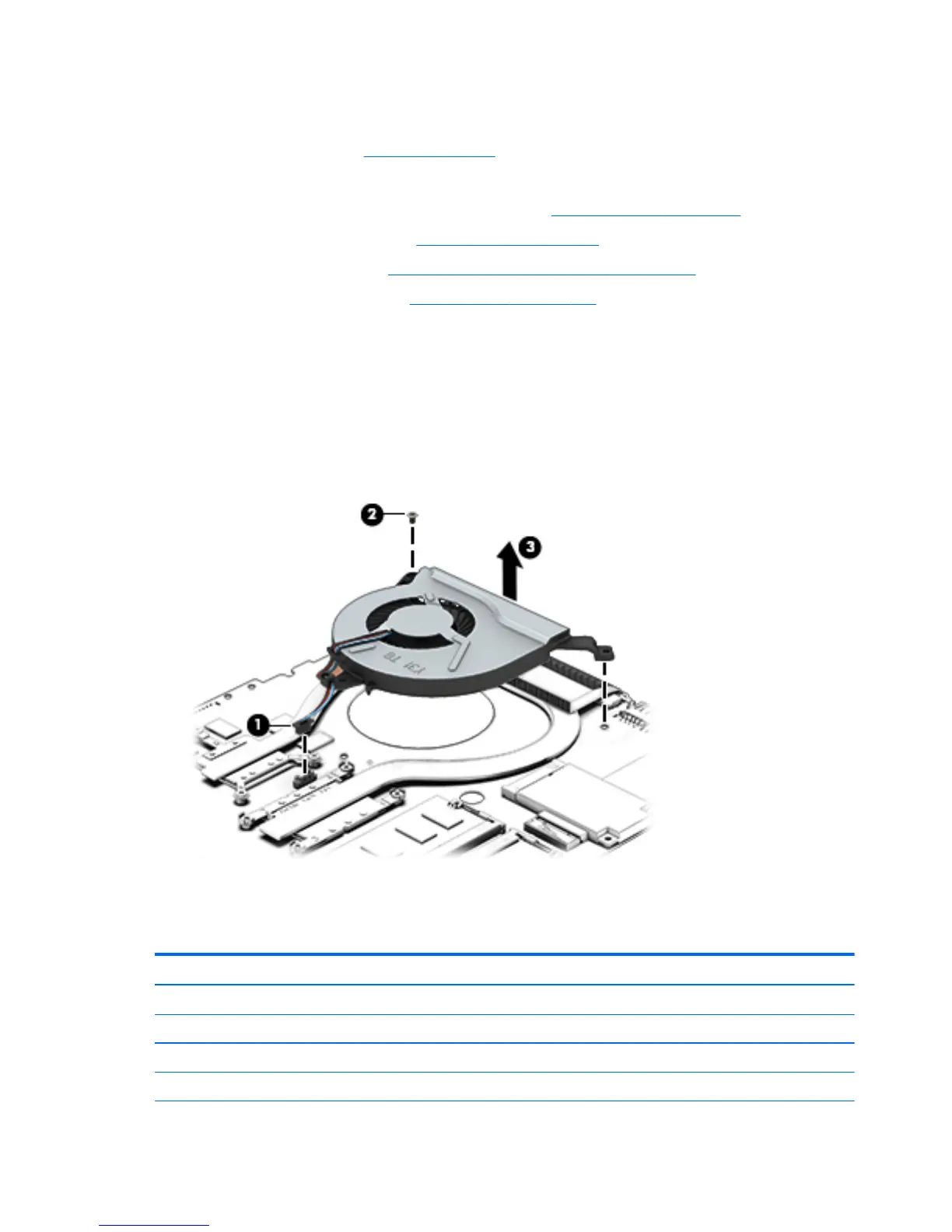

Remove the fan:
1. Turn the system board upside down.
2. Disconnect the fan cable from the system board, and then remove the piece of tape that secures
the fan to the heat sink (1).
3. Remove the 3 screws securing the fan to the unit (2) and lift the fan to remove it (3).
4. Lift the fan (4) to remove it.
Reverse this procedure to install the fan.
Heat sink
Description Spare part number
For use with HP Pavilion 15 Notebook PC computer models:
For use only on computer models with Intel processors discrete memory 19 W 762524-001
For use only on computer models equipped with AMD processors and UMA graphics 19 W 767339-001
For use only on computer models equipped with AMD processors and discrete graphics 19W 767340-001
120 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 17 Specifications

General

Bus type	DMI
Stepping	L1
Tjunction	90 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3110M
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3100 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	24
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel HM76 Express
Memory slots	2x SO-DIMM
Internal memory	6 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 2 + 1 x 4 GB
HDD size	2.5 \
HDD speed	5400 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Number of HDDs installed	1
Number of SSDs installed	0
Display surface	Gloss
Display diagonal	17.3 \
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Disc types supported	CD, DVD
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card memory	1.65 GB
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Audio system	DTS Sound+
Front camera resolution	1280 x 720 pixels
WWAN	Not installed
Data network	Not supported
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Keyboard layout	-
Pointing device	Touchpad
Operating system installed	Windows 8
Form factor	Clamshell
Product type	Laptop
Product color	Black, Silver
Country of origin	China
Processor code	SR0N2
Processor ARK ID	65700
Processor package size	37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery life (max)	- h
Number of battery cells	6
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
Cables included	AC
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 4570 m
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth	267 mm
Width	420 mm
Height	32.8 mm
Weight	2900 g
