HP Pavilion TouchSmart 15 User Manual

▲

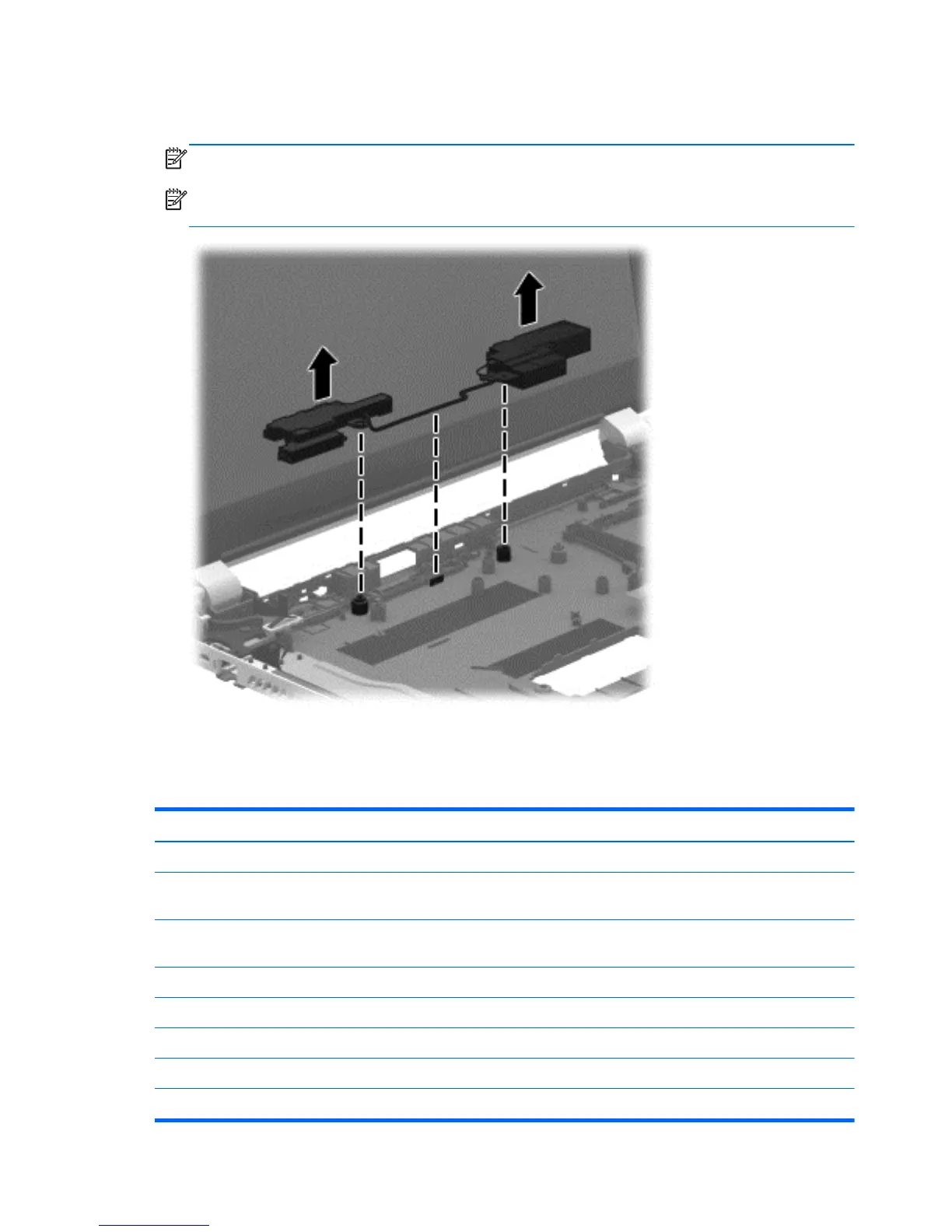

Remove the speakers by lifting up on the clip on the right side speaker and lifting the speakers.
Carefully and gently lift the speaker wire connecting the left and right speakers.
NOTE: The speaker connection cable was removed when removing the system board.
NOTE: The speakers include rubber isolators that are installed in the screw holes. These isolators
are crucial to the performance of the speakers.
Reverse this procedure to install the speaker.
Display assembly
Description Spare part number
Display bezel (includes 2 rubber screws) 725617-001
15.6-in, BrightView, HD, LED, SVA display panel (screws included in the screw kit, spare
part number 732082-001)
732080-001
15.6-in, BrightView, HD, LED, SVA Touchscreen display panel (For Touchscreens, the
screws spare part number is 732083-001)
In aluminum metal finish 732073-001
In sparkling black finish 732074-001
In pearl white finish 737170-001
In flyer red finish 737171-001
In revolutionary blue finish 737172-001
94 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion TouchSmart 15 Specifications

General

Processor cache	1 MB
Processor cores	2
Processor family	AMD A4
Processor socket	Socket FP2 (µBGA-827)
Processor frequency	1.9 GHz
Processor cache type	L2
Processor manufacturer	AMD
Processor boost frequency	2.4 GHz
Motherboard chipset	AMD A70M
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory form factor	SO-DIMM
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB
LightScribe	No
AC adapter included	Yes
HDD speed	5400 RPM
SSD capacity	0 GB
HDD interface	SATA
Storage media	HDD
Total storage capacity	1000 GB
Compatible memory cards	MMC, SD, SDHC, SDXC
Number of HDDs installed	1
Number of SSDs installed	0
Display surface	Gloss
Display diagonal	15.6 \
Touch technology	Multi-touch
Display brightness	200 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
Maximum graphics card memory	1.98 GB
On-board graphics card model	AMD Radeon HD 7400G
On-board graphics card family	AMD Radeon HD 7000
Audio system	Dolby Advanced Audio
Speakers manufacturer	Altec Lansing
Front camera resolution	1280 x 720 pixels
Data network	Not supported
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Keyboard layout	-
Pointing device	Touchpad
Operating system installed	Windows 8
Operating system architecture	64-bit
Form factor	Clamshell
Product type	Laptop
Product color	Black
Country of origin	China
Battery life (max)	- h
Number of battery cells	4
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth	259 mm
Width	386 mm
Height	24 mm
Weight	2100 g
