Power connector cable
NOTE: The power connector cable is included in the Cable kit on page 31, part number
599525-001.
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45).
5. Remove the following components:
a. Switch cover (see
Switch cover on page 47)
b. Keyboard (see
Keyboard on page 49)
c. Fan and heat sink (see
Heat sink and fan on page 70)
d. Speakers (see
Speakers on page 56)
Remove the power connector cable.

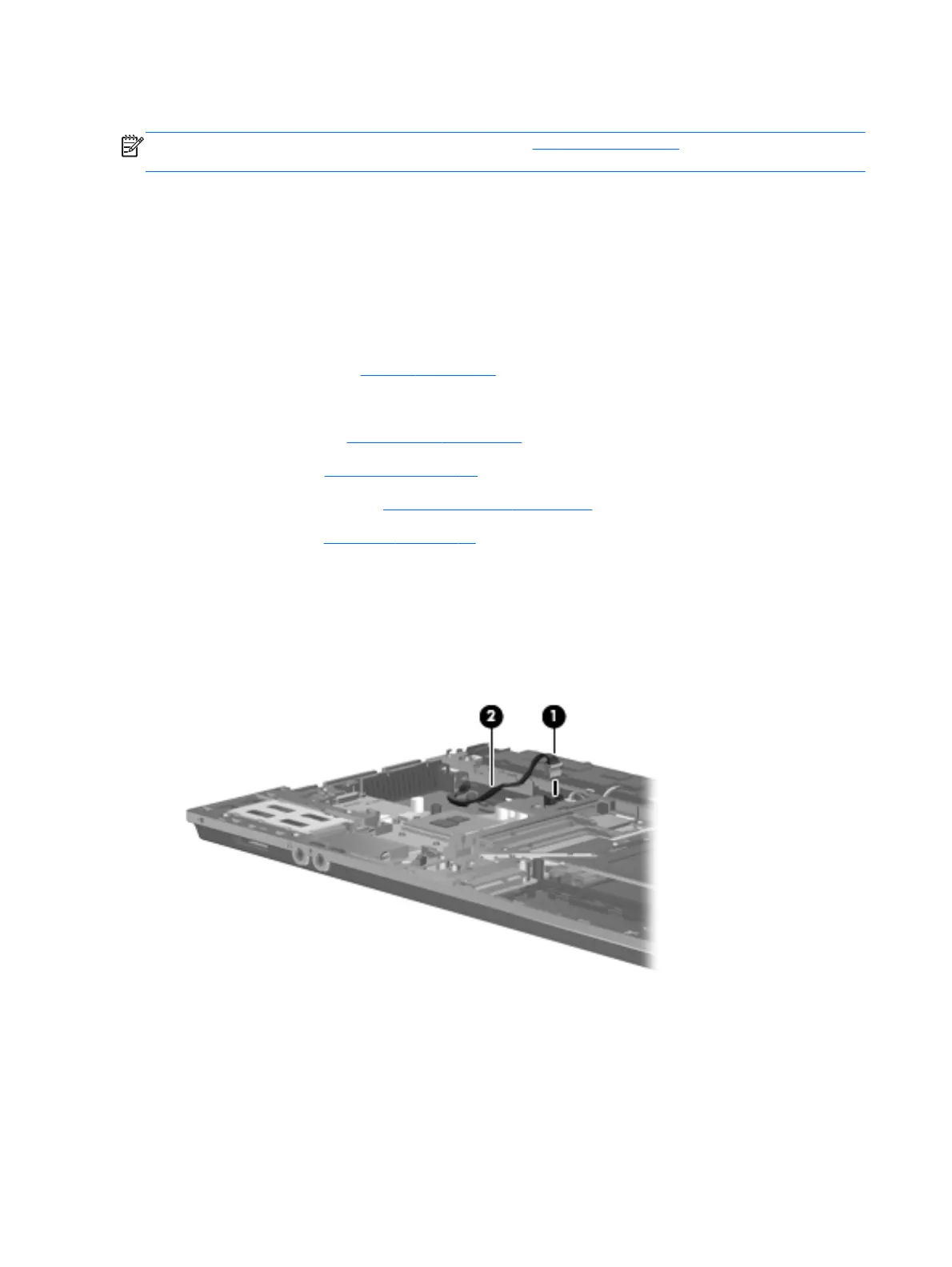

1. Position the computer right-side up with the front toward you.
2. Release the power connector cable from the system board (1).
3. Remove the modem cable (2) from the routing in the base enclosure.
4. Remove the power connector cable
Reverse this procedure to install the power connector cable.
76 Chapter 4 Removal and replacement procedures
