Introducing the ProCurve Series 5400zl Switches
Front of the Switch
Introducing the ProCurve
Series 5400zl Switches
Front of the Switch

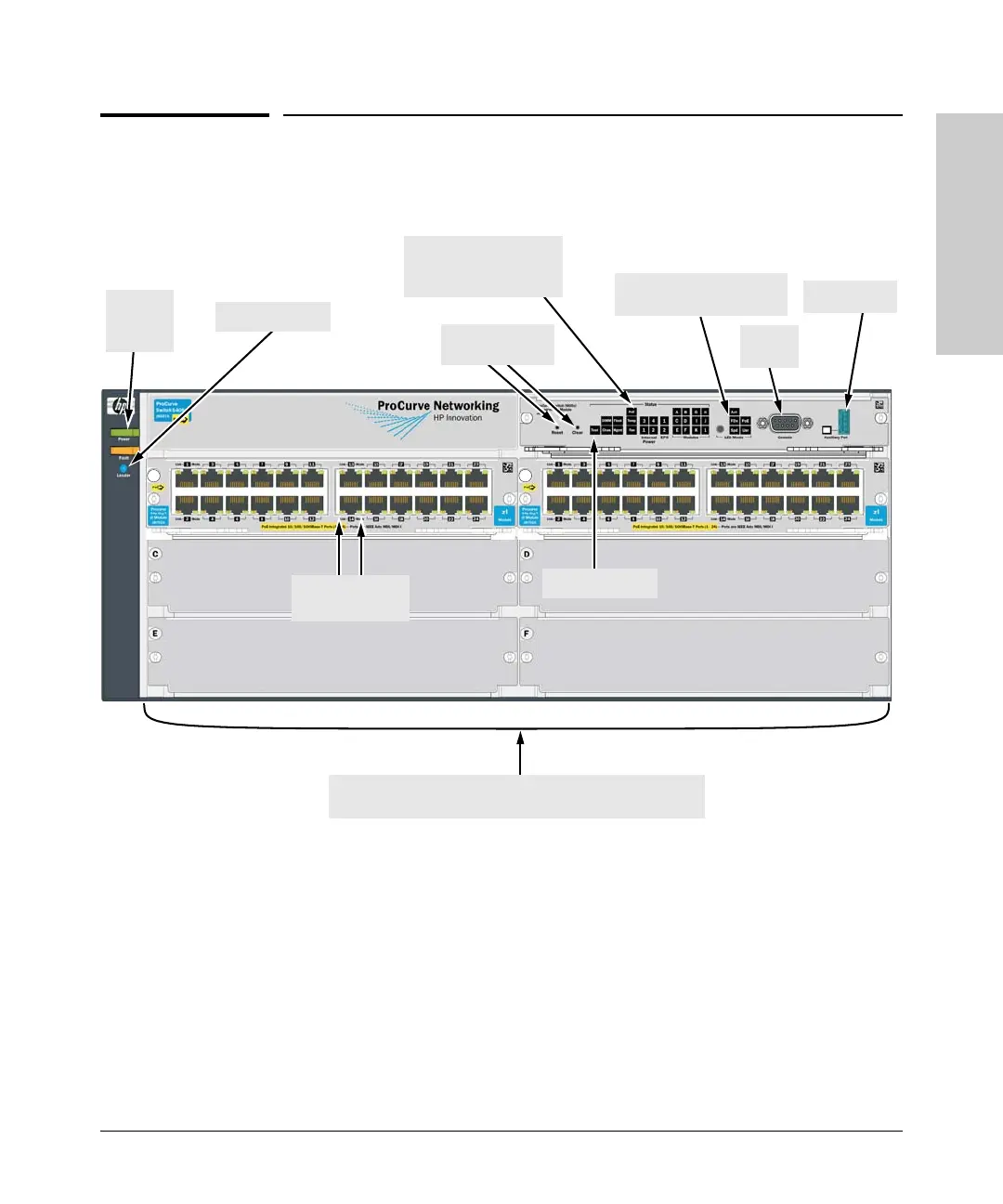

Figure 1-3. Front of 5406zl-48G Switch
This illustration shows the 5406zl-48G (J8699A), but the labeling and descrip-
tions apply to all of the ProCurve Series 5400zl switches.
A
B
LED Mode Select button
and indicator LEDs
Switch Modules and slots
with Link and Mode LEDs for each port located on each module
Power
and Fault
LEDs
Locator LED
Status LEDs for the
Fans, Power Supplies,
and Switch Modules
Reset and Clear
buttons
Auxiliary Port
Console
Port
Module Link
and Mode LEDs
Self Test LED
