3-2
Planning and Implementation for the Series 3500yl Switches
Planning Your PoE Configuration
Planning and
Implementation for the
Series 3500yl Switches
ProCurve 3500yl-24G-PWR Configuration
The table in this example configuration contains entries that show the PoE
power available for the 3500yl-24G-PWR.

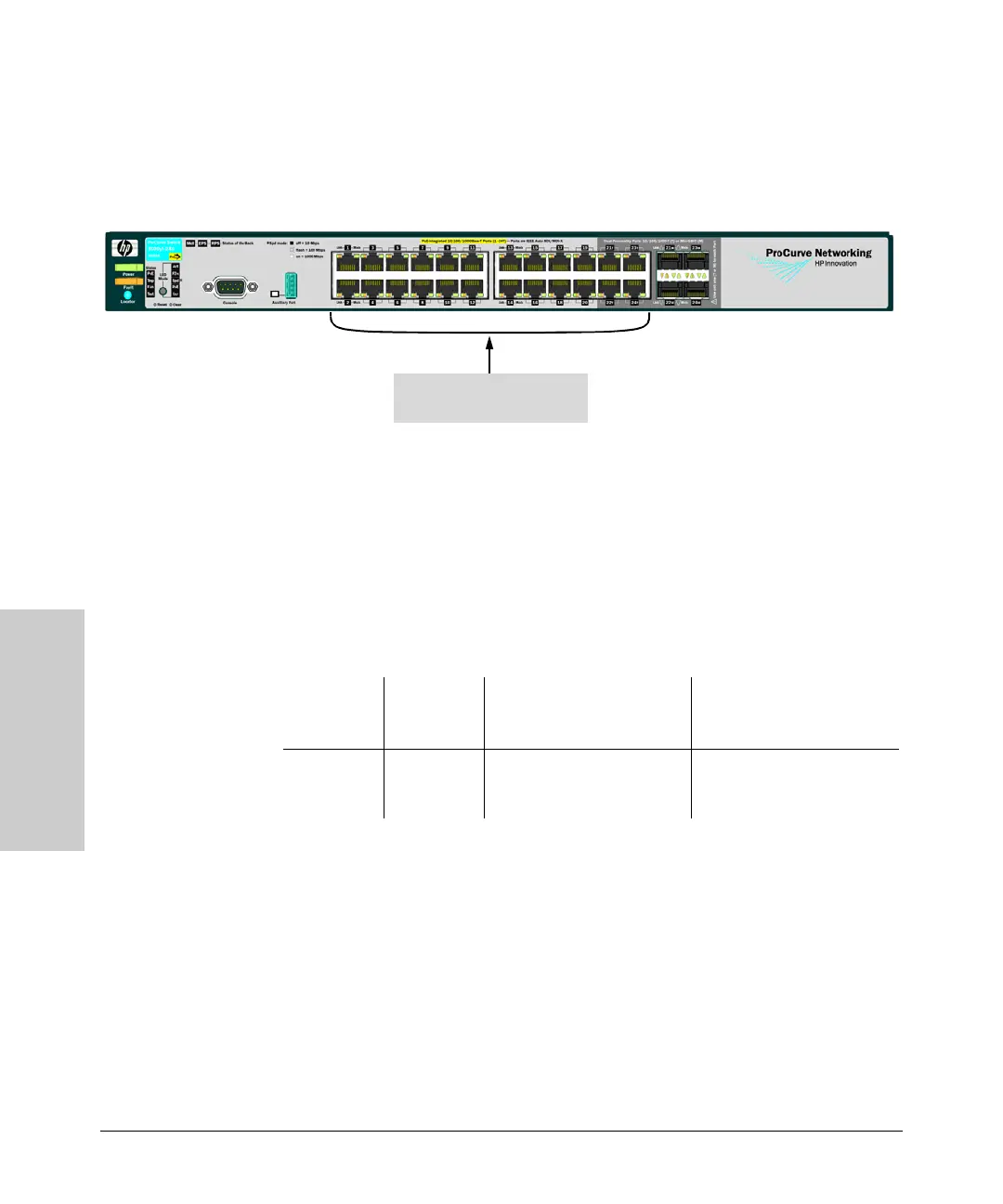

Figure 3-1. Example of a 3500yl-24G-PWR Switch
If any of the mini-GBIC ports are used (21-24) the corresponding RJ-45 port
will not be supplied with PoE power. Therefore that needs to be taken into
consideration when planning per port PoE wattage.
If for example, port 24 is used for a mini-GBIC, then the RJ45-port 24 is
disabled. Therefore the PoE power that was being supplied to the RJ45-port
24 is returned to the total available pool of PoE power.
All 24 ports can receive up to 15.4
watts of PoE power
Source of
Power
Watts
Available
# of Ports Powered and
Average Watts/Port
Redundant # of Ports
Powered and Average Watts/
Port
Internal PoE
Power
Supply
398 24 @ average 15.4 W each for
a total of 369.6 W
None
